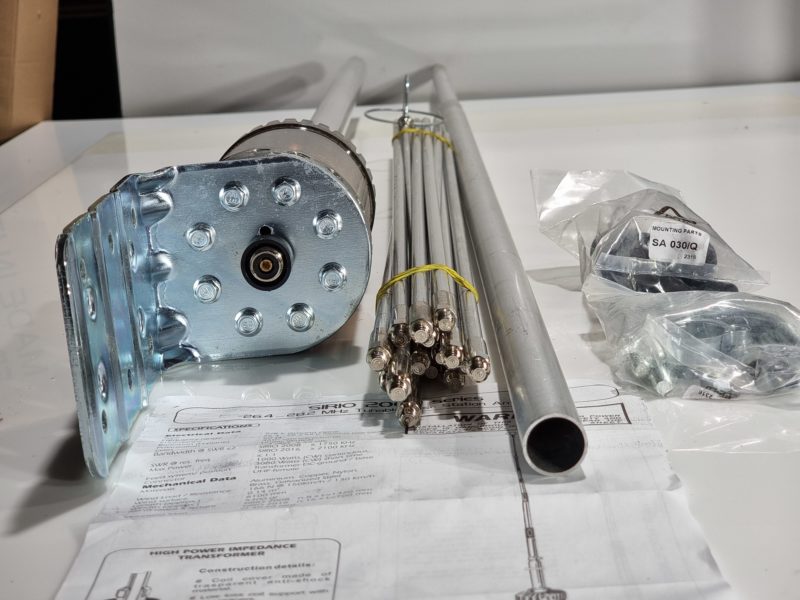

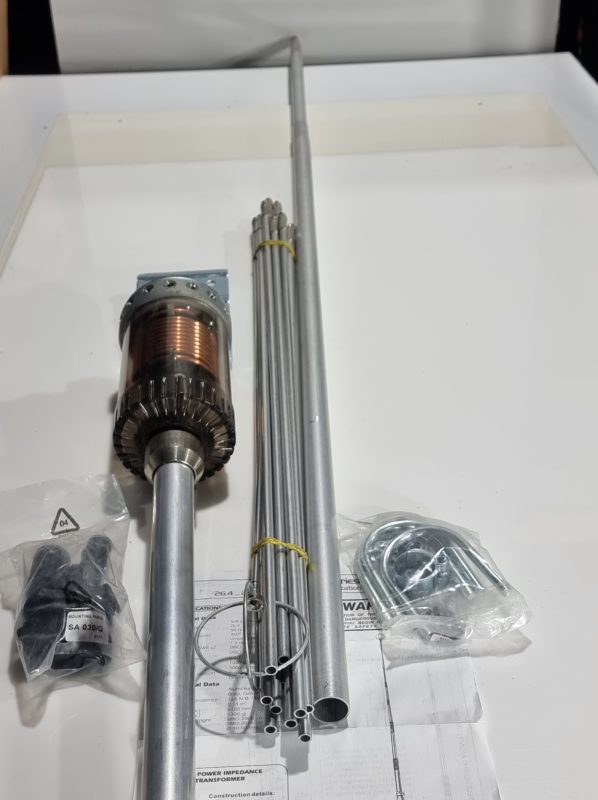

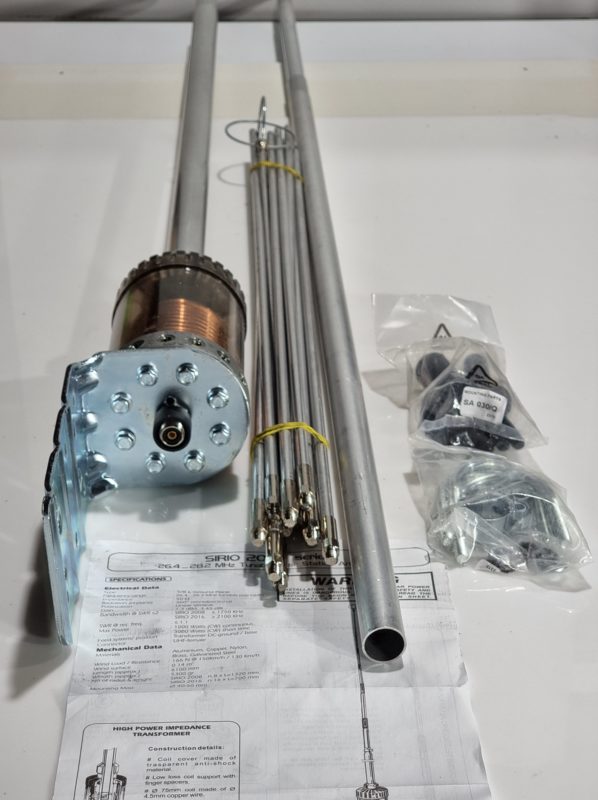

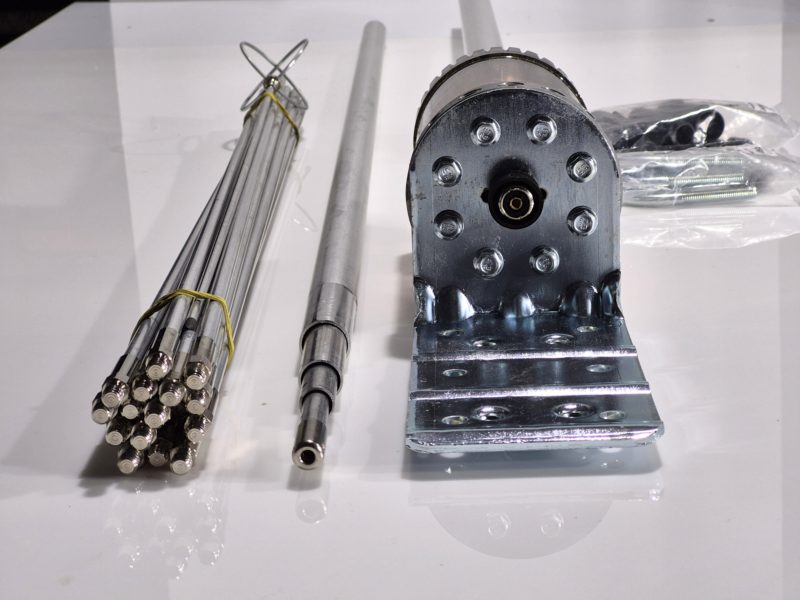

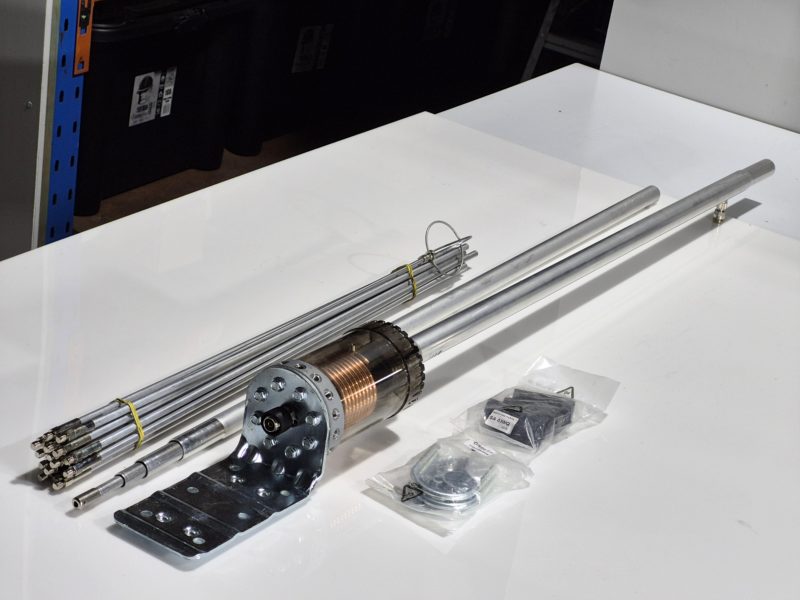

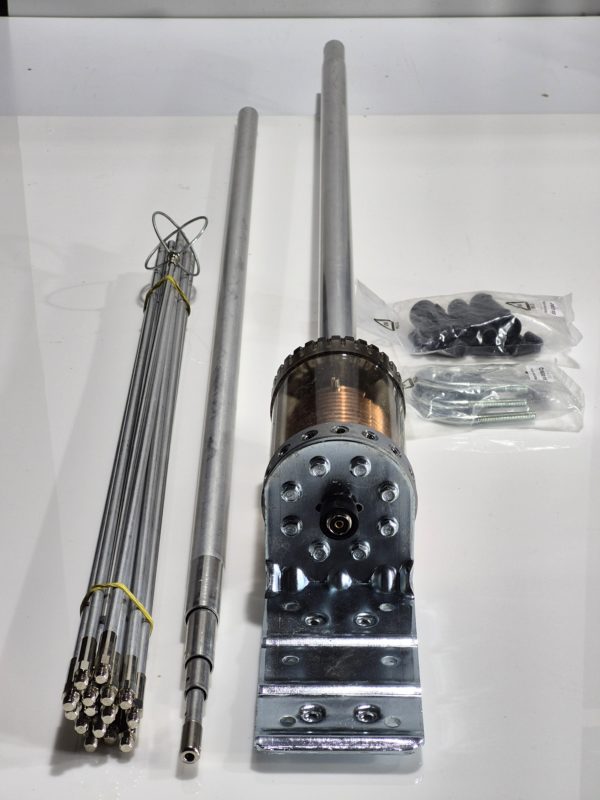

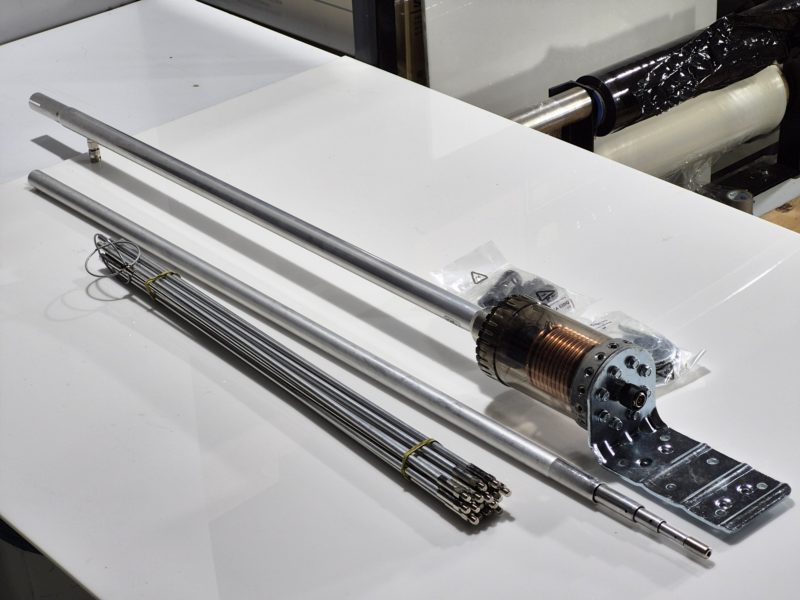

Sirio S-2016 5/8 Wave Vertical Base Antenna

$379.00

Category:

Description

S-2016: This is a high quality base station antenna tunable from 26.4 to 28.2 Mhz. Comes with high power impedance transformer. The coil is protected by a transparent cover, whilst the main radiating element has a waterproof jointing sleeve. For maximum efficiency the antenna uses a multi element ground plane. Water proof, strong and easy to install, they allow very good links! High power handling capability – Low radiation angle for excellent DX.

Features:
Base station antenna, Omnidirectional
High power handling capability
Low radiation angle for excellent DX
Coil protected by transparent cover.
Whip equipped with waterproof jointing sleeve
Equipped whit excellent multi element ground plane
Protection from static discharges DC-Ground
Made of aluminum alloy 6063 T-832..

Specifications:
Type: 5/8λ ground plane
Frequency range: 26-29 MHz
Impedance: 50Ω unbalanced
Radiation (H-plane): 360° omnidirectional
Polarization: linear vertical
Gain: 1.3 dBd, 3.45 dBi
Bandwidth @ SWR ≤ 2:
SIRIO 2016: ≥ 2100 KHz (190 channel)
SWR @ res. freq.: ≤ 1.1
Max. power: 1000 Watts (CW) continuous / 3000 Watts (CW) short time
Feed system / position: Transformer DC-ground / base
Connector: UHF-female..
Mechanical Data:
Materials: Aluminum, Copper, Nylon
Wind load / resistance: 166 N at 150 Km/h / 130 Km/h
Wind surface: 0.14 m
Height: 6100 mm
Weight: 5300 gr
Radial length: 700 mm
Mounting mast: 40-50 mm.

Construction details:
UHF-female connector with protection cap.
Coil cover made of transparent anti-shock material.
Low loss coil support with finger spacers.
Ø 75mm coil made of Ø 4.5mm copper wire.
Discharge holes for possible condensations.
TUNING TABLE:
Freq. (MHz)
26.4
27.0
27.185
27.5
28.0
28.2.
