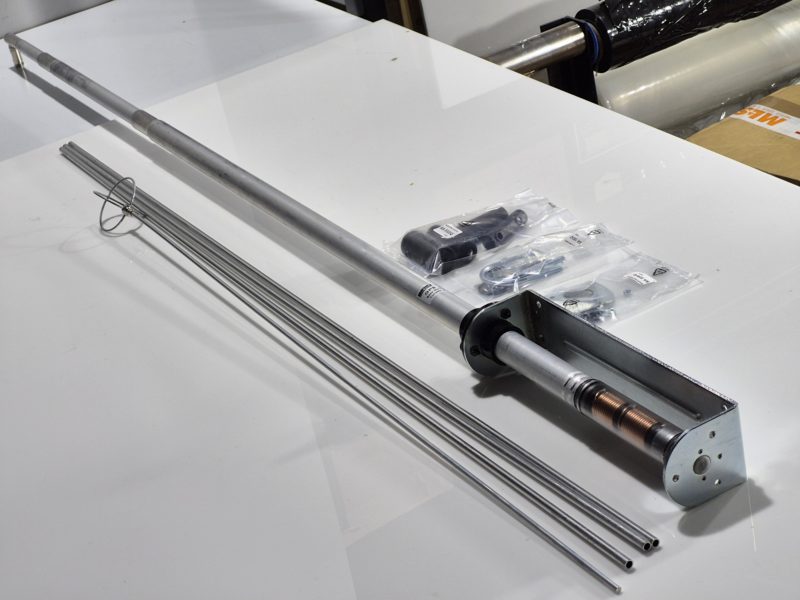

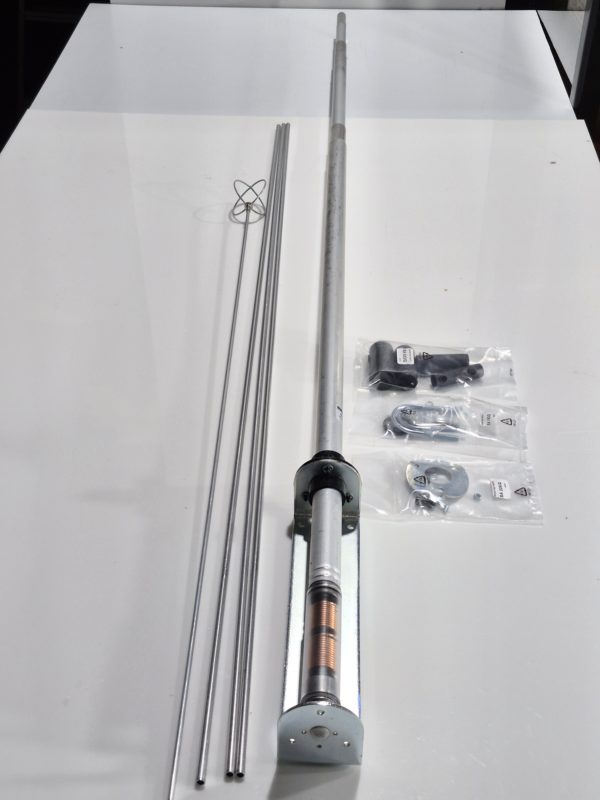

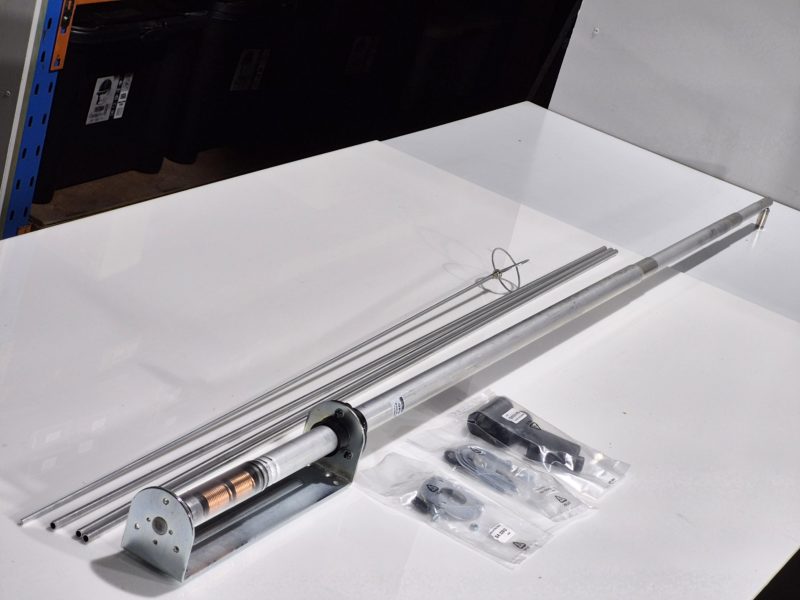

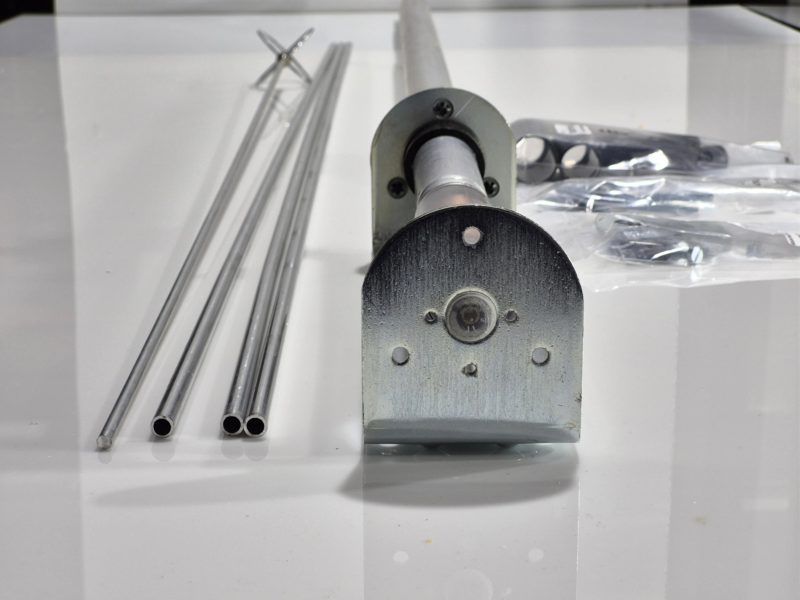

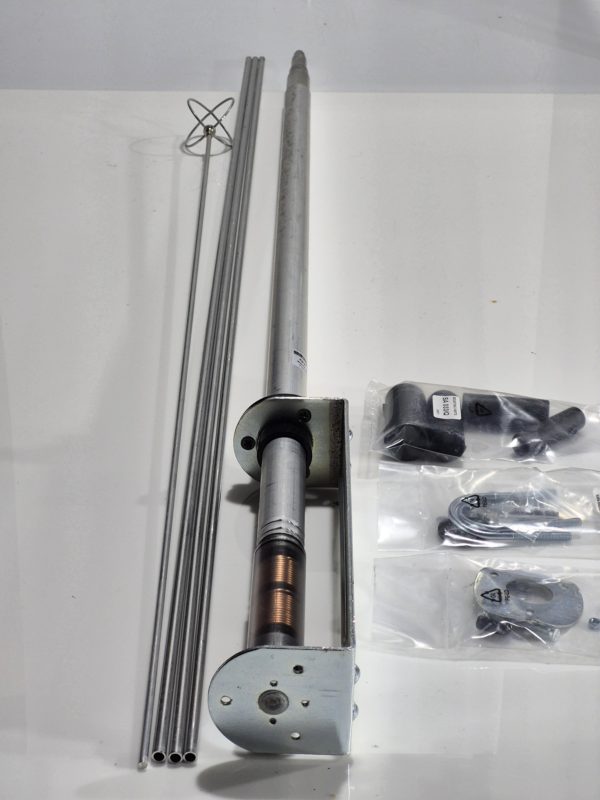

Sirio GPE-27 5/8 Wave Vertical Base Antenna





GPE-27: This is a good antenna for the novice CB’er just getting his feet wet in CB Radio. Or for the CB’er that is wanting to try out the advantages of an aluminum antenna over the fiberglass one’s. Or even for the longtime CB’er who just needs a good 5/8 wave antenna, but not the “Big Power” handling. It’s light, and easy to set up. Best feature is it doesn’t break the bank!

CB or 10 Metre Ham Band Base station antenna, Omni-directional
Factory tuned at mid-band
Low radiation angle for excellent DX
Coil protected by transparent cover
Whip equipped with waterproof jointing sleeve
Made of aluminium alloy 6063 T-832
Protection from static discharges DC-Ground

Type: 5/8 ground plane
Frequency range: 26.5-29 MHz
Impedance: 50 Ohms unbalanced
Radiation (H-plane): 360 deg omni-directional
Polarization: vertical
Gain : 1.2 dBd, 3.35 dBi
Bandwidth at S.W.R. 2:1: 1400 KHz
S.W.R. at res. freq.: = 1.2:1
Max. power : 250 Watts (CW) continuous, 750 Watts (CW) short time
Feed system / position: Transformer DC-ground / base
Connector: UHF-female

Mechanical Data:
Materials: Aluminium, Steel, Copper, Nylon
Wind resistance: 130 Km/h
Wind load: GPE 27 5/8: 188 N at 150 Km/h
Wind surface: GPE 27 5/8: 0.12 m²
Length (approx.) : 5950 mm
Weight (approx.): 2500 gr
Vertical 5/8 wave antenna adjustable from 26.4 to 30 MHz
3 Radials each length (approx.) : 1320 mm GPE 5/8 ONLY
Mounting mast: 35-42 mm
