Gain-Master-HW: New SIRIO Gain-Master HW (half-wave) 10M-HAM antenna This is the very latest version called the HW (half-wave) which is the smaller version of the original 5/8 wave antenna. This new model is just 18 feet long and should be better for locations were high winds are an issue.
Gain-Master-HW is a Half Wave high tech fiberglass base station antenna for 10m to 11m amateur band made of telescopic fiberglass tubes. Completely designed by electromagnetic simulation to achieve the maximum gain and optimize the radiation pattern and bandwidth.

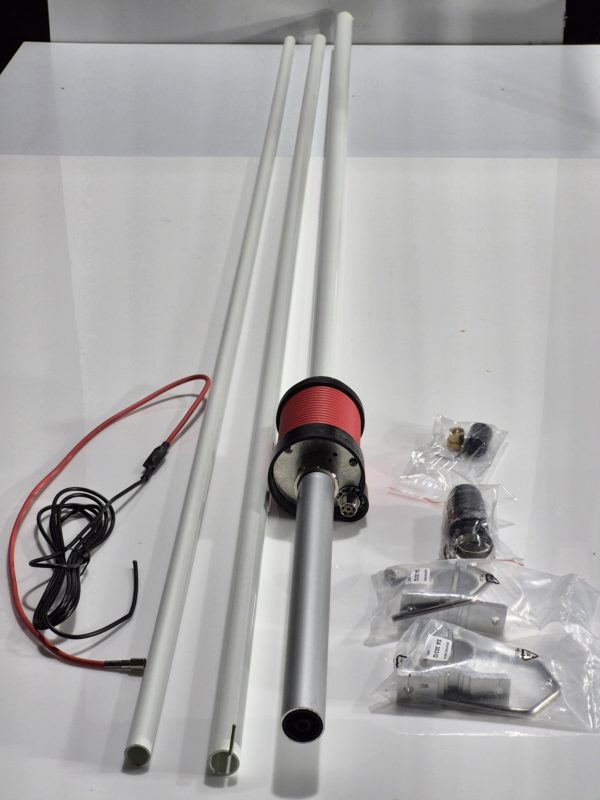

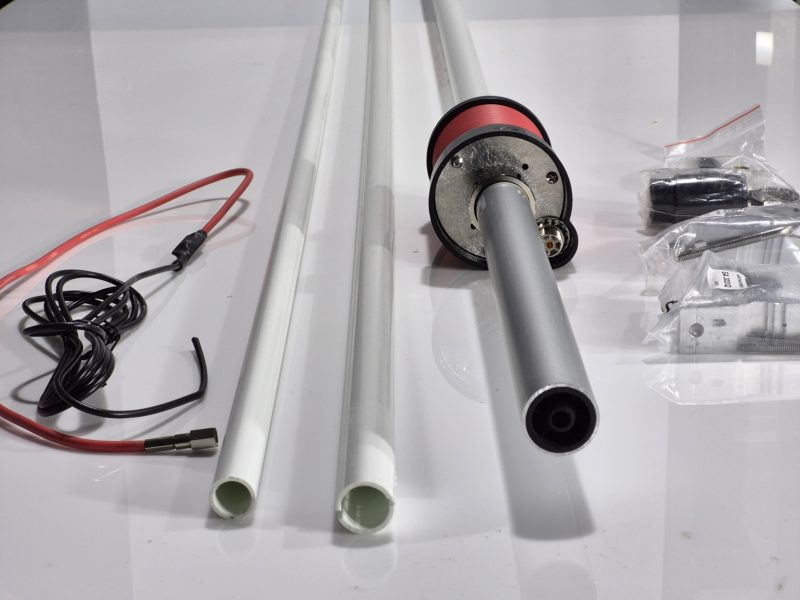

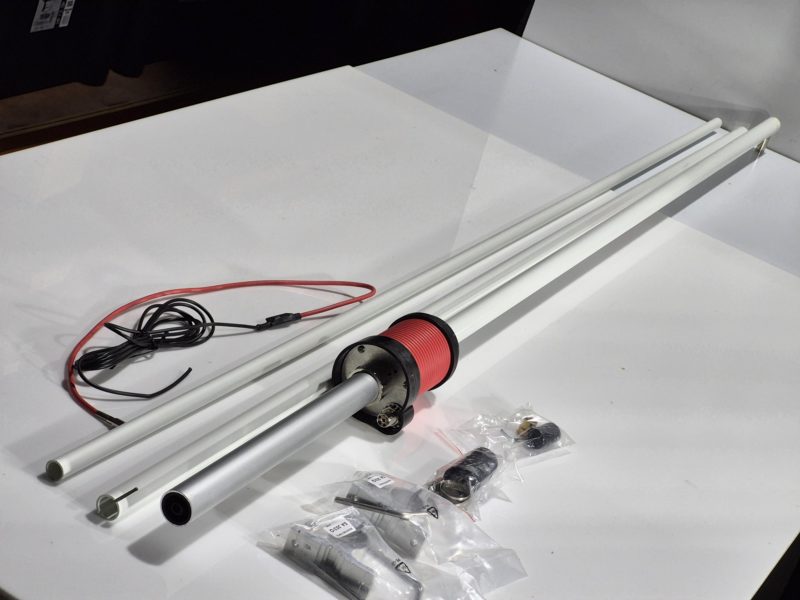

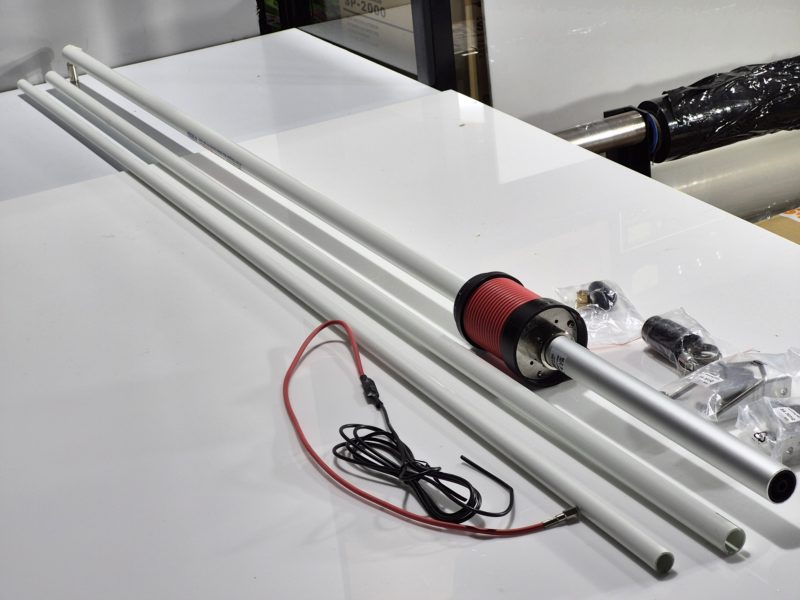

Engineered with the most advanced available technologies it is completely manufactured in Italy with high quality materials. The design of the radiant element works like a central feeder dipole so all RF currents on the radiator are in-phase and the ground plane radials are not necessary. The coaxial coil at the bottom works like RF-Choke for the optimum decoupling from mast and feeding line.
Features / Specifications:
Base station antenna: Omnidirectional
Type: 1/2 λ center feed vertical dipole
Low radiation angle for excellent DX
Fiberglass 3-Section composite tube
Frequency range: 27.2 – 30.0 MHz tunable (26.3 – 31.0 MHz ≤ 2.0)
System: 10M-HAM
Radiation : Omnidirectional
Polarization: Linear horizontal
Gain: 0 dBd, 2.15 dBi
Bandwidth: @ SWR ≤ 2: ≥ 1800 KHz @ 27.2 MHz
Max. power: 500 Watts (CW) continuous
Impedance: 50Ω
Feed system / position: Transformer DC-ground / base
Antenna connector: UHF-female, PTFE insulator & gold plated central pin
Materials: Anodized Aluminum, Copper, Stainless steel, Fiberglass, Thermoplastic UV stabilized
Height (approx.): 5560 mm / 18.24 ft
Weight (approx.): 2600 gr / 5.73 lb
Mounting type: On mast
Wind Resistance: Up to 160 Km/h; 100 mi/h
NOTE: High quality fiberglass encapsulated 1/2 base antenna. For the most demanding users. A new concept in antennas. Higher performance. 10m-Ham / CB 27MHz
