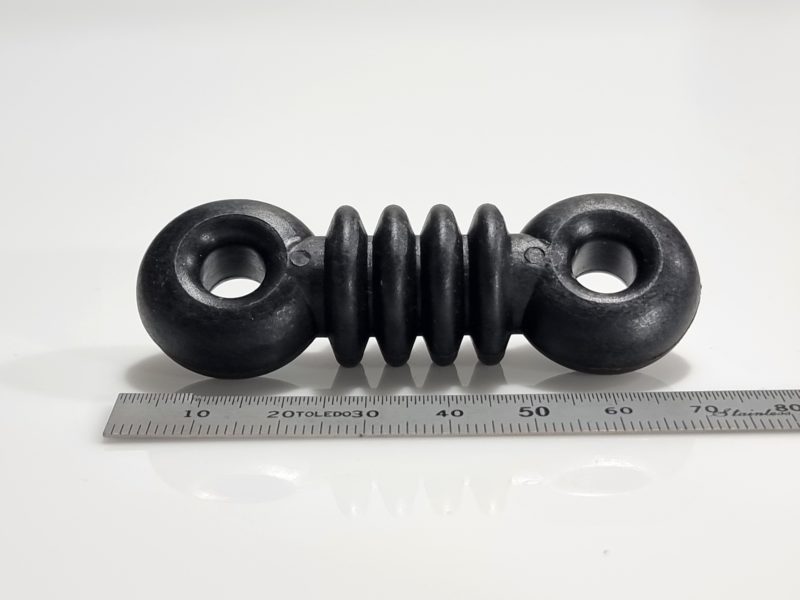

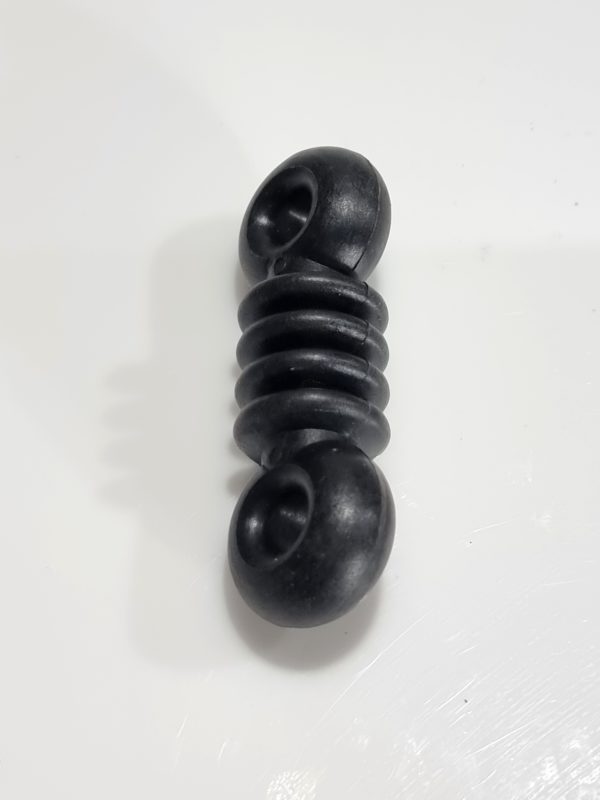

Sigma Dog Bone Insulator For Wire Antennas



INSUL-8M: Antenna insulators are essential components in the field of telecommunications. They serve the purpose of isolating the antenna from its supporting structure, preventing electrical current from flowing through unwanted paths. These insulators are typically made from materials such as porcelain, glass, or plastic, which possess high dielectric strength. This ensures that they can withstand the high voltages and electrical stress that may be present in the antenna system. Additionally, antenna insulators are designed to be weather-resistant, as they are exposed to various environmental conditions. They must be able to withstand extreme temperatures, humidity, and UV radiation without deteriorating or losing their insulating properties.

Features / Specifications:
Ideal for antenna projects such as G5RV and long wire antennas
Insulator for wire antennas made of thermoplastic resin
Great for high power (or low power) situations
Type: Standard medium black ribbed insulator
Weight: 30 grams
Length: 73 mm
Diameter: 25 mm
Holes: 8 mm
Colour: Black
