Description

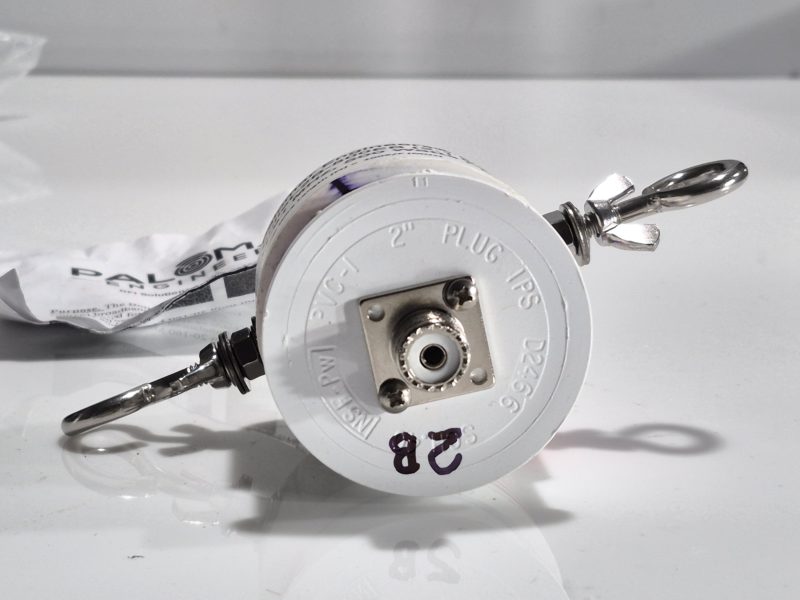

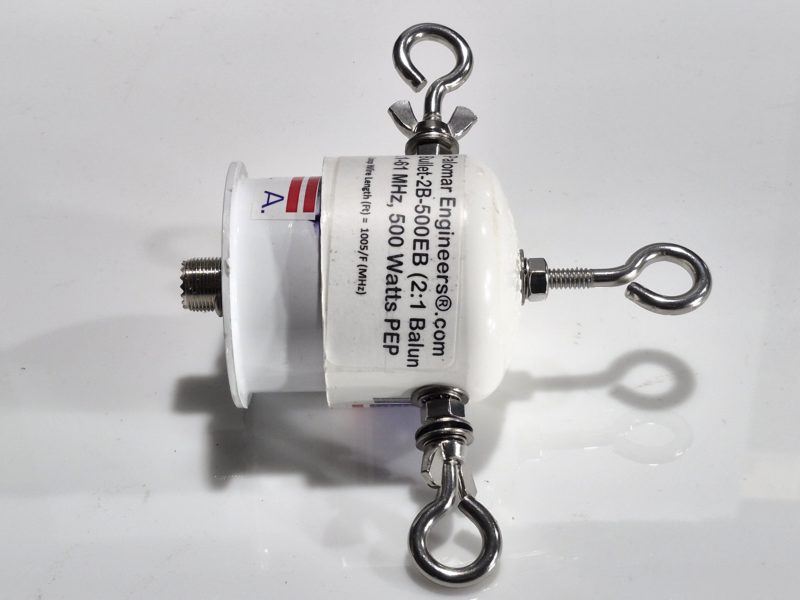

2B-500EB: The Bullet-2B is a multi-core Balun with a compact enclosure (looks like a bullet) enclosure that is lightweight and easy to transport for your portable loop antenna solution. Halyard hoist at top of Balun for convenient attachment point. Input is via SO-239 coax connector and output with side eye bolt output. Rated 500 Watts PEP Watts from 1.8-61MHz. DC grounded to coax shield for static bleed off.
This transformer requires a feed line choke at the Balun to isolate the coax feed line from the antenna. A coax noise filter is also recommended at the radio end of the coax..
Loop antennas are some of the best radiating and receiving antennas you can make. They can be in a triangle (called a delta loop), square or rectangle or even a circle. Horizontal loops can be fed anywhere that is convenient.
This transformer requires a feed line choke at the Balun to isolate the coax feed line from the antenna. A coax noise filter is also recommended at the radio end of the coax..
Specifications:
Input ohms/Output ohms: 50 in, 100 out
Frequency Range: < 2:1 SWR (MHz): 1.8 -61MHz < 2 SWR
PEP Power Rating: (watts): 500/1500
Input Connector: SO-239
Output Connector(s): Side Eyebolts
Hardware Type: Stainless Steel
Weight (pounds): 1
Antenna Compatibility: Full Wave Loop
Manufacture: USA
NOTE: We rate our Bullet Baluns (and UNUNS) VERY conservatively at 500 watts PEP with a 50% duty cycle. Some manufacturers selling low cost Baluns may use a 5% duty cycle for their PEP rating to make it appear you get a higher rated Balun for a lower price, but you may in fact be getting be getting less. Their 1500 watts PEP really means 75 watts continuous or 150 watts at a 50% duty cycle compared to our 250 watts at 50% duty cycle. Our Baluns typically cover a larger frequency range under 2:1 SWR which make your transceiver happy and probably will last longer with less electrical stress.
Remember we over engineer our products, to out perform our competition – just compare the weight of our Baluns to theirs and you will know we put much more into our products so you don't have to worry about failure at a critical moment.
