MAT mAT-30 Automatic Antenna Tuner For Yaesu

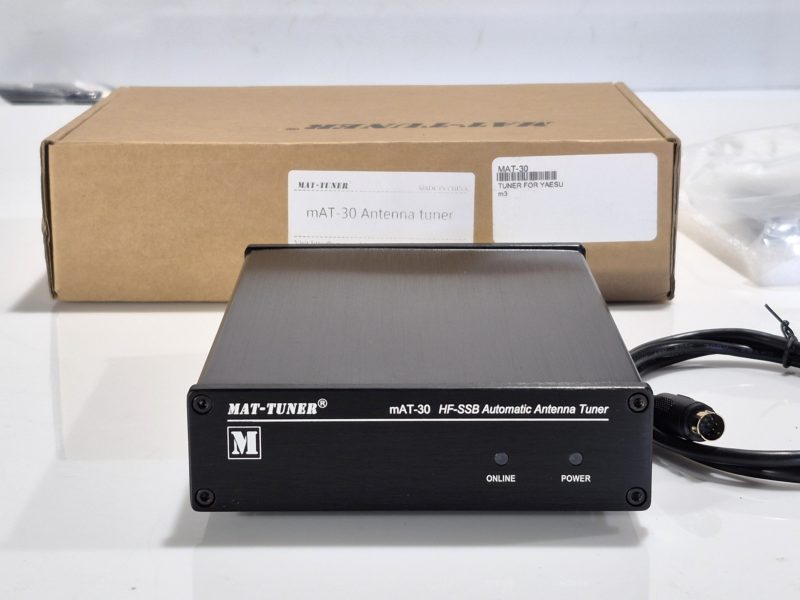

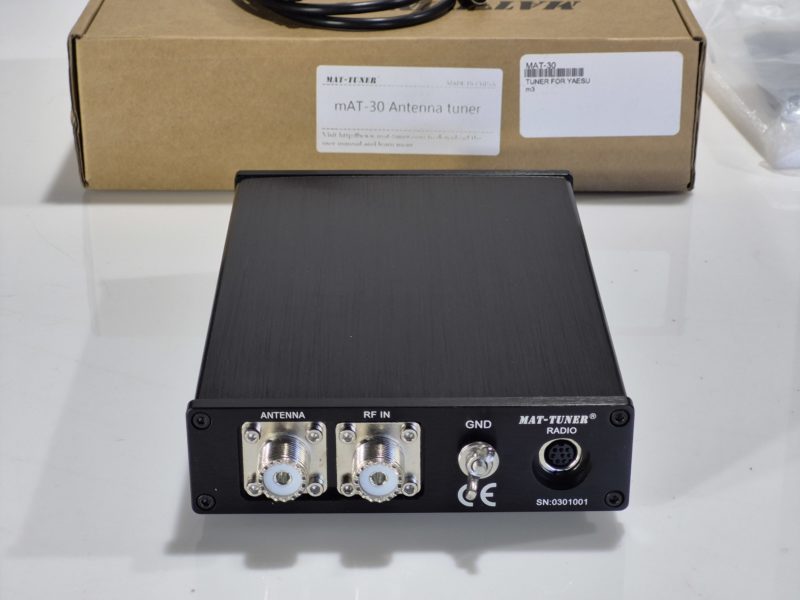

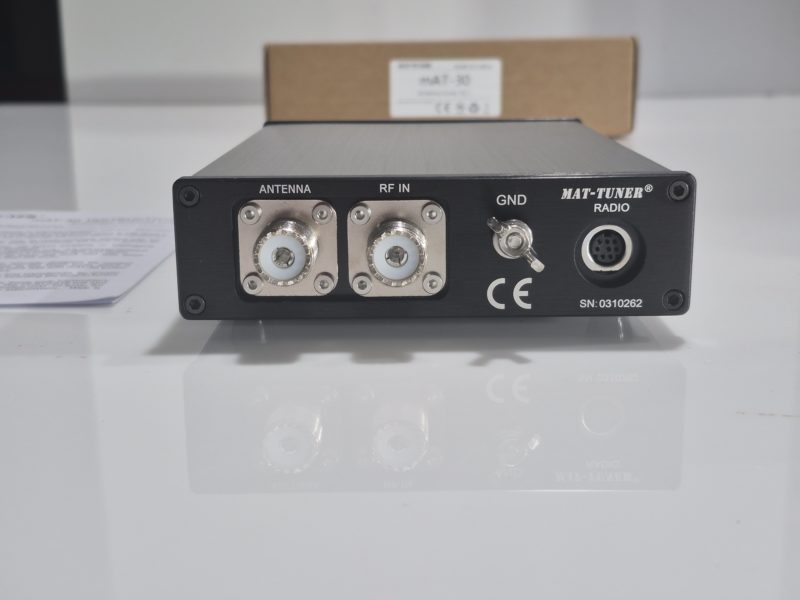

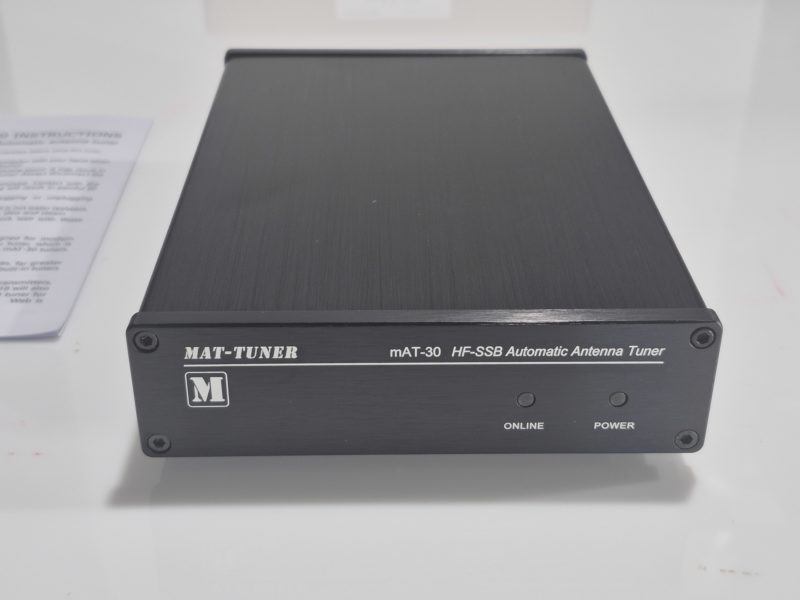

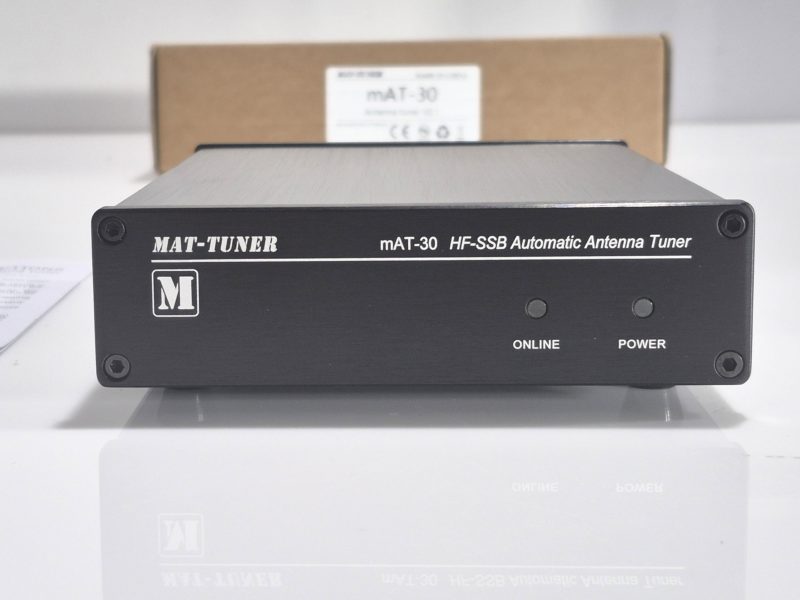

mAT-30: Is engineered to integrate with Yaesu transceivers. The mAT-30 connects to the transceiver via its CAT/LINEAR jack to control the tuning cycle, the transceivers Tune button controls the tuner. The CAT/LINEAR jack also powers the tuner, so it requires no external power supply. Tuning is performed when the TUNE button is pushed on the front of the transceiver and held for one second.

The mAT-30 can work within the range of 1.6MHz to 54MHz, at power levels up to 120 watts. It will tune dipoles, verticals, Yagi’s, or virtually any coax-fed antenna. It will match an amazing range of antennas and impedances, far greater than some other tuners you may have considered, including the built-in tuners on many radios.

The mAT-30 has 16,000 frequency memories. When tuning on or near a previously tuned frequency, the mAT-30 uses “Memory Tune” to recall the previous tuning parameters in a fraction of a second. If no memorized settings are available, the tuner runs a full tuning cycle, storing the parameters for memory recall on subsequent tuning cycles on that frequency. In this manner, the mAT-30 “learns” as it is used, adapting to the bands and frequencies as it goes.

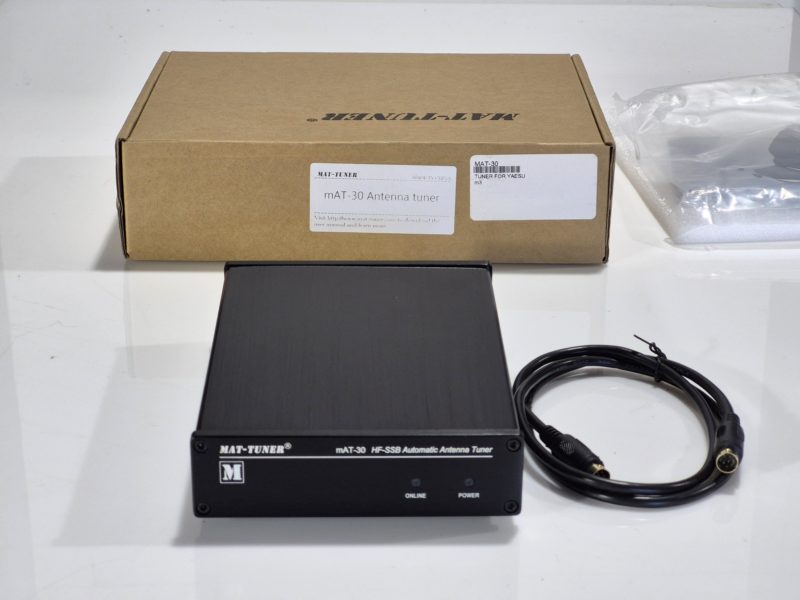

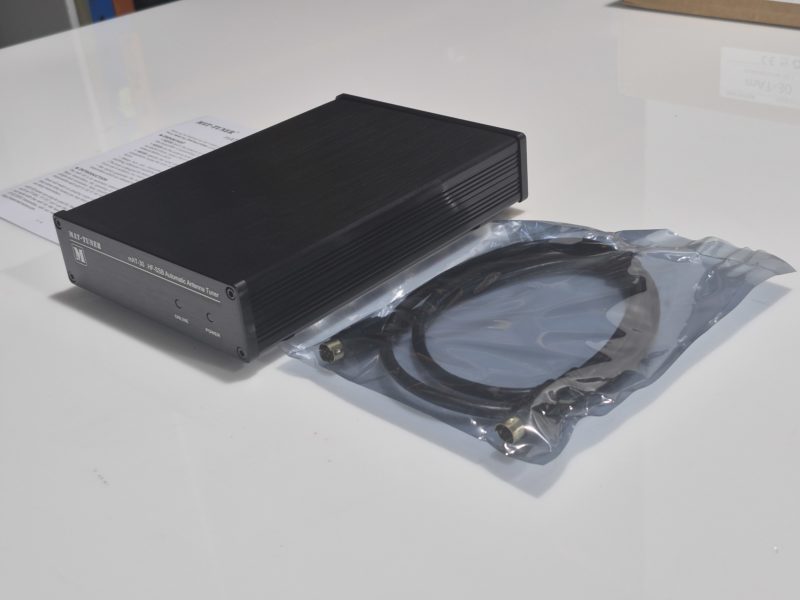

The mAT-30’s control cable mAT-CY provides control signals between YAESU transceiver and the tuner. As the figure shows, the control cable have two mini-DIN 8-pin plugs. mAT-CY can also be used by mAT-10 to link YAESU FT-817/818. Push and hold the transceiver’s [TUNER] button for two seconds to start the tuning process. Push [TUNER] quickly to bypass the tuner.

The supplied transceiver control cable is 50 centimeters long. If it is desired that the mAT-30 is positioned farther from the transceiver than this cable length allows, a custom cable will need to be constructed. This can be accomplished in two ways: Cut the supplied cable and solder a jumper wire between all the connections, or purchase new connectors and cable to construct a custom- length control cable from scratch.

0.1 to 120 watts SSB and CW, 30 watts max continuous duty key/down digital modes on HF. Max 100 watts 50 MHz and above.
1.8-54 MHz continuous coverage
16,000 frequency memories
5 to 1500 Ohms matching range
Tuning time: 0.1 to 5 seconds for full tuning cycle, 0.1 second to return to previous memory setting
Control from Yaesu transceivers that have FC-30, FC-40, interface capability via supplied cable
Controlled from Yaesu TUNE button on radio. Powered from Yaesu radio.
Dimensions: 20 x 13 x 4cm (L x W x H)

NOTE: Compatible units includes: FT-100, FT-857D, FT-897D, FT-450D, FT-891, FT-950, FT-991, FT-991A, FTDX-3000. The operating is the same as the method of the YAESU tuner, which is simple and convenient.
