Description

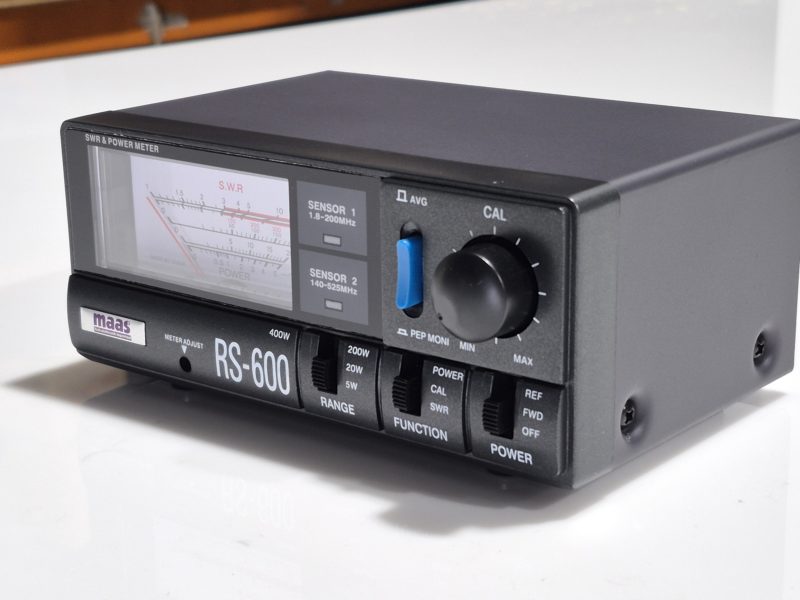

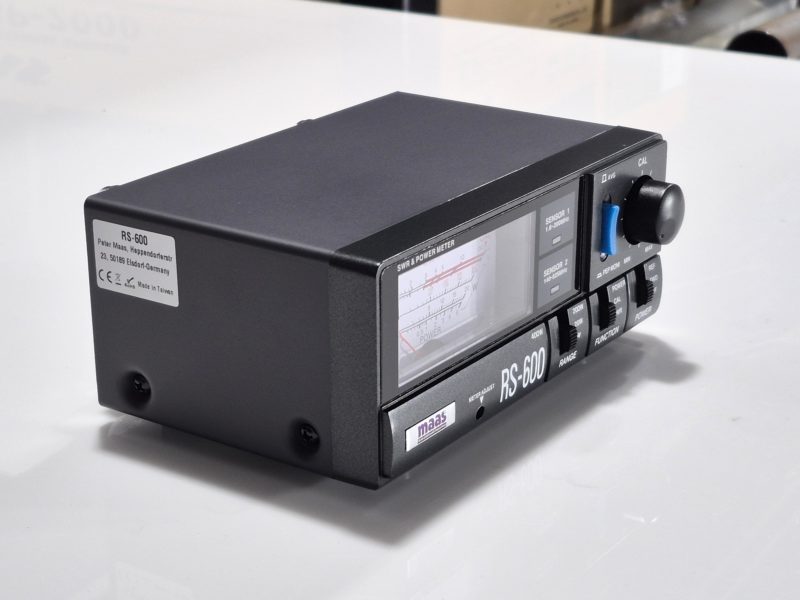

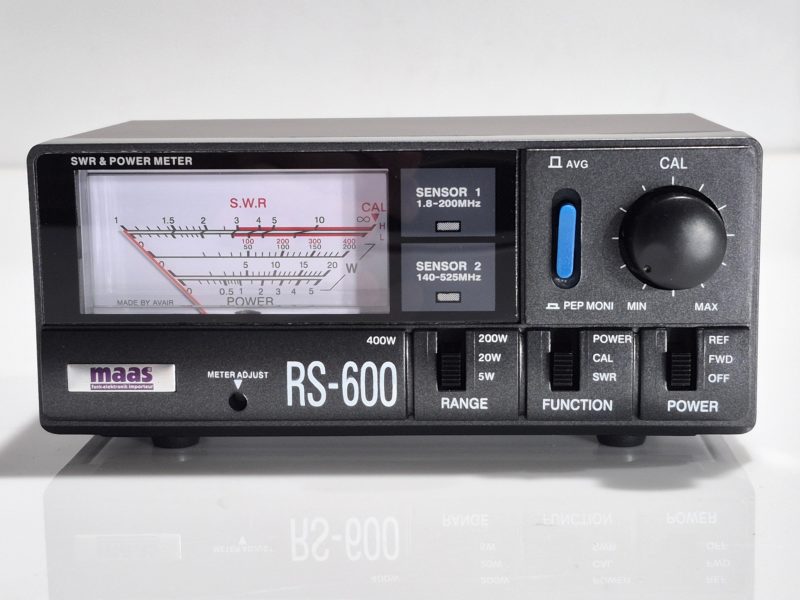

RS-600: The Maas RS-600 is a rugged SWR and power meter ideal for radio amateurs who require accurate measurements. With a frequency range of 1.8 – 160 MHz and 140 – 525 MHz, and a power of up to 400 Watts, this meter offers versatility and reliability. The backlit display makes it easy to read measurements, while the various measurement accuracies (up to +/-12.5%) ensure reliable results. Thanks to the durable metal housing and compact design, the Maas RS-600 is perfect for both hobbyists and professionals looking for a reliable SWR and Watt meter.
Specifications:
Frequency: 1.8 to 160Mhz / 140 to 525 MHz
Power ranges: 400W maximum (5W / 20W / 200W / 400W)
Connector: N Female
SWR power Minimum test: 0,5W
Maximum power handling: 400 Watts 25 sec on, 35 sec off
Illuminated display (delivered with 12v power cord)

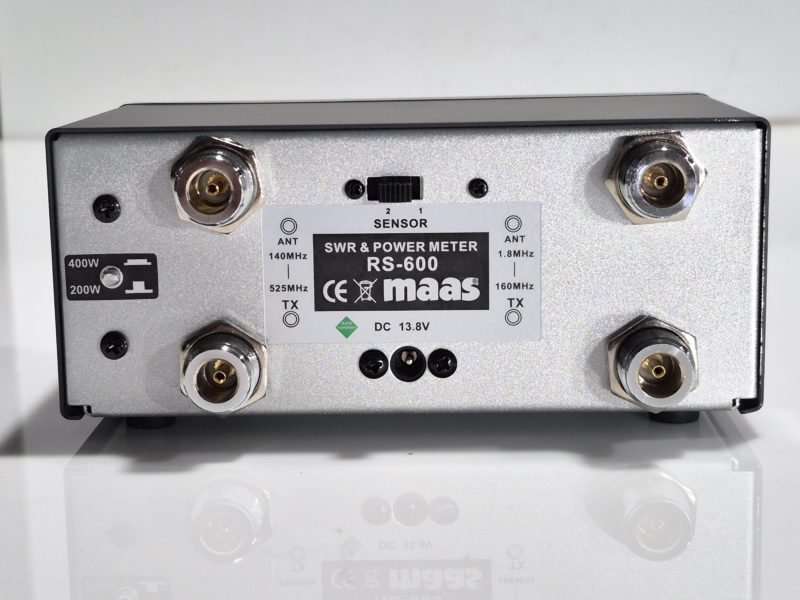

Input connector: 2 x N Female
Output connector: 2 x N Female
Dimensions Length: 150 mm / Height: 65 mm / Width: 100 mm
Weight 780g
Precision range @ 5W : +/- 5%
20W : +/- 7.5%
200W : +/- 10%
400W : +/-12.5%
