Description
SPA-8350: This range of super efficient power supplies delivers long term cost savings in energy costs, increased reliability, longer life and requires less warranty coverage. The zero voltage switching design reduces power dissipation in the switching transistors and the EMI level, resulting in a quiet (less switching noise) and cooler running power supply. It is especially suitable for telecommunications, long term use and in close proximity to other equipment. The circuit of the device is designed for the operation of radio devices and receivers and is also HF-proof and short circuit proof.
Features:
Operating voltage: 230 V AC / 50 Hz
Output voltage: 13.8 volts DC Fixed voltage
Fine tuning possible via trimmer 12 to 14.5 volts DC
Output current: Constant 35 Amps
Ripple & noise / Residual ripple & noise <50mVss, 5mVrms
Load regulation / Load regulation <100mV when load changes from 0-100%
Line Regulation / Regulation input voltage <20mV when the input voltage changes by +/-10%
Operating display via power switch

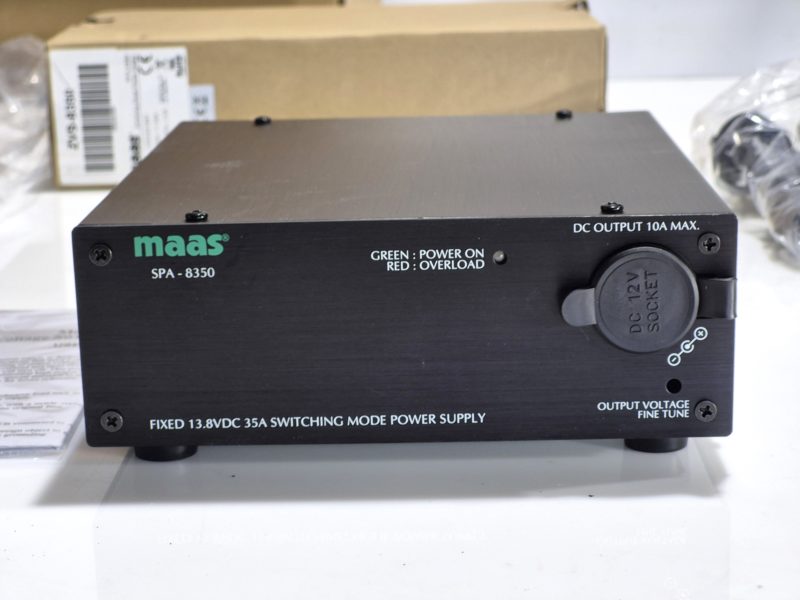

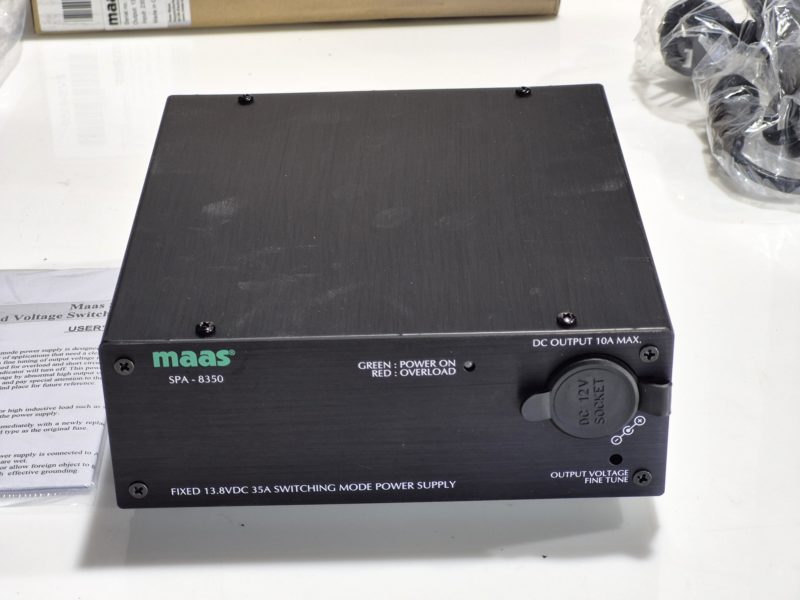

Two colour LED display on the front (red / green)
DC connection sockets

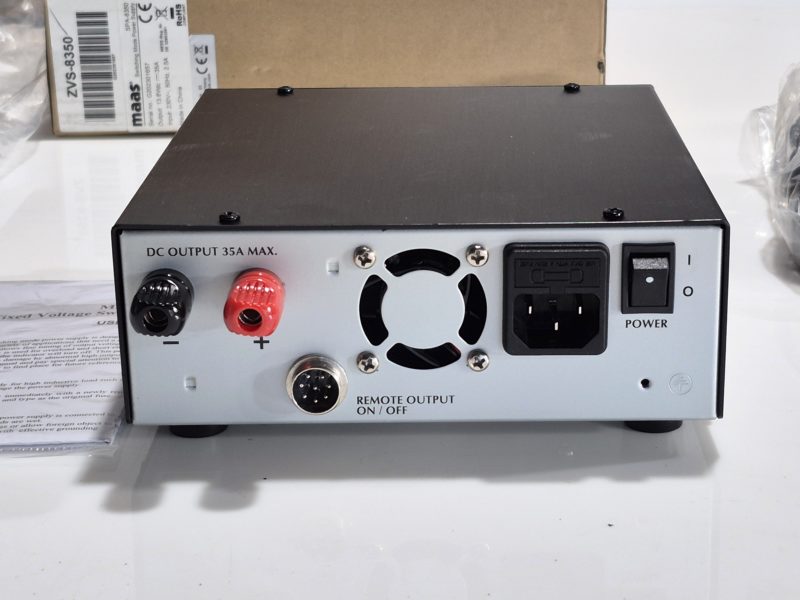

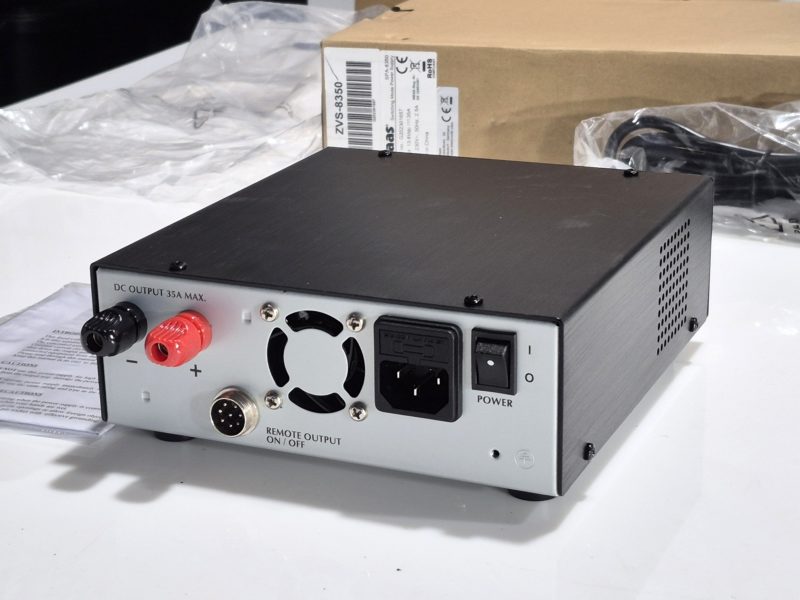

2 banana sockets 4mm in screw / clamp design on the back
Cigarette lighter socket on the front
Protection over current (over load)
Short circuit, Constant current (short circuit protections by constant current circuit)
Over voltage from 16.5V (output over voltage protection)
Over heating (over temperature)
Zero voltage switching technology
Specifications:
Input voltage: 230 Volt
Output voltage: 13.8 Volt
Adjustable output voltage: 12 – 14.5 Volt
Output current: 35 Amps
Ripple voltage: ≤50mVp-p
Load regulation: 100mV
Line regulation: 20mV
Short circuit protection: Yes
Overload protection: Yes
Over temperature protection: Yes
Output over voltage: Yes
Cooling method: Forced air cooling by variable speed cooling fan
Dimensions: (W x H x D) 175 x 72 x 196 mm
Weight: approx. 1.8kg (4Lbs)
