LDG Electronics Z-100A Automatic Antenna Tuner





Z-100A: The Z-100A features LDG’s famous 10:1 SWR tuning range that matches Dipoles, Verticals, End fed wires, G5RVs or even an Off center fed Windham. Easy integration means plug and play operation; installation could not be simpler. The Z-100A tuner goes anywhere with any HF radio… desktop, portable, parks, islands, or tall summits. LDG continues to set new standards for auto tuners and accessories in amateur radio service. LDG Electronics is a family owned and operated company dedicated to bringing innovative, quality products to the amateur market. Our focus is on anticipating and meeting our customer’s needs, and providing them with world class support.
Whether or not the Z-100A tuner is interfaced with the transceiver, it has an internal frequency counter and 2000 memories to store each operating frequency with antenna tuning parameters. Included with the Z-100A is the IC-104 DC power cable, as well as the three foot IC-100 Icom interface cable.
Optional interface cables are available for Yaesu, Kenwood and Alinco.

0.1 to 125 Watt SSB/CW, 30W Digital.
2000 memories for instantaneous band changing.
Controlled from Icom Tuner button on radio or Push button on Tuner.
Compatible with any Icom radio that is AH-4 or AH-3 compatible. (6M tuning from Tuner button for radios that are only AH-3 compatible)
Partial radio list: IC-706, 703, 718, 7000, 7100, 7200, 7300, 7410, 746, 756, 7600, 7610 (and all variants).
Tuning time: 0.1 to 6 seconds full tune, 0.1 seconds memory tune.
1.8 to 54.0 MHz coverage. Built-in frequency sensor.
Tunes 4 to 800 ohm loads (16 to 150 on 6M)
For Dipoles, Verticals, Vs, Beams or any Coax Fed Antenna.
Includes Icom interface cable. Ready to use out of the box.

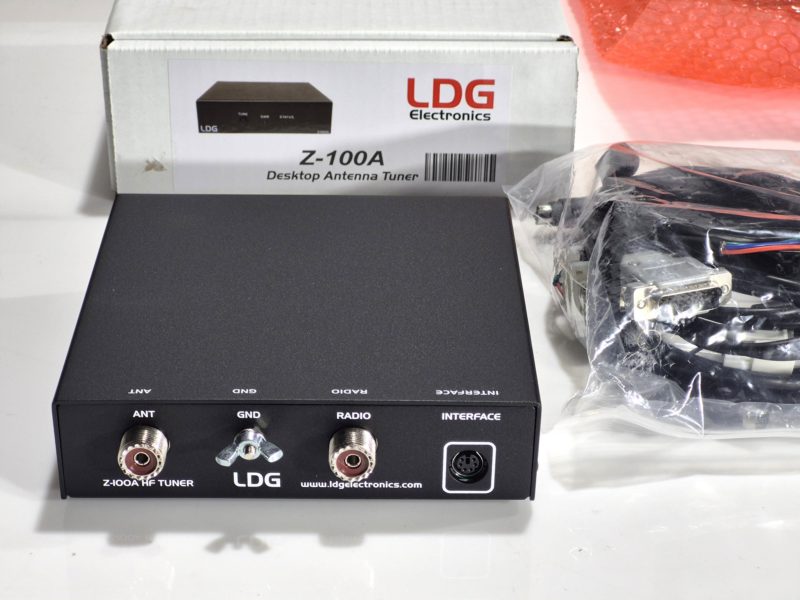

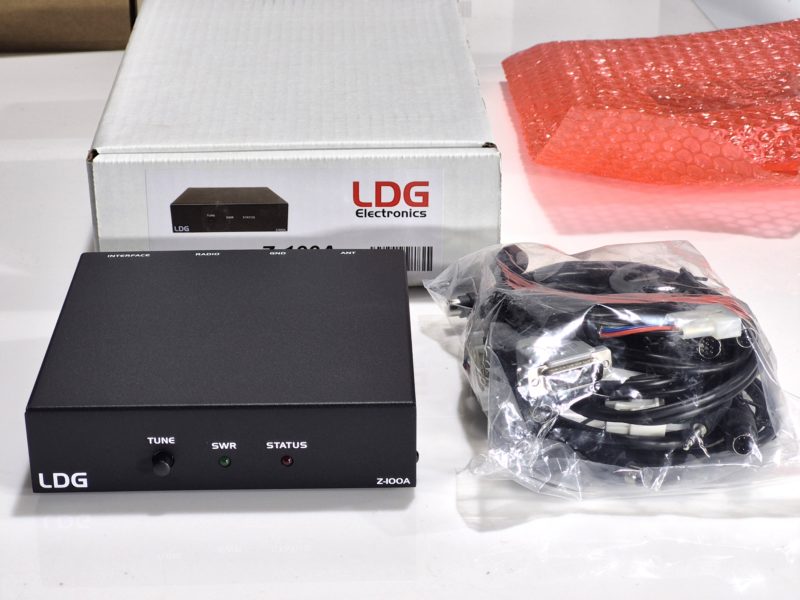

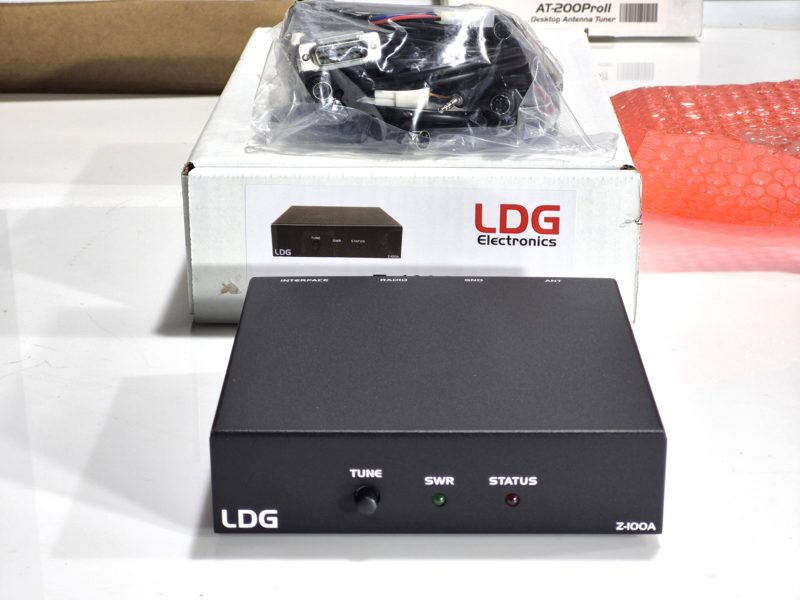

Small Size Enclosure: 6.5″ L x 6.5″ W x 1.25″ H.
Weight: 1.5 pounds.
Requires coaxial cable patch lead.
Z-100A is not suitable for use with FT-857/897.

The Z-100A will work with the following radios with the supplied Interface leads:
IC-115: lead for Yaesu Ftdx101, FTdx3000
IC-108: lead for Yaesu Ft100, FT857, FT897, FT-891, FT991A
IC-109: lead for Yaesu Ft450, FT950, FT1200, Ftdx10
IC-105: lead for DX77, SR8, SR9
IC-107: Elecraft included with Z-100A
IC-100: Lead for most Icom radios – partial list IC-706, 703, 718, 7000, 7100, 7200, 7300, 7410, 746, 756, 7600, 7610 (and all variants).
