Description

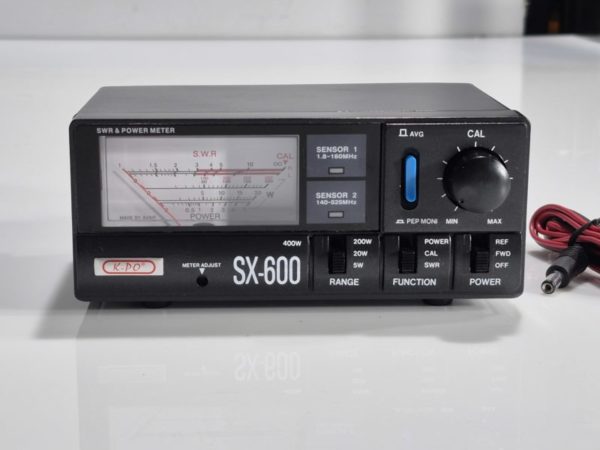

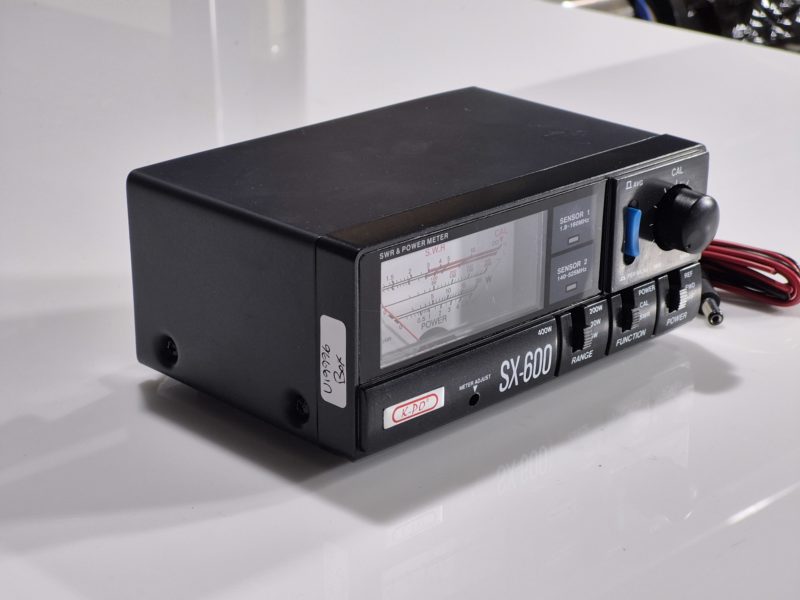

SX-600N: The SX-600N measures forward and reflected power and VSWR. Compact size makes meter useful for testing both base and mobile installations. Two directional couplers with switch and LED indicators for in-line connection of two transceivers.
Features:
Illuminated meter
Switchable r.m.s. or peak power
Measures forward, reflected & VSWR power
Dimensions: 6″W x 2″H x 4″D, 2 lbs.
Specifications:
Frequency Range: 2 Bands
1.8-160 MHz / 140-525 MHz
SWR Sensitivity: Minimum 1 Watt / 4 Watt
Power Range: 5 Watt / 20 Watt / 200 Watt / 400 Watt
Measurement Functions: Forward RF Power, Reflected RF Power, SWR, PEP Monitor
Meter Illumination: DC 13,8 Volt (11-15 VDC)

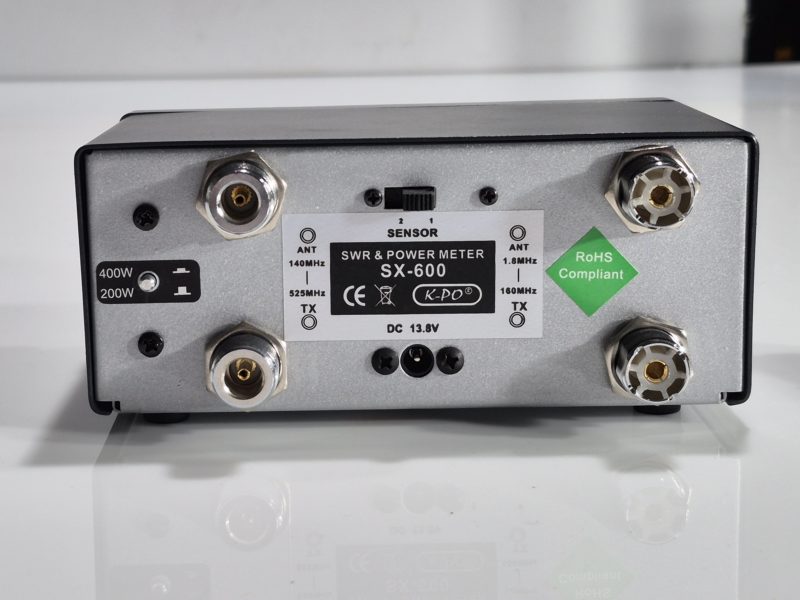

Connectors: S1 is UHF-Female (SO-239) / S2 is N-Female
Maximum power handling: 400 Watts 25 sec on, 35 sec off
NOTE: METER IN AS NEW IN BOX CONDITION
