Description

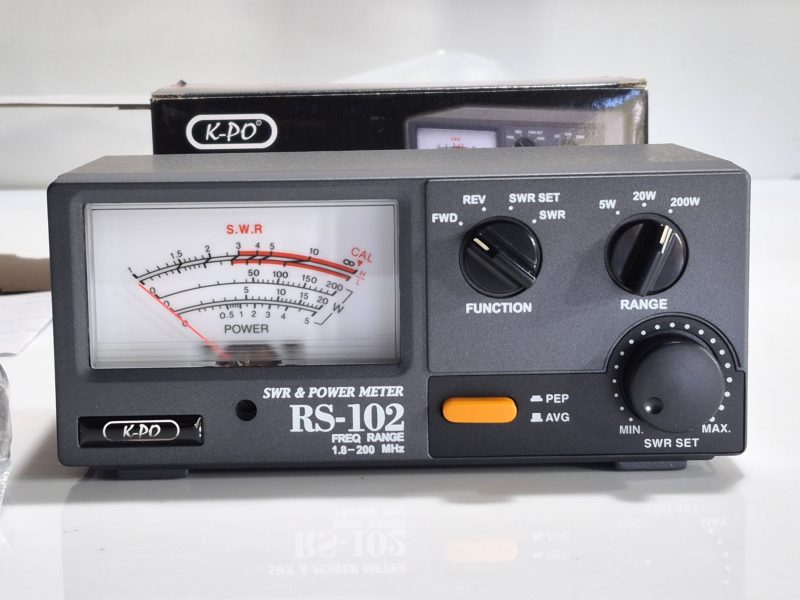

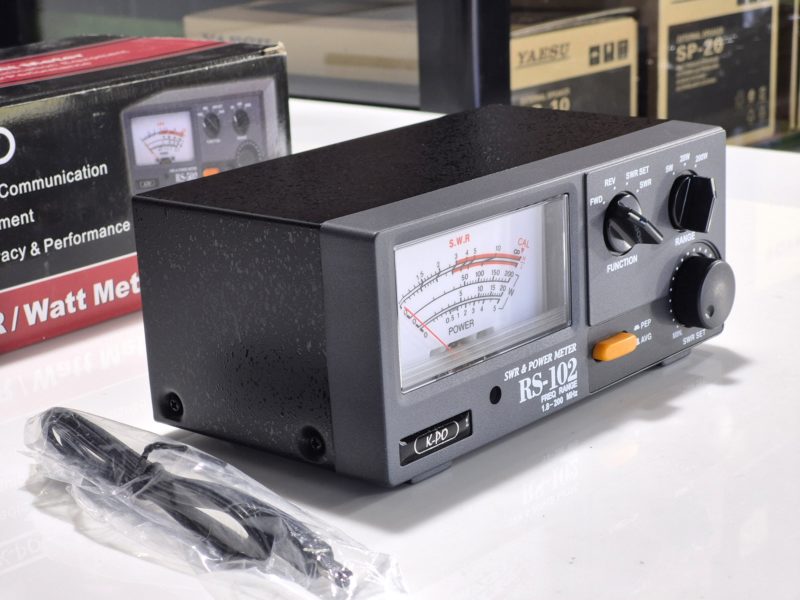

RS-102: The K-PO RS-102 is a high precision SWR and power meter for 1.8 – 200 MHz. For measuring forward power, reflected power and SWR. AVG/PEP switch to select average power or SSB/PEP. Maximum power of 200 watts, short time. Made by Nissei, Taiwan.
Specifications:
Range: 1.8 MHz – 200 MHz
Backlit display
Impedance: 50 Ohm
Power range: 5 / 30 / 200 Watts
Accuracy: 5 Watts: (AVG) ± 10%,
(PEP) ± 15% / 20 – 200 Watts: (AVG) ± 5%, (PEP) ± 10%
Minimum power for SWR: 3 Watts
Addition Loss: less than 0.1dB
Test function: SWR and Power (FWD and REF / AVG and PEP)
Voltage: 13.8 Volts, for display illumination only

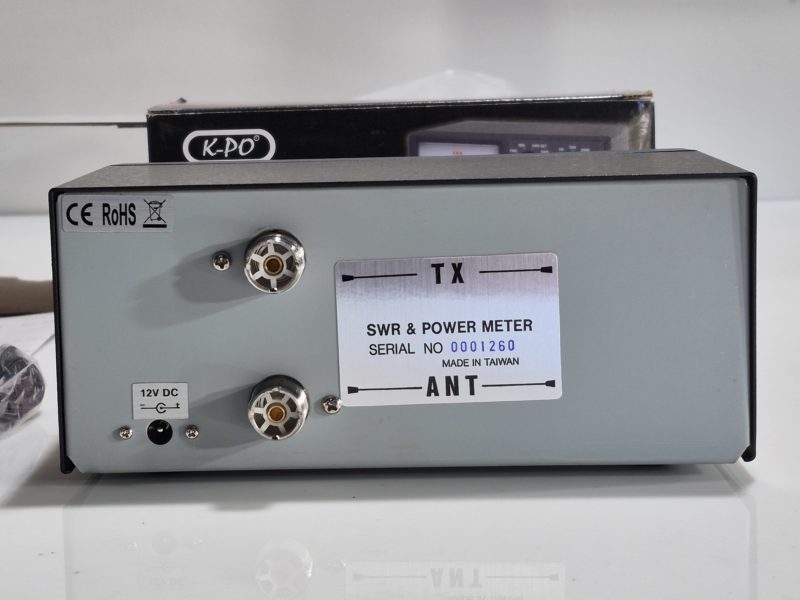

Input connector: SO-239 (PL)
Output connector: SO-239 (PL)
Dimensions: L 135 mm x H 85 mm x W 90 mm
Weight: 790 grams
