Description
5D-FB: Ultra Low-loss 5D-FB cable is designed to transmit the maximum signal to your antennas. With copper conductors for less signal loss, for Ham and CB Radio. The connector is nickel-plated (center pin is gold-plated), and the insulator is Bakelite. Coaxial is made by Kansai Communication Wire. Don’t settle for less especially if you have a significant investment in antennas.
You should allow three inches of cable to make a 90 degree turn in your runs without causing signal loss. The connectors used with the coax must also hold the correct spacing through the body of the connector to avoid signal loss.
Specifications:

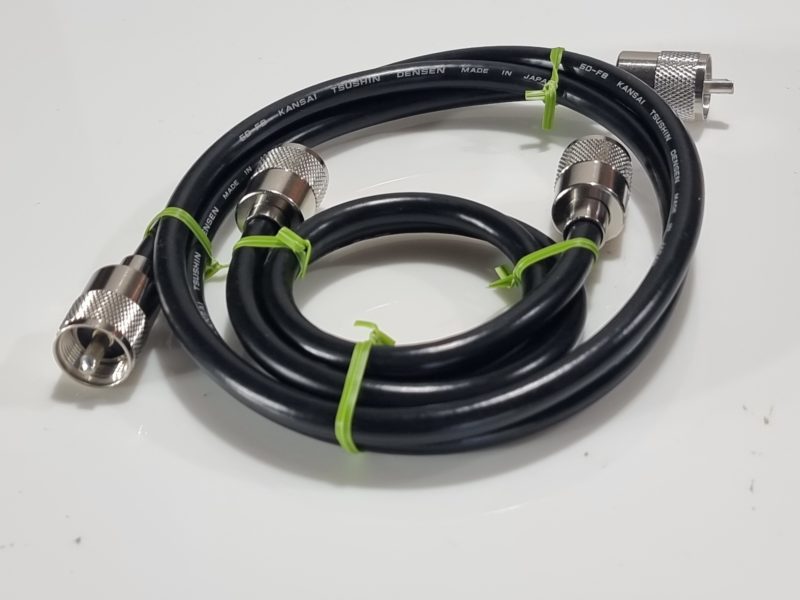

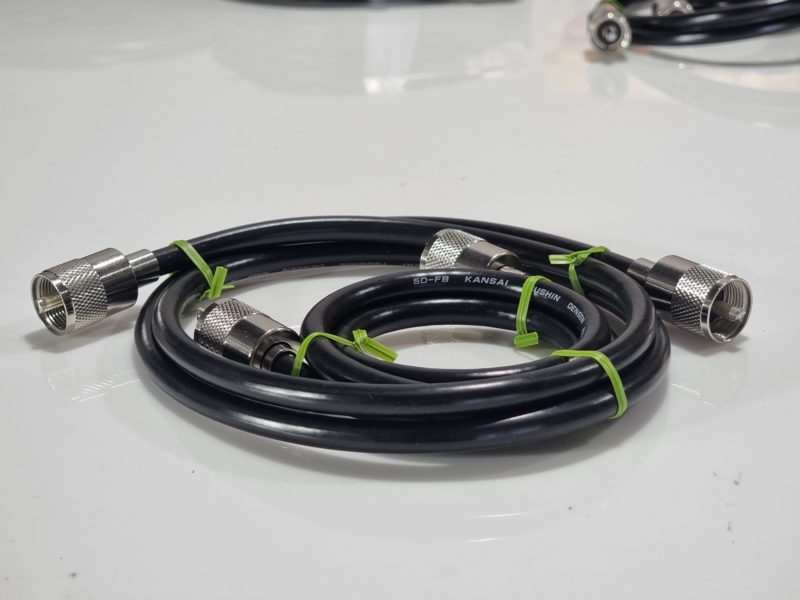

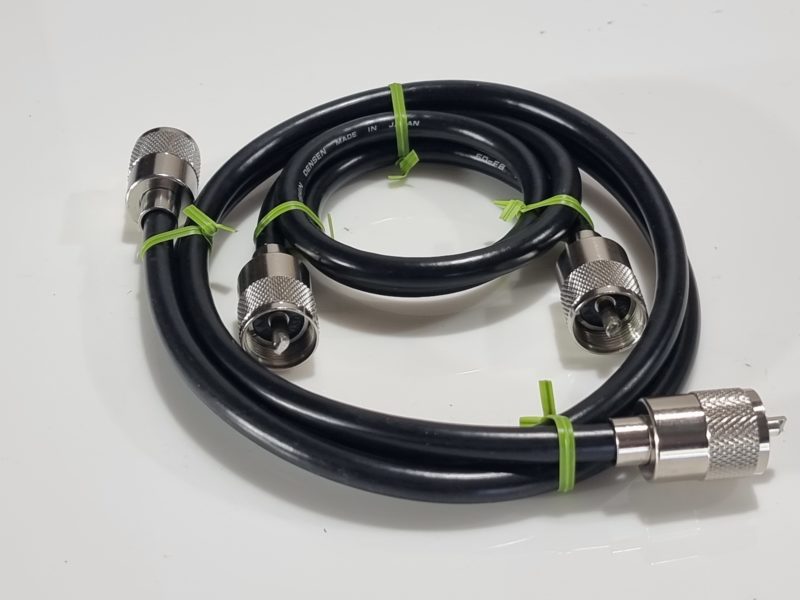

3 x Patch Leads: 3 x (0.6cm) professionally fitted with PL-259 plugs.
Inner conductor: 1.80mm Bare copper/copper clad steel
Dielectric: 5.00mm Foamed PE
Shield: Bonded aluminum foil
Capacitance: 82 pF/m
Impedance: 50±3 Ohm
Velocity of propagation: 82%
Return Loss: ≥20
Min. bending radius: 38 mm
Operating frequency: 1~6000 MHz
Shielding effectiveness: dB >90
Sparker Test (VAC): 3000
pMAX: 8.8Kw
