Description

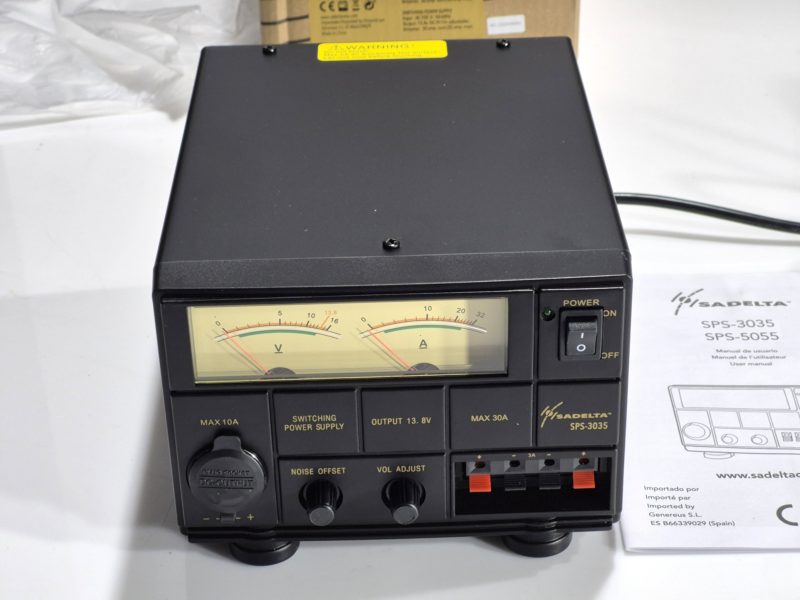

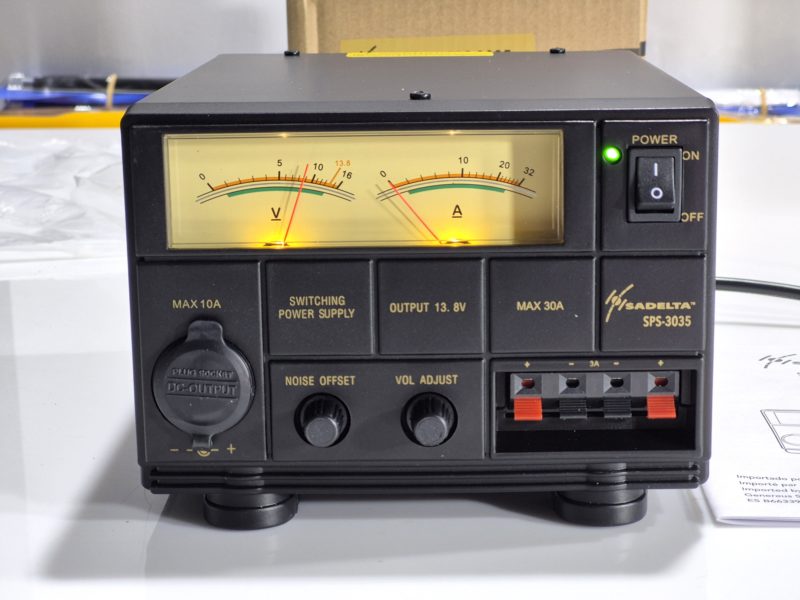

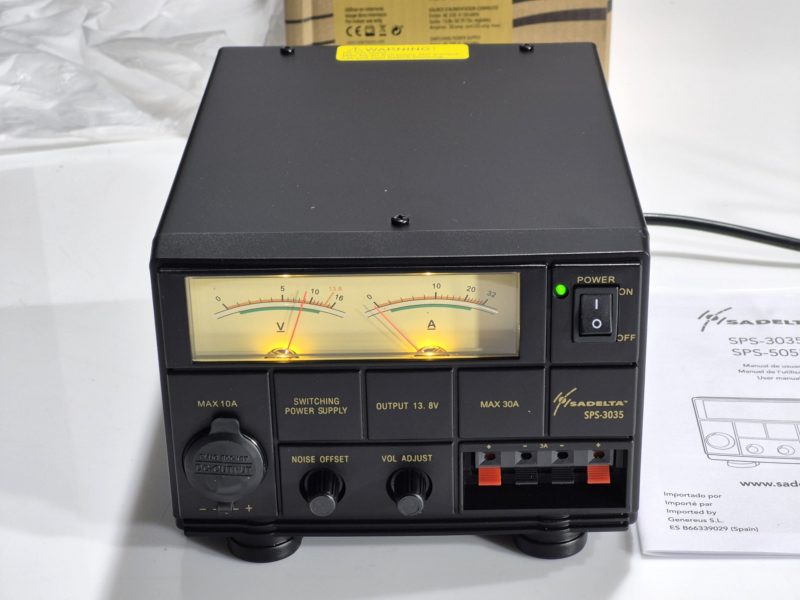

SPS-3035: Compact and inexpensive power supply with separate analog instruments to display voltage and current. This power supply series is characterized by its low weight, reasonably quiet fan, illuminated analogue instruments and a wide range of connectivity options.
Features / Specifications:
Supply voltage: 220-230VAC / 50-60 Hz
Adjustable output voltage: 9-15V DC or 13.8V DC with fixed position
Amperage: 30A constant / 35A peak
Output voltage regulation; <2%
Two analog VUs display voltage and amperage simultaneously
Metal case with rubber foot
On / Off button

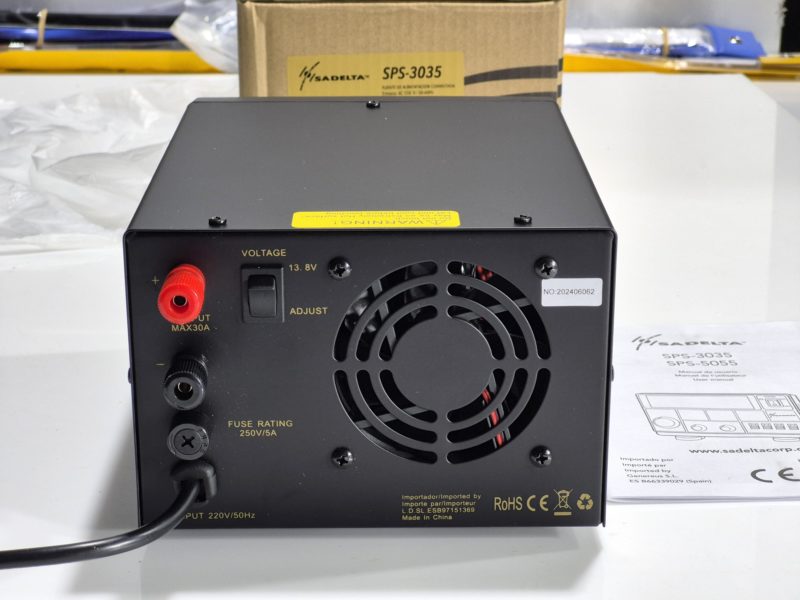

DC output at the rear via screw terminals max. 35A
Cigarette lighter socket on the front face up to 10A
Front face output: max. 3A
Adjustable switching frequency interference if necessary
Rear fan cooling
Protections: Overload & short circuit over 30A
Dimensions: 170 mm x 130 mm x 230 mm
Weight: 2.5 Kg.
