Description

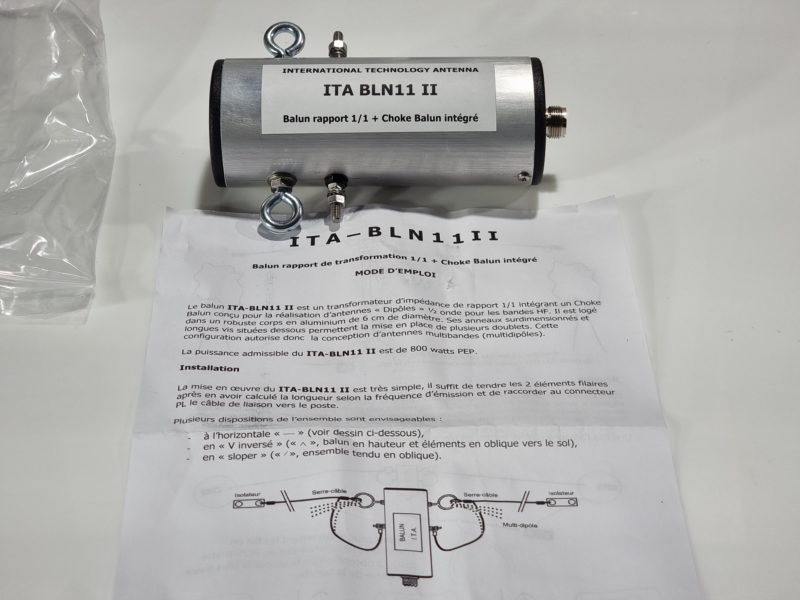

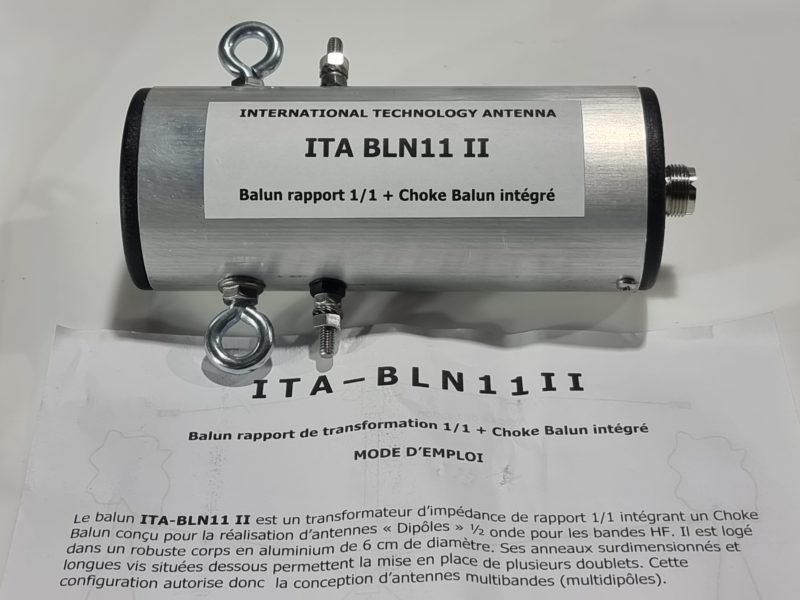

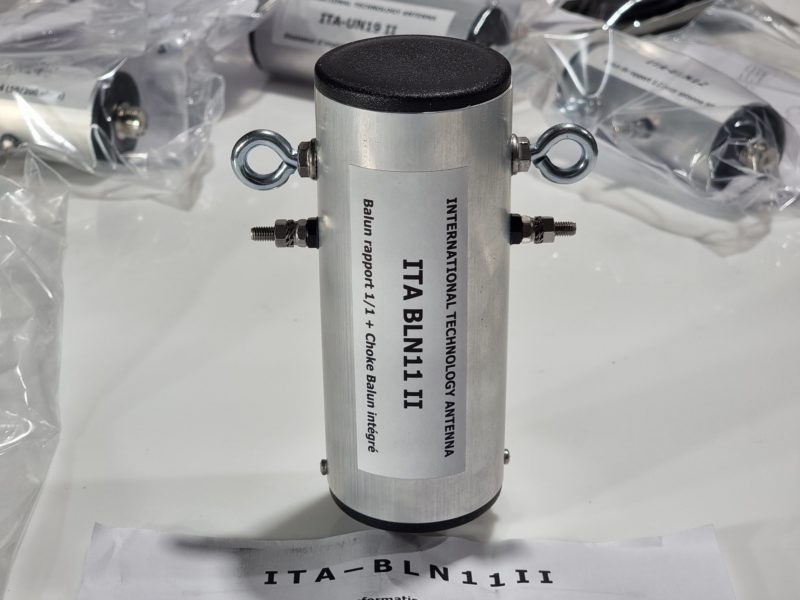

BLN11 II: Balun ratio 1:1 (ex: 50 => 50 ohms). Maximum power: 800 W PEP, to make “inverted V” dipole antennas. Robust aluminum body diameter: 6 cm (thickness: 2mm), SO-239 connector and Choke Balun integrated.
Specifications:
BLN11 II, 1:1 Balun (50 Ω:50 Ω) + Choke balun
Frequency Bands: 1,5 – 30 MHz
Power handling: Max. power 800 W PEP
Impedance: 50 Ohms
Connector: SO-239 (PL)
Diameter: 60 mm
Weight: 390 g
