Icom 4-Pin ATU Connector Plug

$19.00

Category:

Description

B079643L29: One Pair Molex 4-pin ATU Male / Female plugs. For ICOM, LDG Automatic Antenna Tuners. Used for connecting tuner or sourcing 12v from the back of your rig.
Antenna tuners:
ICOM: AT-120, AH-3, AH-4
LDG ELECTRONICS: IT-100 etc.

Specifications:
Number of Rows: 1
Number of Poles: 4
Applicable wires: 14-20 AWG
Temperature range: -25℃~85℃
Voltage rating: 300V.AC/DC
Current rating: 9A
Contact resistance: ≤0.01Ω
Insulation resistance: ≥1000M Ω
Withstand voltage: 1500V.Ac/1min
Material: nylon PA66 (housing), bronze Tin/plated(Terminal)

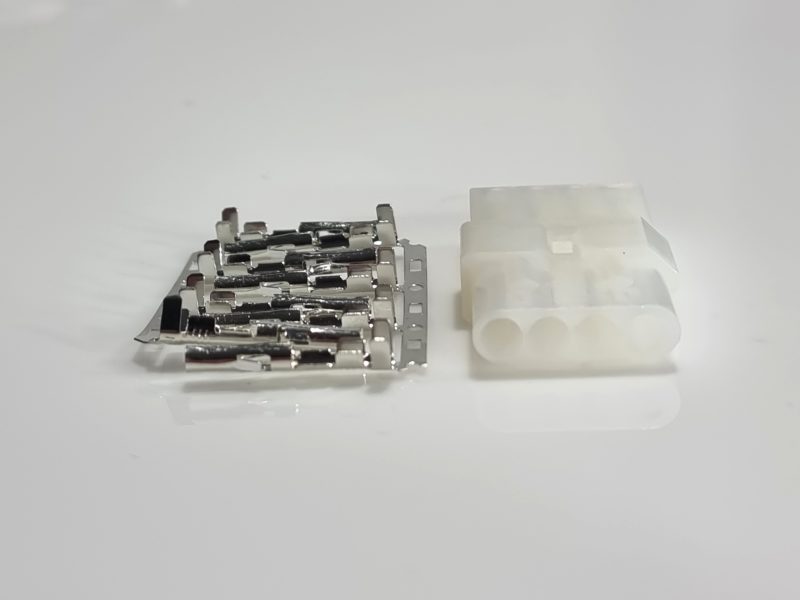

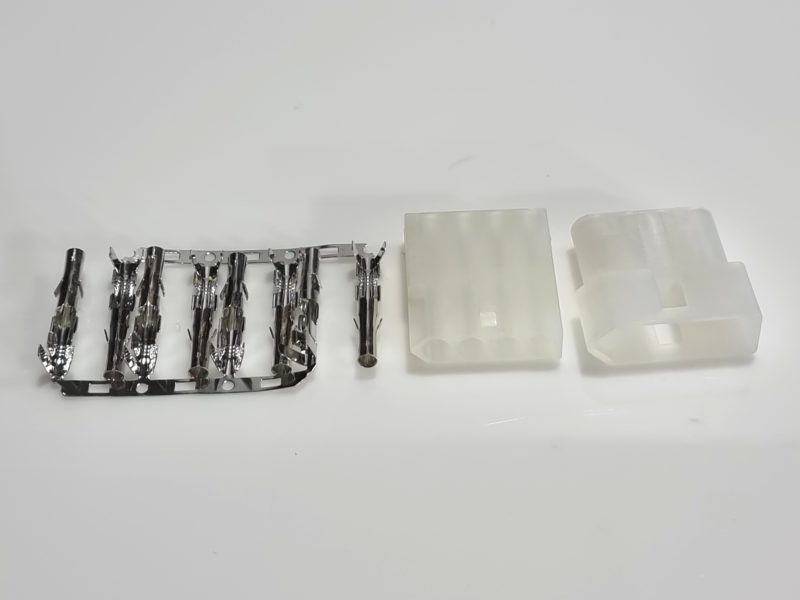

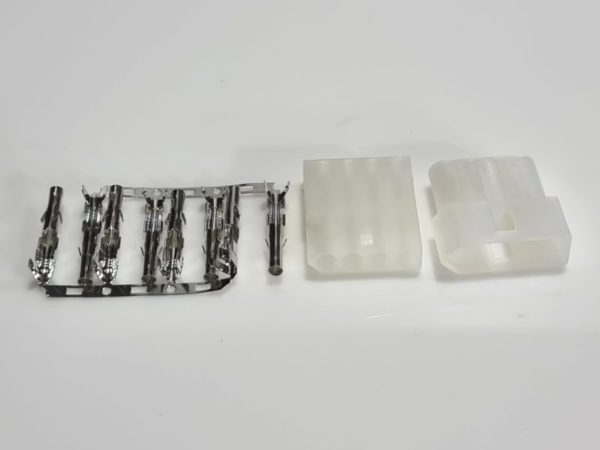

In the package:
1pc female Connectors with 4pcs Crimp Pins (14-20AWG)
1pc male Connectors with 4pcs Crimp Pins (14-20AWG)
