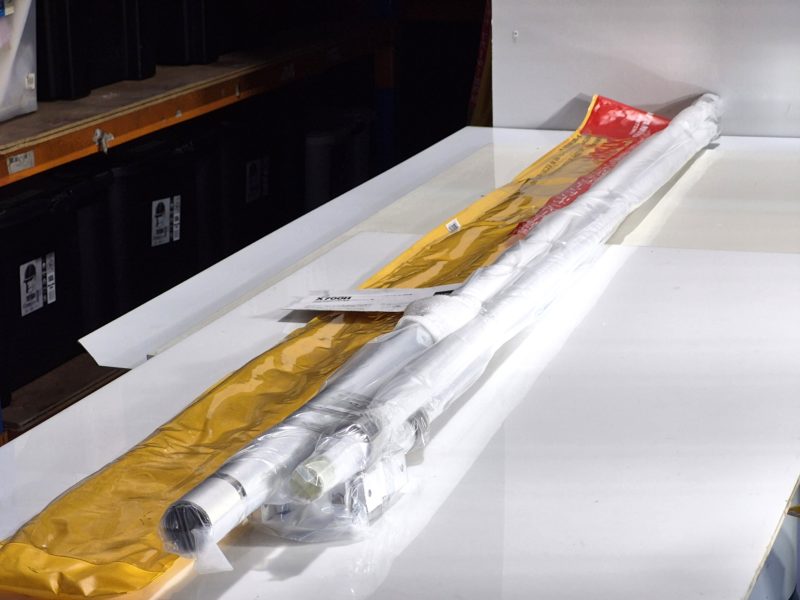

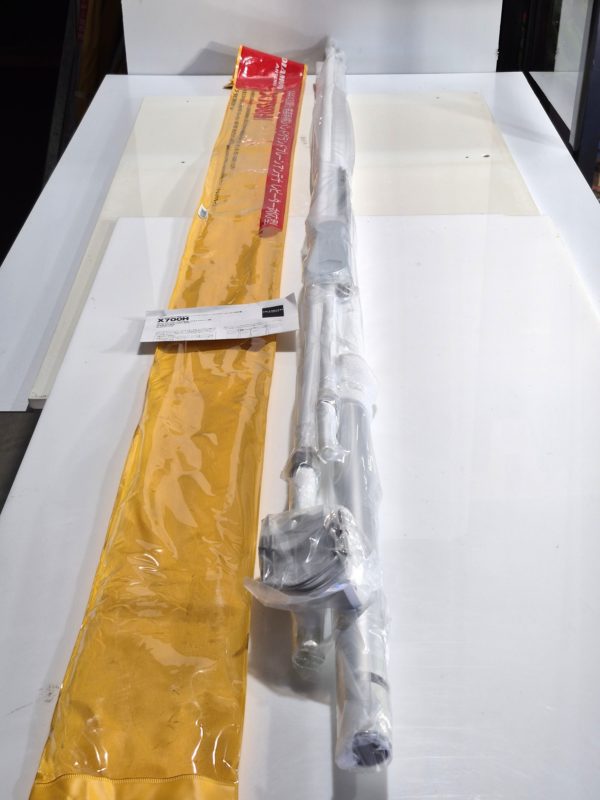

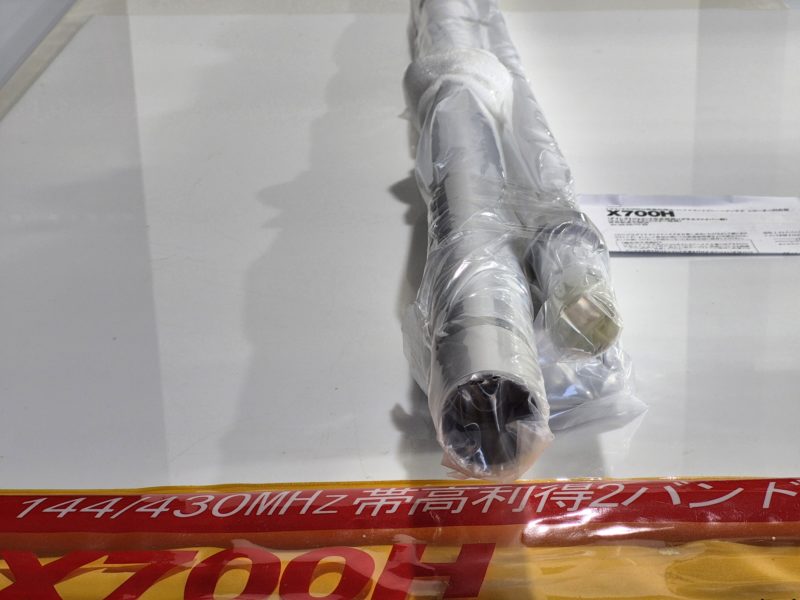

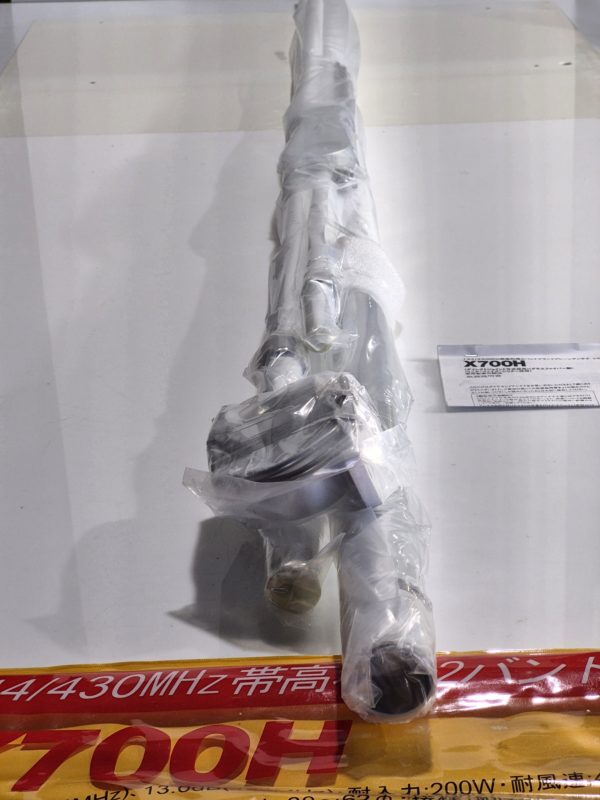

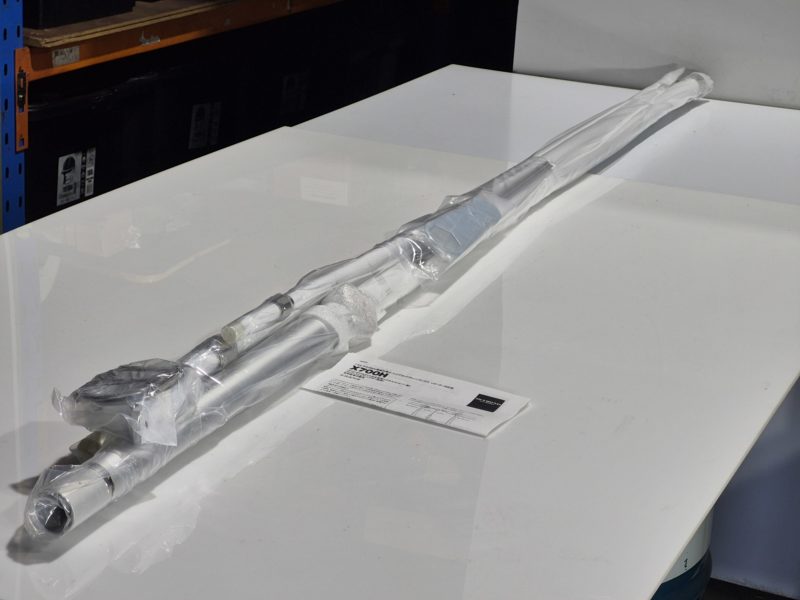

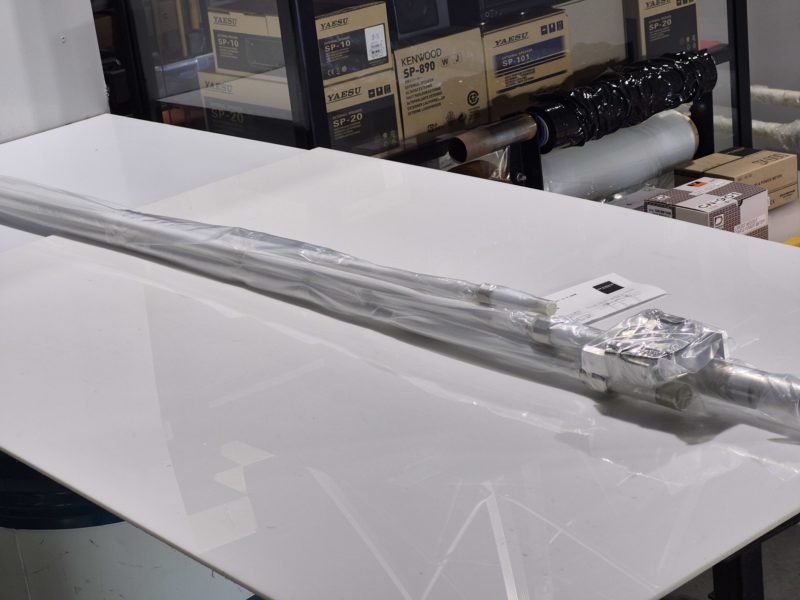

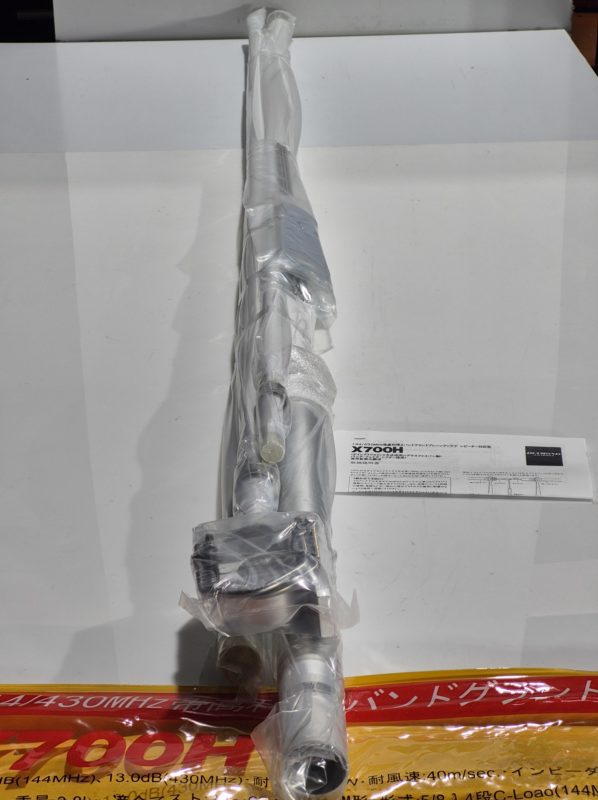

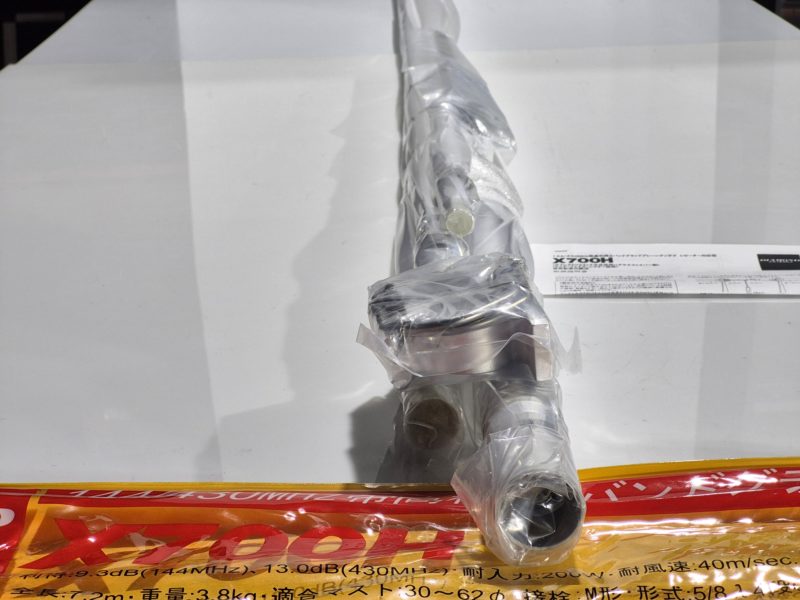

Diamond X-700H High Gain 2/70cm Base Vertical Antenna

$525.00

Description

NOTE: SOLD OUT ON BACK ORDER

X-700H: The Diamond X-700H 2m/70cm base station vertical is a highly reliable antenna for amateur radio enthusiasts. Constructed with fibreglass, it ensures durability and longevity. Additionally, it comes pre-tuned and fully weatherproofed, making it suitable for various weather conditions. The package also includes mast mounting brackets, providing convenience for installation.
With frequency bands of 2m/70cm, this antenna offers versatile coverage for both VHF and UHF transmissions. It boasts a gain of (9.3 / 13dB), allowing for improved signal reception and transmission. The X-700H can handle power up to 200W, ensuring efficient performance. With its impressive specifications and convenient installation options, it is a valuable addition to any radio station setup. The antenna was tested in strong winds – no signal “wave” effect.

Features:
Fiberglass radomes
Overlapping outer shells for added strength
Strong waterproof joint couplings
Stainless steel hardware
Wide band performance
Factory adjusted – no tuning required
High wind rating
DC grounded

Specifications:
Frequency: 2/70 cm
Radial length: approx.52 cm
Gain: 9.3dB (144MHz),13.0dB (430MHz)
Max. power rating: 200W (Total)
VSWR: Less than 1.5:1
Rated wind velocity: 40m/sec
Mast diameter: 30mm to 62mm (More than 45mm diameter mast is recommended)
Connector: SO-239 Socket / PL-259 Plug
Impedance: 50 Ohms
Length: 7.2m
Weight: 3.8kg
Type: 4 x 5/8 wave C-Load on (144MHz), 11 x 5/8 wave C-Load on (430MHz),
FRP outershell
