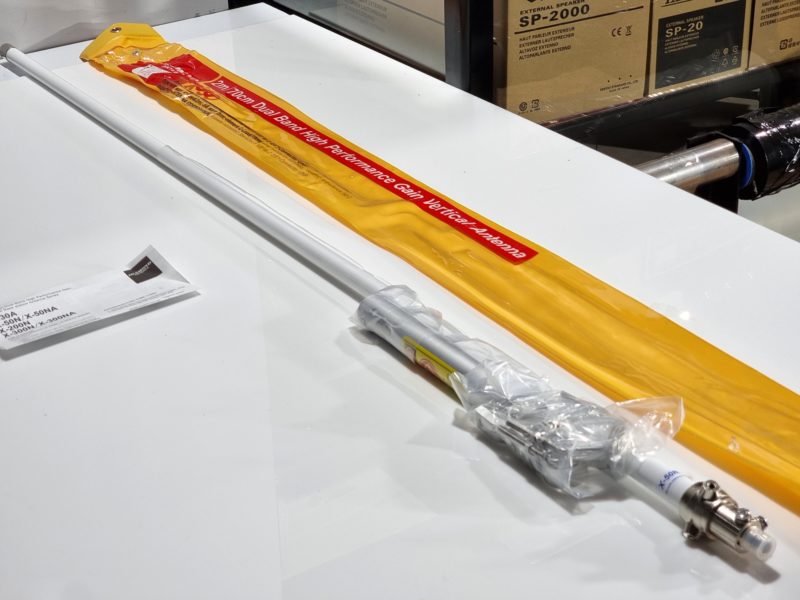

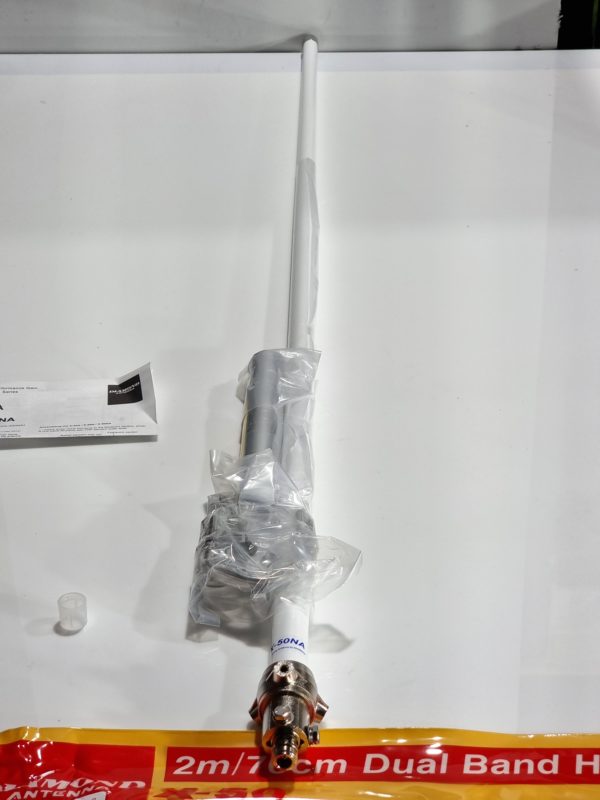

Diamond X-50NA 2/70cm Base Vertical Antenna



X-50NA: Is an excellent choice where ruggedness is required in a medium-gain, dual-band application. Fiberglass with stainless steel hardware.
No tuning required. High wind rating.

Type:6/8 wave (144MHz), 3x 5/8 wave C-Load radialless (430MHz)
Length: 1.7m
Weight: 0.9kg
Gain: 4.5dB (144MHz), 7.2dBi (430MHz)
Max.power: 200W
Impedance: 50 ohms
VSWR: Less than 1.5:1
Rated wind velocity: 200km/h
Mast diameter accepted: 30mm to 62mm

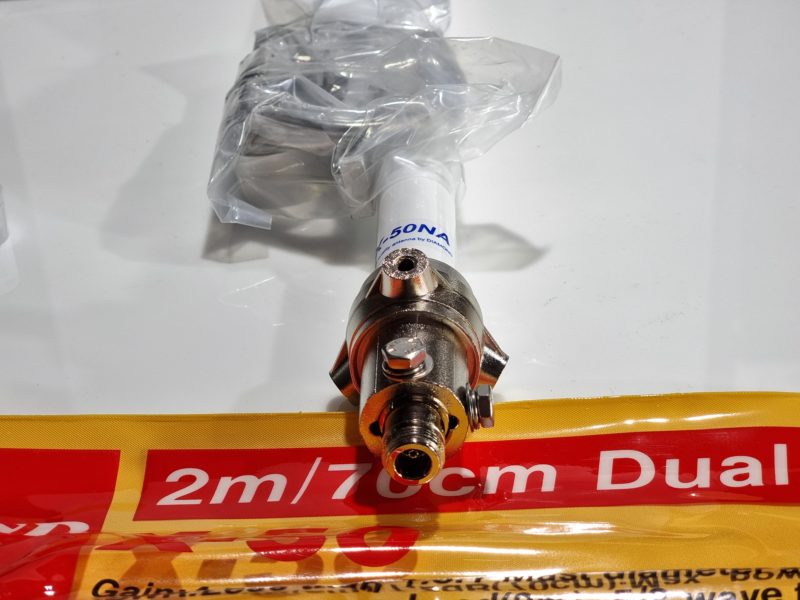

Connector: Type N Female.
