Description
ITEM PRICES ON SHIPPING ARRIVALS

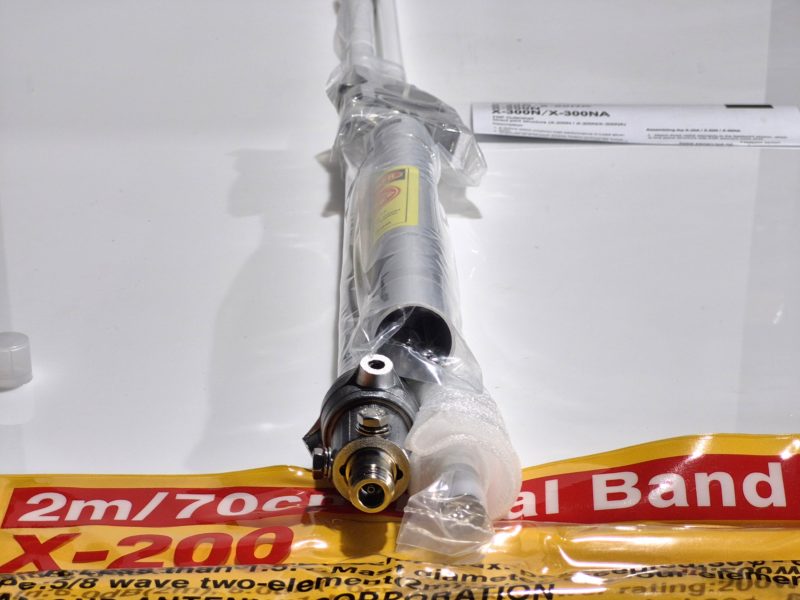

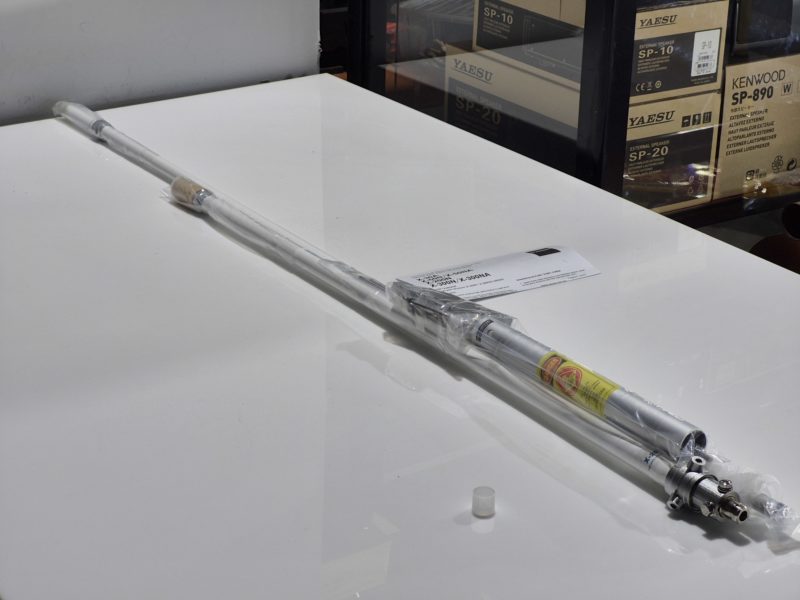

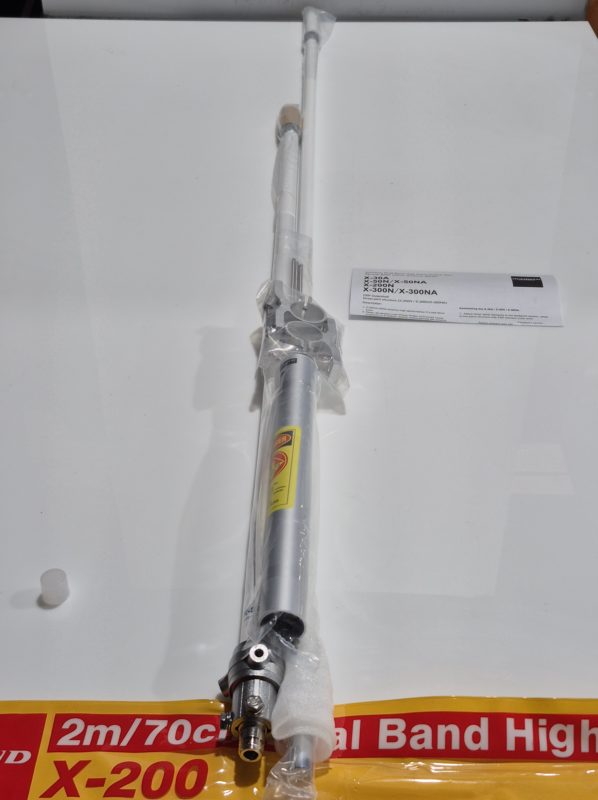

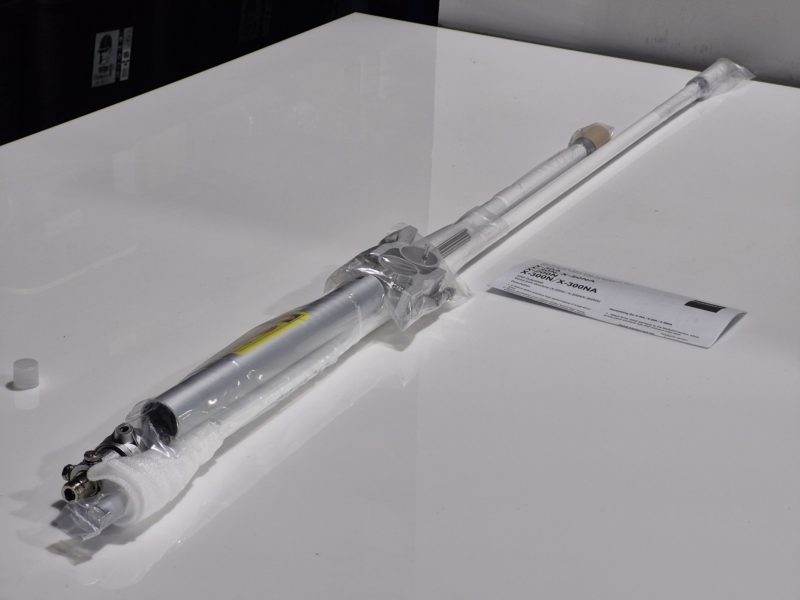

X-200N: The Diamond X-200N Vertical antenna is constructed from fiberglass, ensuring durability and longevity. This model comes pre-tuned and fully weatherproofed, making it suitable for various environmental conditions. Installation is made easy and efficient with a coax connection via an ‘N’ socket, which includes mast mounting brackets. The Diamond X-200N is a professional dual band base antenna designed for VHF and UHF amateur radio operators who require high performance, reliability, and long term durability. It is a 2 section fiberglass antenna featuring all stainless steel hardware.
Features:
Fiberglass construction
Overlapping outer shells for added strength
Strong waterproof joint couplings
Stainless steel hardware
Wide band performance
Factory adjusted no tuning required
Highest gain
High wind rating
DC grounded
Specifications:
Frequency: 144/430 MHz
VHF gain: 6.0 dB / UHF gain: 8.0 dB
Maximum Power: 200 W
Beamwidth (-3 dB): Omni
Impedance: 50 Ohms
Wind speed: 50 m / sec
VSWR: Less than 1.5: 1
Wavelength: 2 x 5/8 (144 MHz) 4 x 5/8 (430 MHz)
Maximum accepted diameter: 30 mm to 62 mm
Connector: N-Type socket
Length: 2.5m (8.2 ft)
Weight: 1.2 kg
Supported mast diameter: 30 – 62 mm
