Description

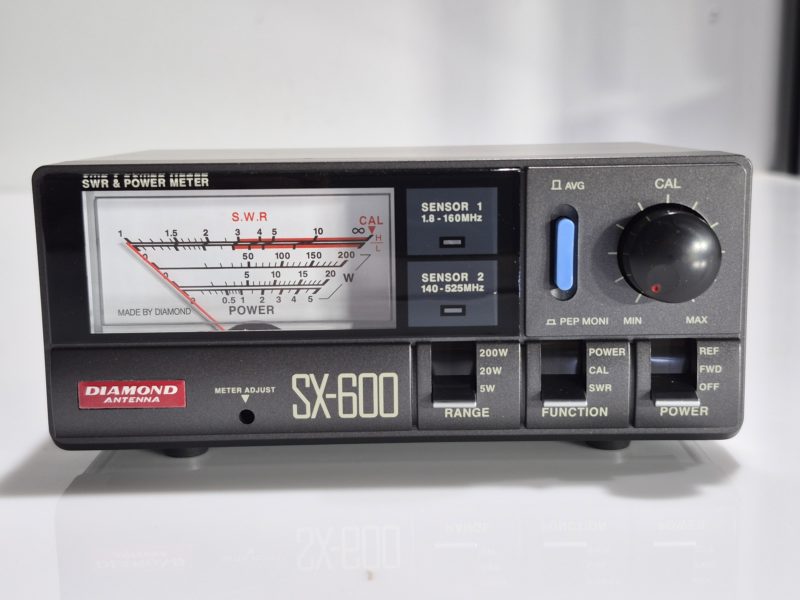

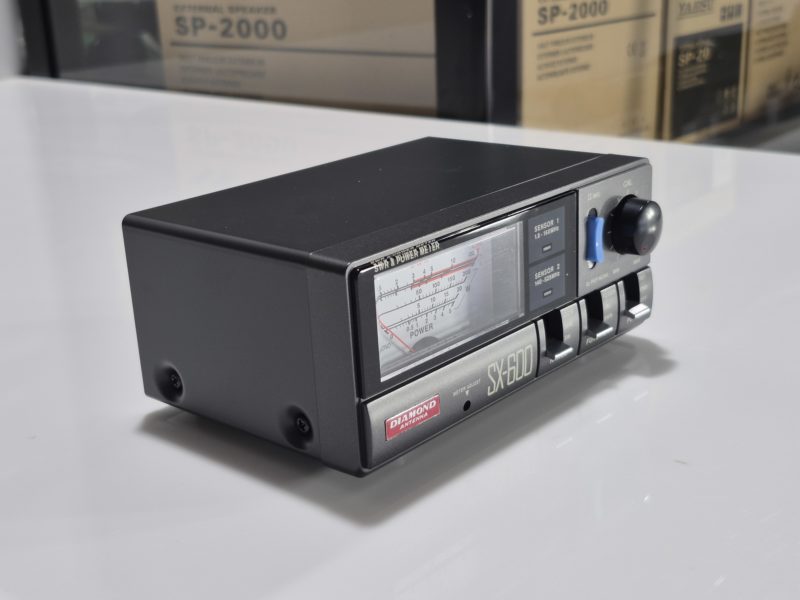

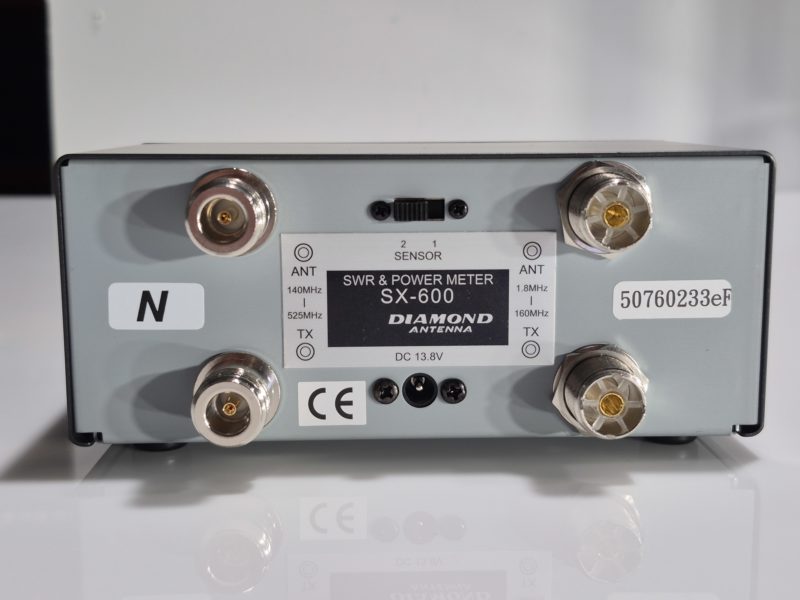

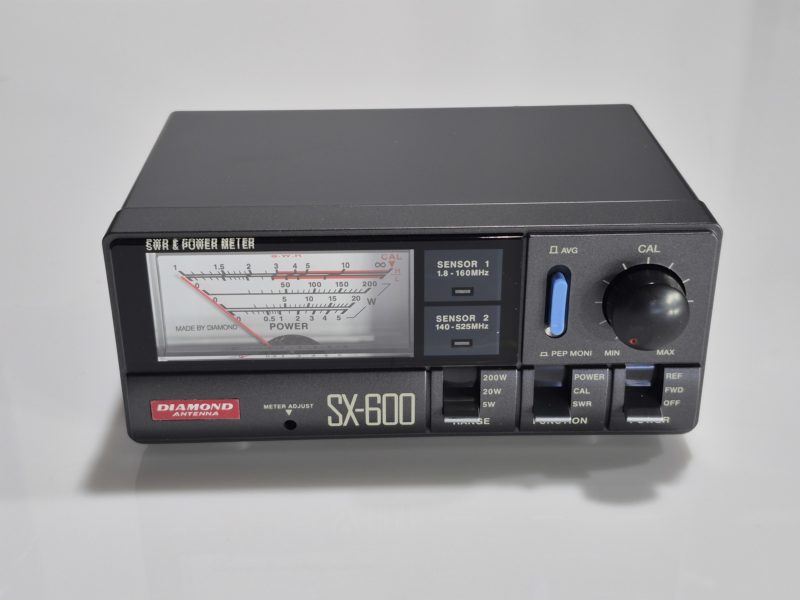

SX-600N: The Diamond SX600N is a versatile and accurate SWR and power meter, ideal for users working in a wide frequency range. This meter supports two bands: 1.8 MHz to 160 MHz (S1 ) and 140 MHz to 525 MHz (S2 ), making it suitable for different communication bands. The SX600N has three switchable power ranges: 5 Watt, 20 Watt and 200 Watt, which provides flexibility when measuring various transmitters. The meter is equipped with two types of connections: 2 x UHF-Female (SO-239) for S1 and 2 x N-Female for S2, which provides a wide range of applications.
One of the standout features of the Diamond SX600N is its precision. Full scale accuracy is ± 10% (FS), and it has a minimum SWR measurement of 1 watt for S1 and 4 watts for S2. In addition, connection losses are minimal: less than 0.2 dB for S1 and less than 0.3 dB for S2, helping to ensure the reliability of your measurements.
Features:
Illuminated meter
Switchable r.m.s. or peak power
Measures forward, reflected & VSWR power
Specifications:
Frequency: 1.8-160/140-525 MHz
Power Ranges: 5/20/200W
Connector: SO-239 + N-CONNECTOR
Min. Power SWR Test:: 4W
Dimensions: 55 x 103 x 64 mm
