Diamond SG-7900 2/70cm Mobile Antenna

$219.00

Description

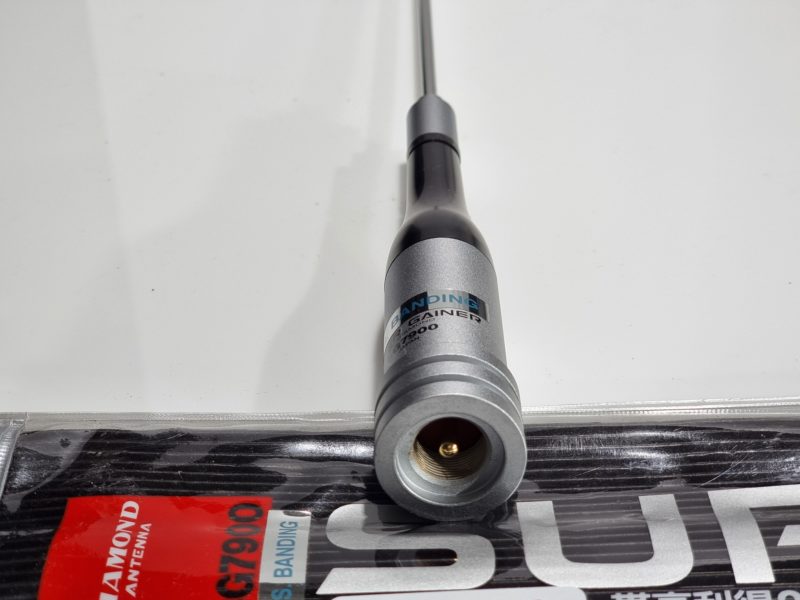

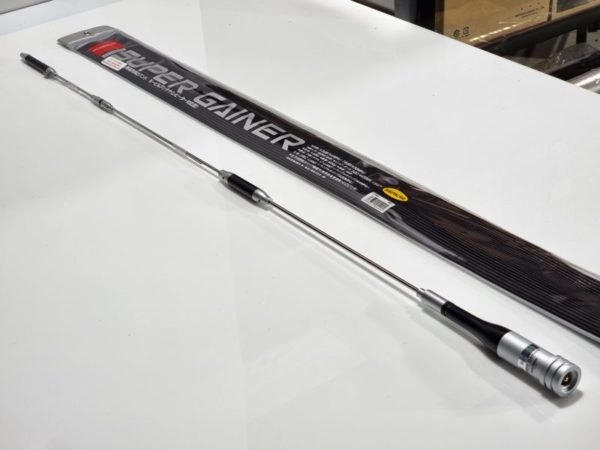

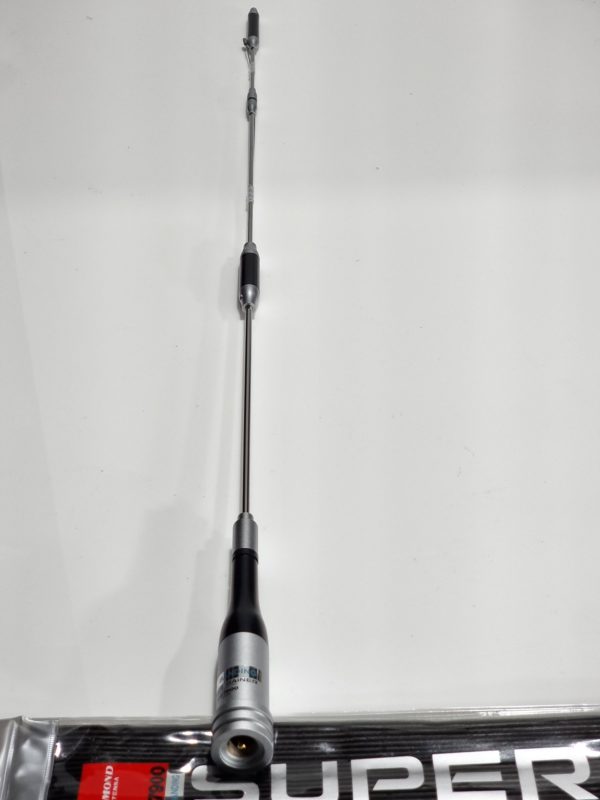

SG-7900a: The SUPER GAINER series antennas employ new design concept for the mobile whip antenna which emphasizes to go along well with recent aerodynamic car design. Since the antenna employs radialless structure on both 2m and 70cm bands, it works well at virtually any place on your car body. It can be located on trunk lid, roof, gutter or any place without effecting VSWR characteristics. High performance C-Load structure is used on both 2m and 70cm bands. Factory pre-tuned, 24k gold plated center conductor is used in connector section of the antenna.

Specifications:
Gain: 5.0dB (144MHz), 7.6dB (430MHz)
Max. power rating: 150W (Sum of both bands if operated simultaneously).
Impedance: 50 Ohms
VSWR: Less than 1.5:1
Length: 1.58 meter
Weight: 600 gram
Connector: UHF male
Type: 7/8 wave double C-Load radialless gain whip antenna (144MHz), 5/8 wave three element C-Load radialless gain whip antenna (430MHz).
