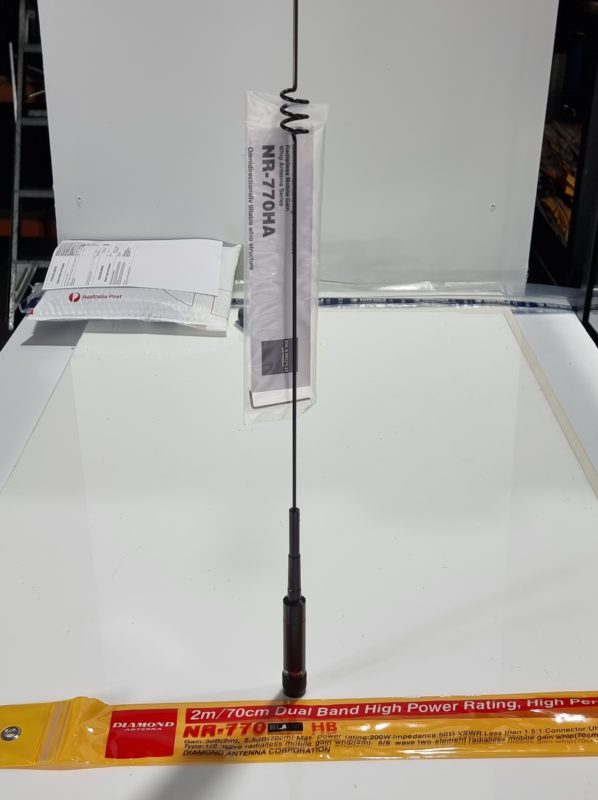

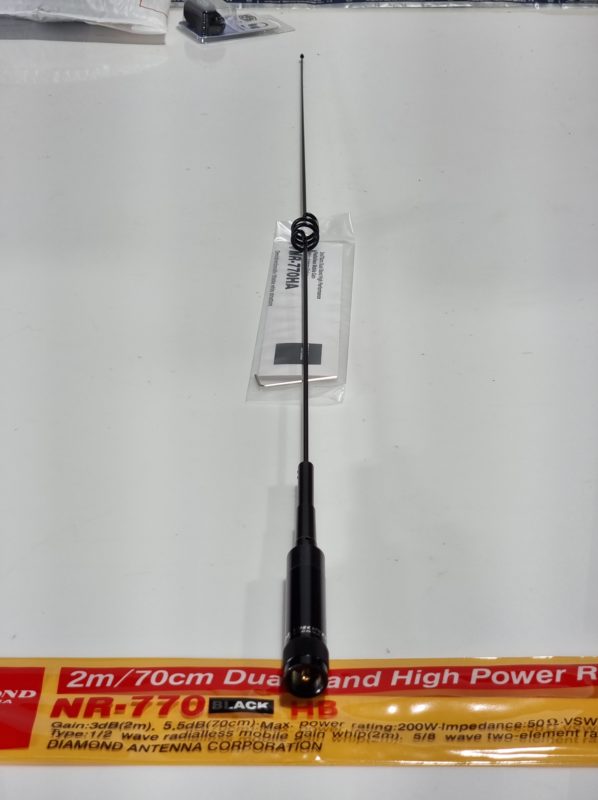

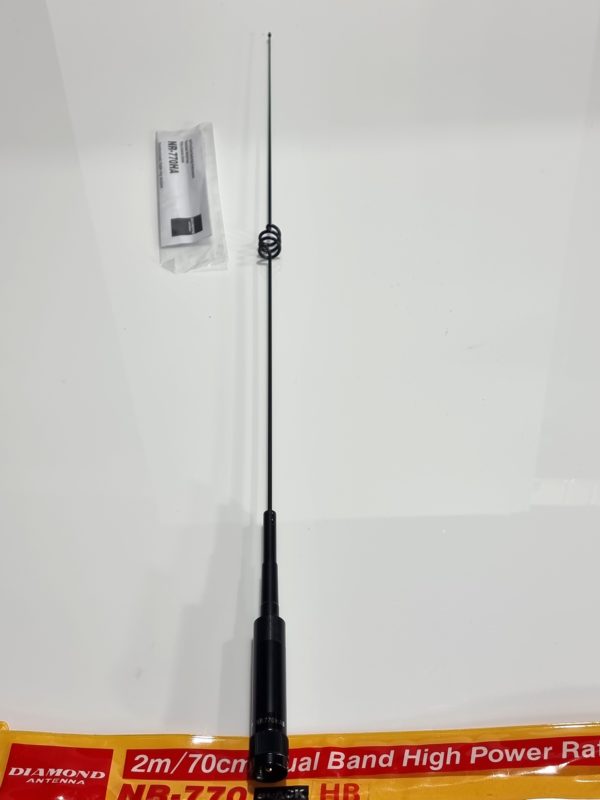

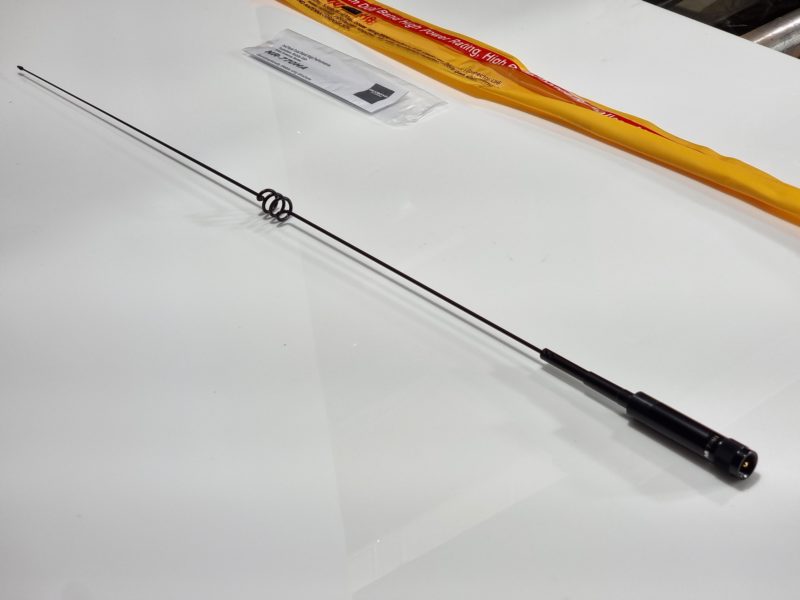

Diamond NR-770HA 2/70cm Mobile Antenna



NR-770HA: This antenna design employs DC ground structure so that the whip element and ground section (outer shell of impedance matching section) are short circuited, and the center conductor of the feed point connector and whip element are isolated. This antenna features a tillable whip structure. Chrome colored.

Frequency: 144/430MHz (2m/70cm) 300MHz band receiving
Gain: 3.0dB (144MHz), 5.5dB (430MHz)
Max. power rating: 200W
Impedance: 50 Ohms
VSWR: Less than 1.5:1
Length: 1.02m
Weight: 250g

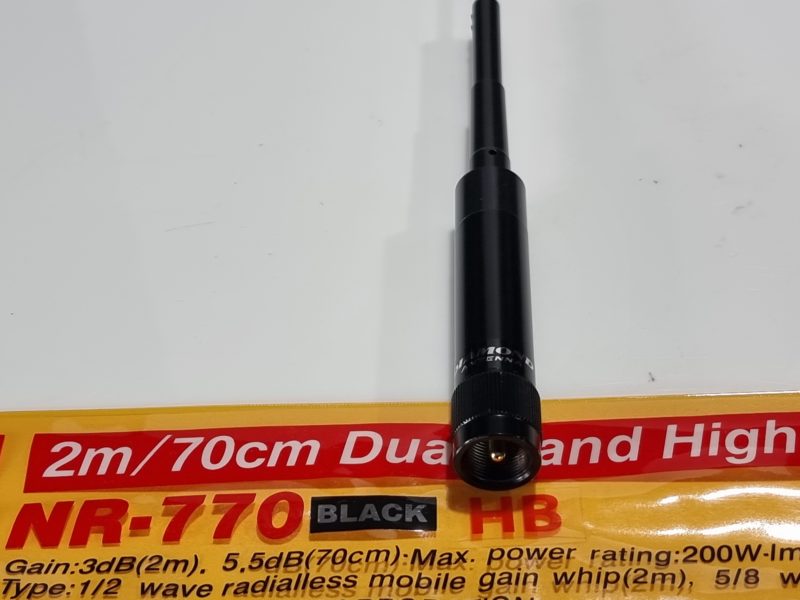

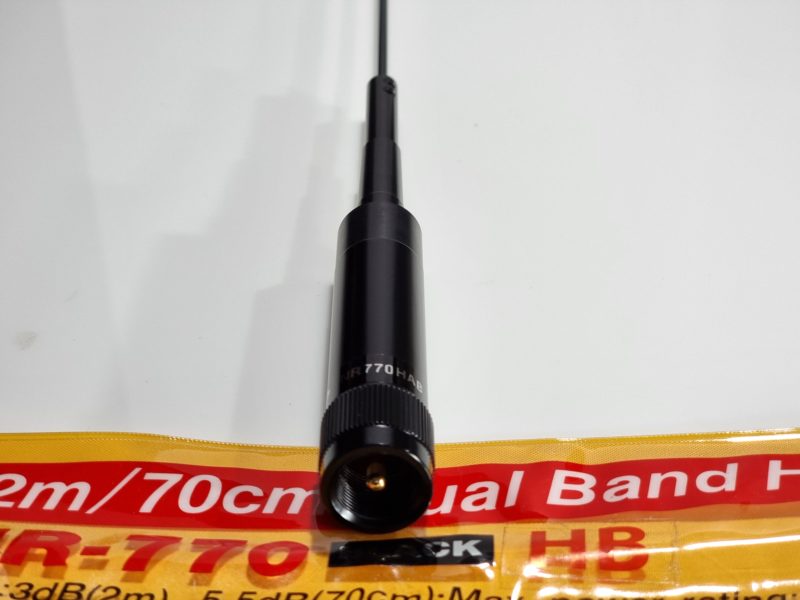

Connector: PL-259 plug
Antenna DesignL: 1/2wave radialless (144MHz), 2 x 5/8 wave radialless (430MHz).
