Description

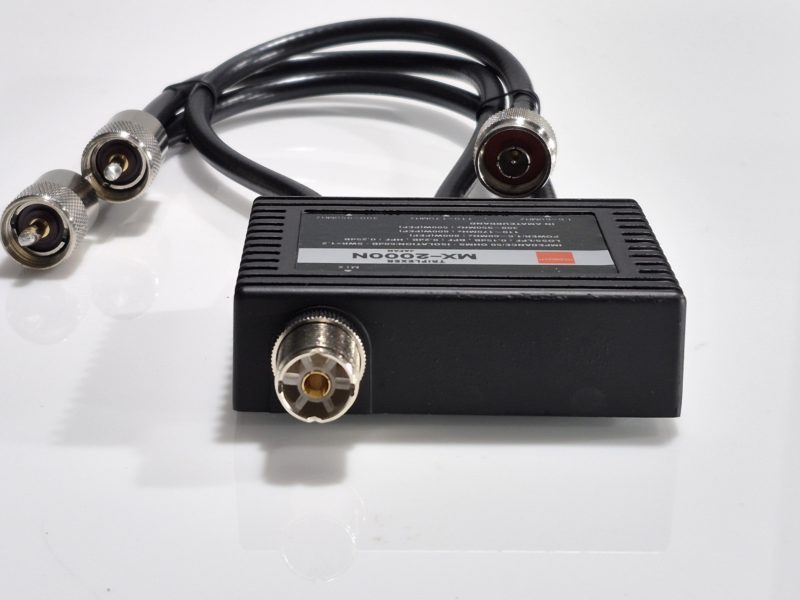

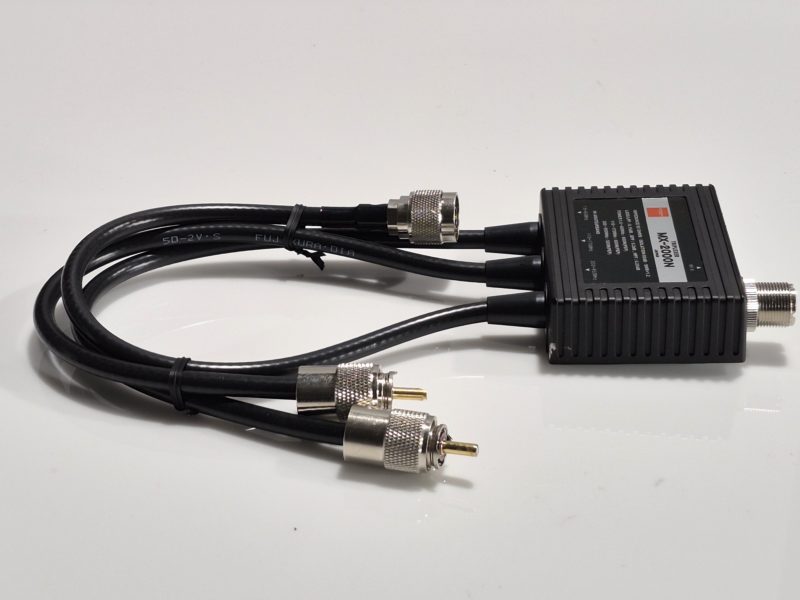

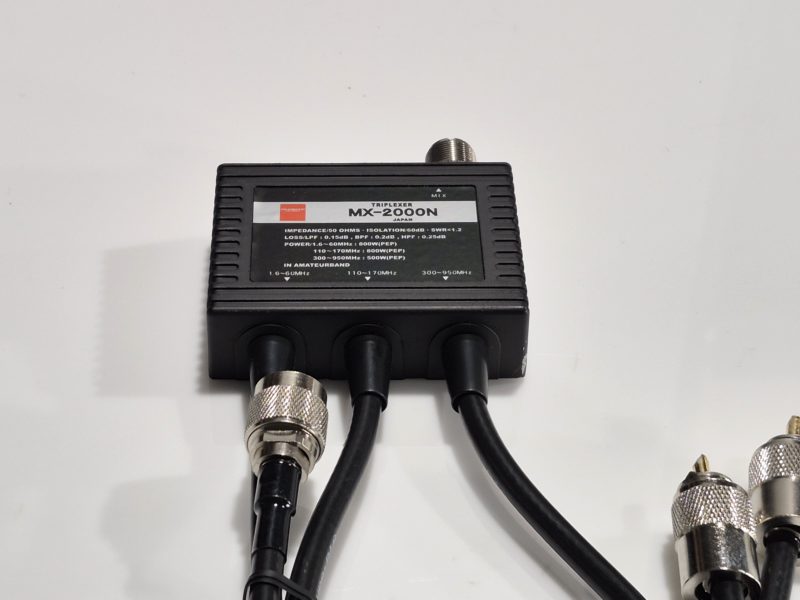

MX-2000N: Diamond Antenna Triplexers are used to split or combine HF, VHF, and UHF signals. These triplexers may be used for combining three transceivers or transceiver connectors with different band ranges onto one coax feed line. Diamond triplexers feature a high-quality aluminum case with a black finish.
Specifications:
Frequency range: 1.6 – 60 / 110 – 170 / 300 – 650 MHz
Load capacity: Transmission power 800W 1.6 – 160 / 800W 110 – 170 / 500W 300 – 950 MHz
Impedance: 50 Ohms
Attenuation: 0.15 dB 1.6 – 160 / 0.20 dB 110 – 170 / 0.25 dB 300 – 950 MHz
Isolation: 60 dB
Connection cable: UHF connector 1.6 – 60 / UHF connector 110 – 170 / N connector 300 – 950 MHz
Cable lengths: 35 cm connection
Antenna: UHF socket
Dimensions (L x W x H): 85 x 64 x 27 mm
Weight: 405 g
