Description

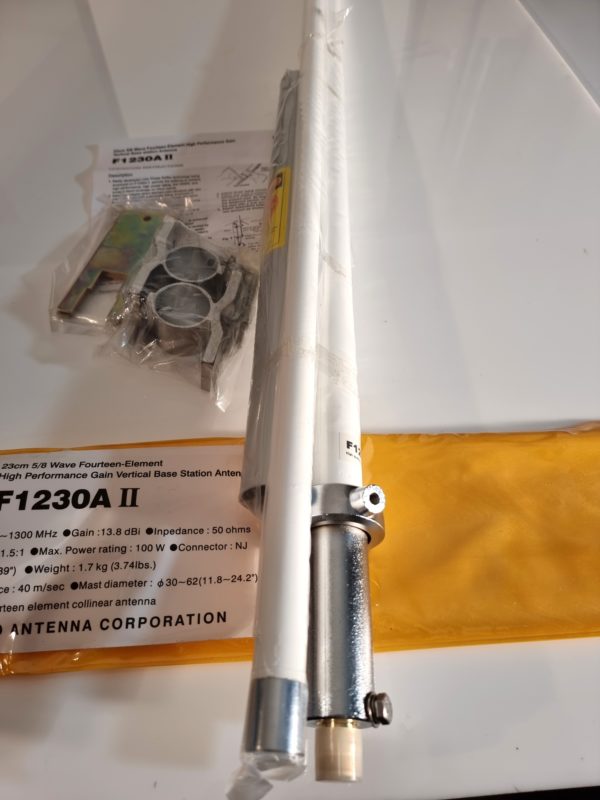

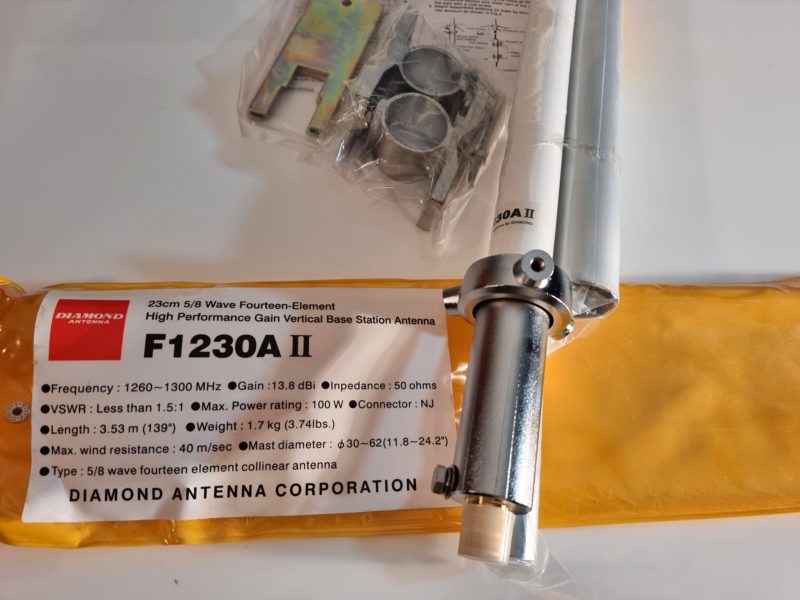

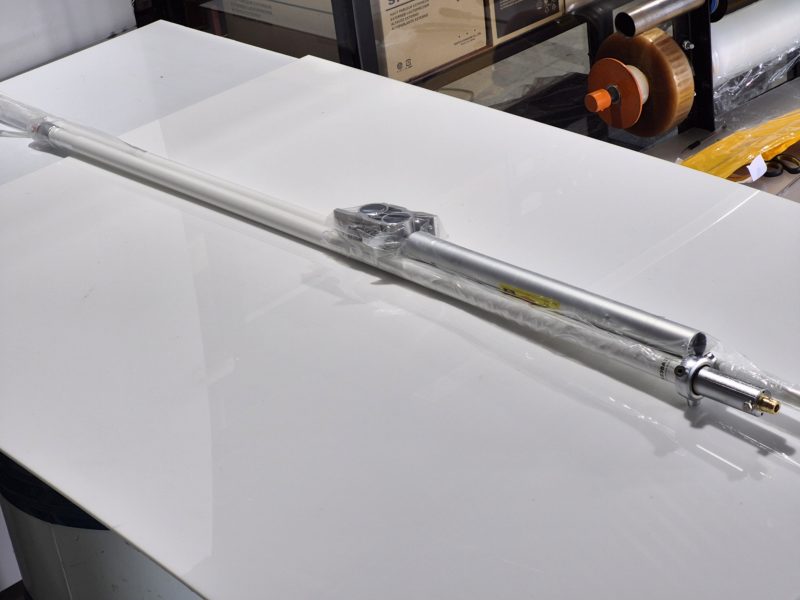

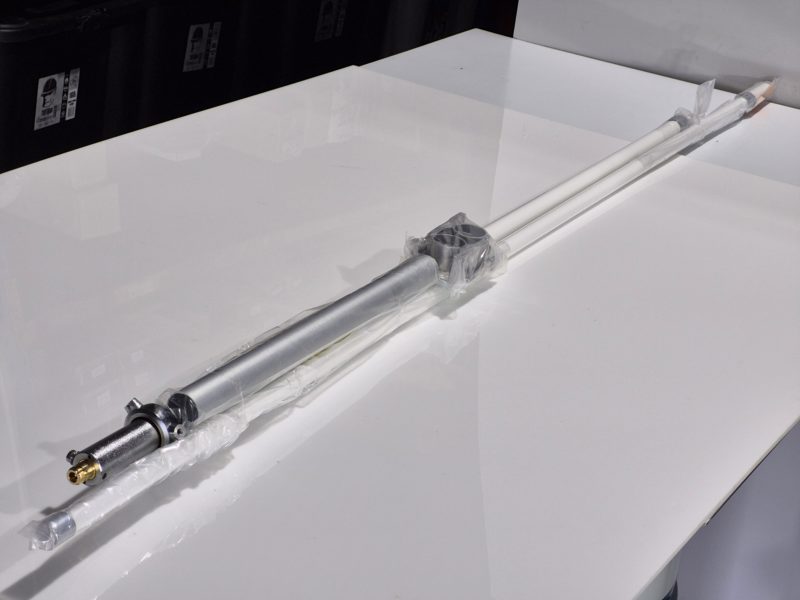

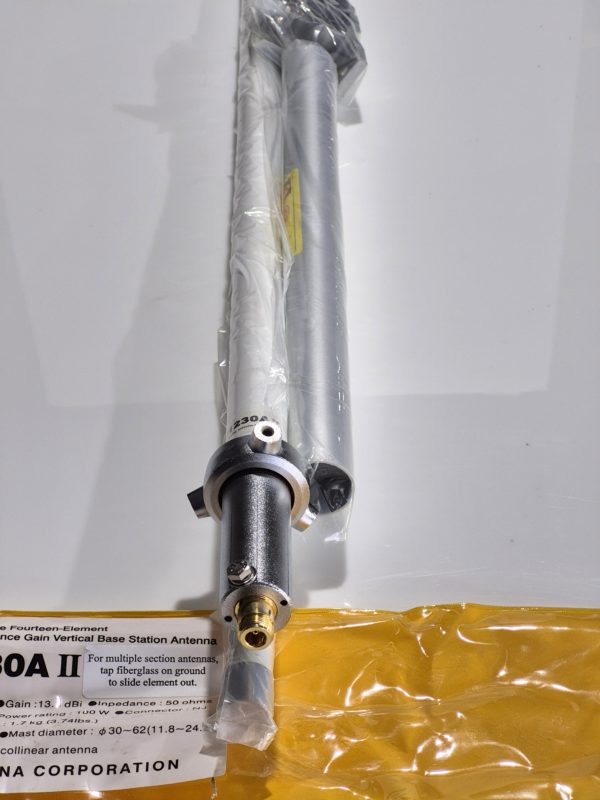

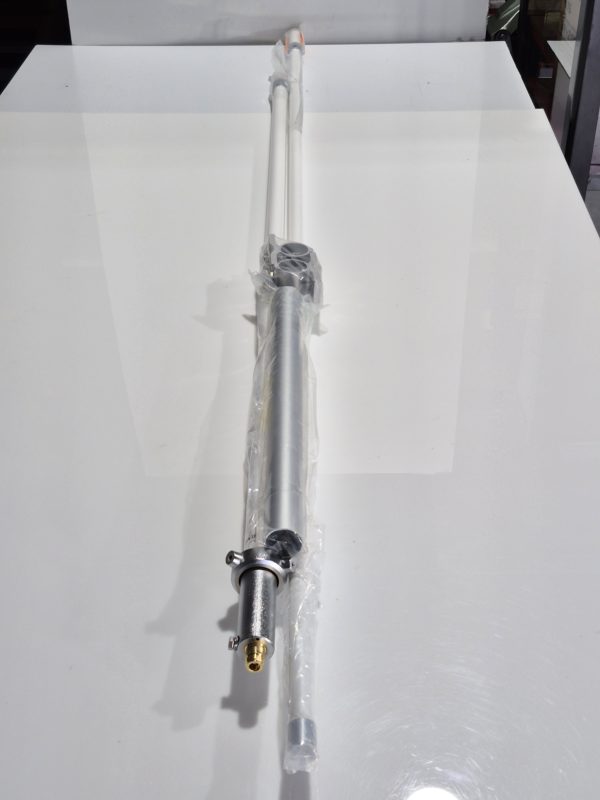

F-1230All: The Diamond F-1230A2 Monoband Antennas are ideal for repeaters, beacons, and similar projects due to their impressive specifications. With a frequency range of 23 cm and a gain of 13.8 dBi, these antennas provide reliable performance. They feature a stacking of 14 x 5/8 λ, N connector, and can handle a maximum power of 100 W.
Specifications;
Frequency: 1260-1300MHz
Gain: 13.8dBi
Power rating: 100W SSB Max
VSWR: Less than 1.5:1
Impedance: 50 Ohms
Rated wind velocity: 40m/sec.
Type: 14×5/8 wave colinear
Mast diameter accepted: 30mm to 62mm
Connector: N type
Length:3.06m / Weight:1.15kg
