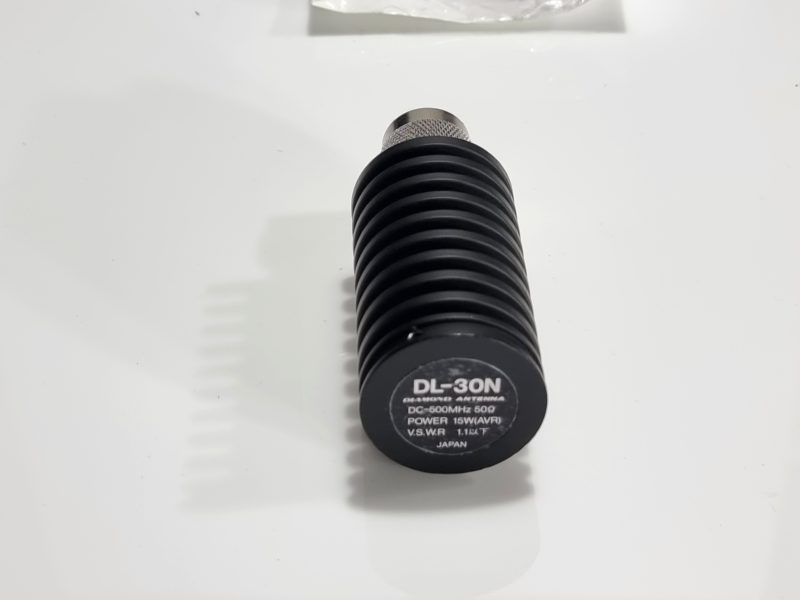

Diamond DL-30N Compact Dummy Load

$120.00

Description

DL-30N: Diamond antenna compact DL-30N dummy load lets you test your platform without tethering with a test stand. Capable of 15 Watts continuous power or up to 100 Watts for short periods of time, these DL-30N loads are available with N-Type connectors. These units provide your amateur radio transmitter with a 50 Ohm load and a maximum ROS of 1.15: 1 over their entire frequency range. Use them to verify output power, compare your antenna efficiency to a known standard, or with your wattmeter to get tuned up.
Specifications:
Frequency: DC to 500 MHz
Rated Power: 15 Watts continuous, 100 Watts peak

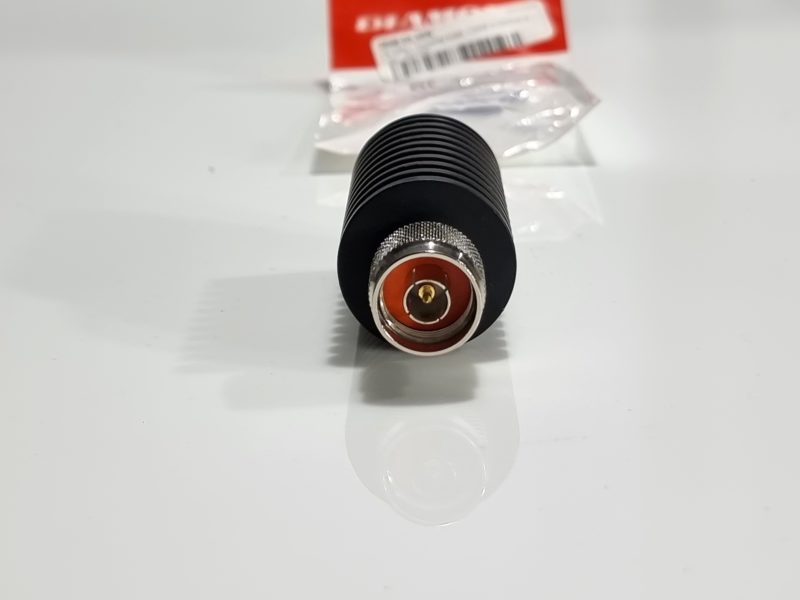

Connector: N-Type (male)
Impedance: 50 Ohms
VSWR: 1.15:1 maximum
Dimensions: 30mm Diameter x 75mm Length (1.18 x 2.95 in.)
