Description

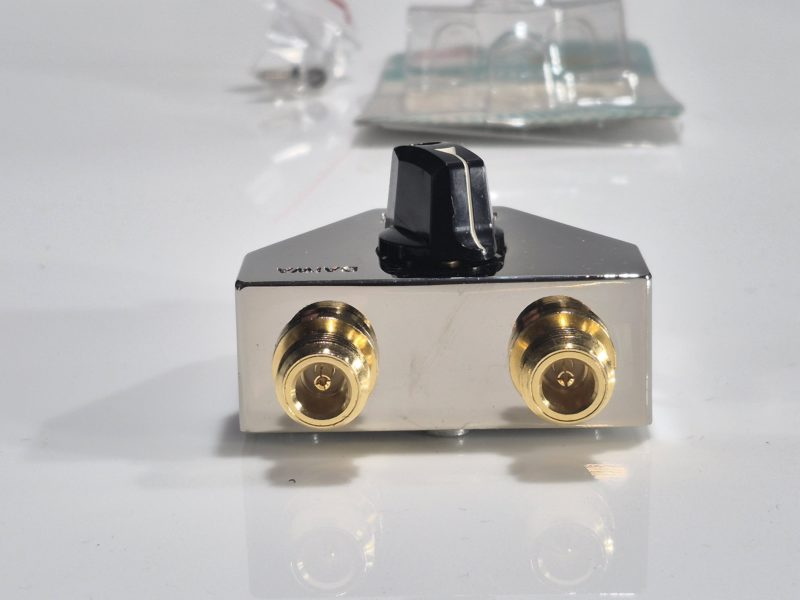

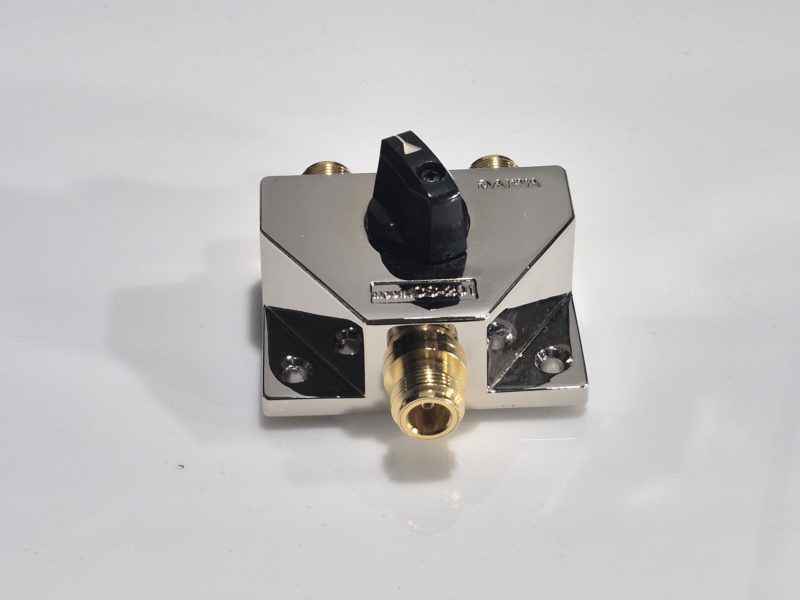

CS-201GII: High quality antenna coaxial switch, 2-port, N Female.
Specifications:
Frequency Range: DC / 2-GHz.
Power Range:
1.5kW (DC to 30 MHz)
500W (150 to 600MHz)
250W (500 to 1,000Mhz)
150W (1.0 to 2GHz)
Insertion Loss: Less than 1.2dB at 1.2GHz
Connector: Gold plated N-type
