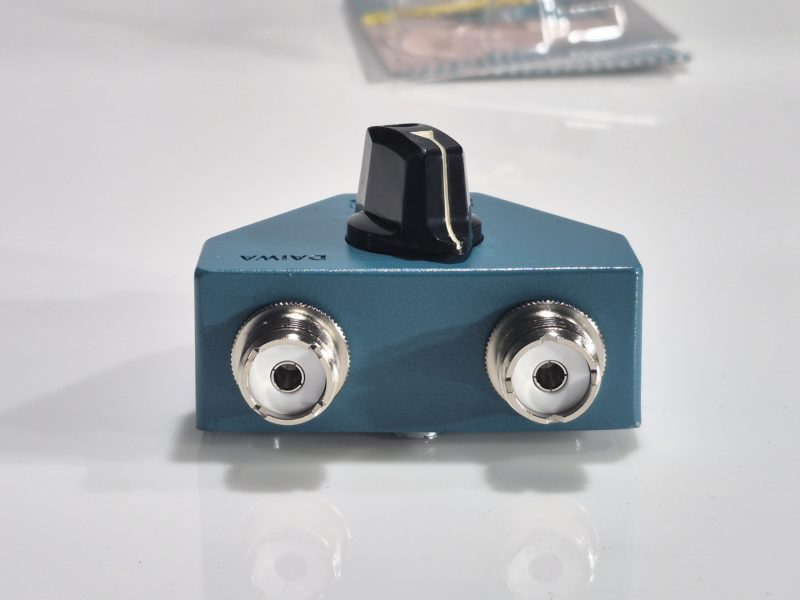

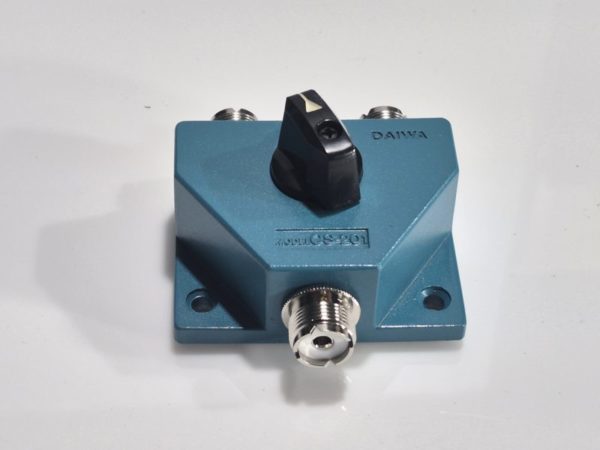

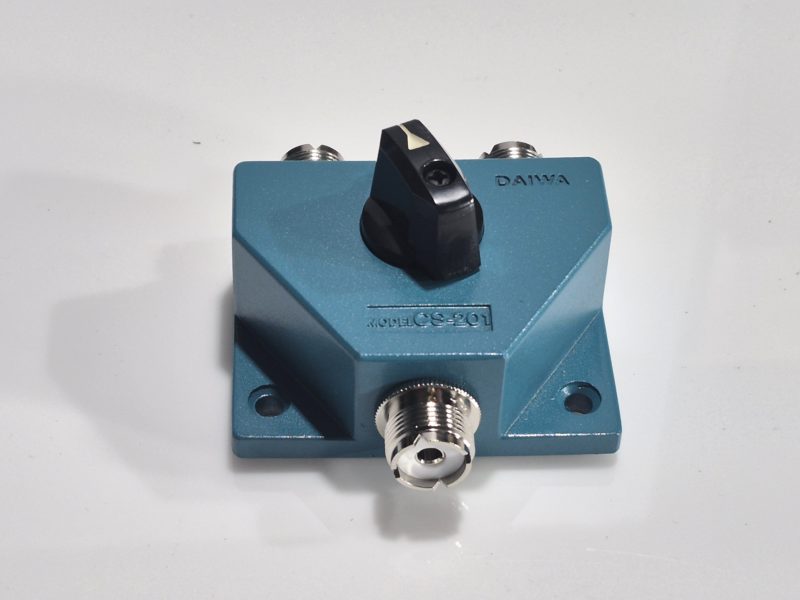

Daiwa CS-201A Antenna Coaxial Switch

$85.00

Description

CS-201A: The CS-201a is a high-quality coaxial switch with excellent high frequency RF characteristics. It is built in a heavy duty die-cast metal. PAT.1565157 Unused circuits are automatically grounded and cavity construction.

Specifications:
Frequency Range: (up to): 600MHz
Power Rating: 1.5kW
Frequency Range Power Rating: (CW): 1.5 KW (DC-30MHz), 1KW (30-150MHz), 500W (150-600MHz)
Insertion Loss: 012dB (DC-1,000MHz)
Isolation: 60dB (DC-600MHz)
V.SWR: 1.2 (600MHz)
Impedance: 50 Ohms
Connector: SO-239, Output Port:2
Weight: 0.43kg
