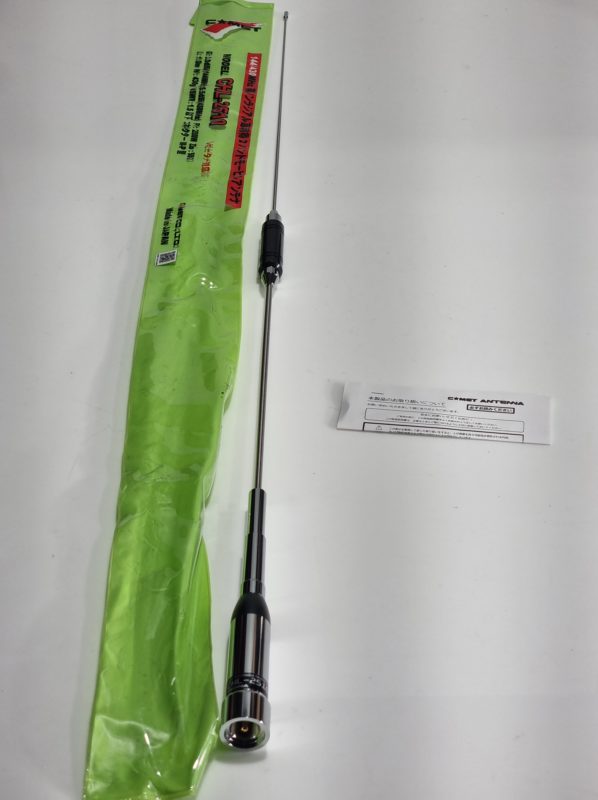

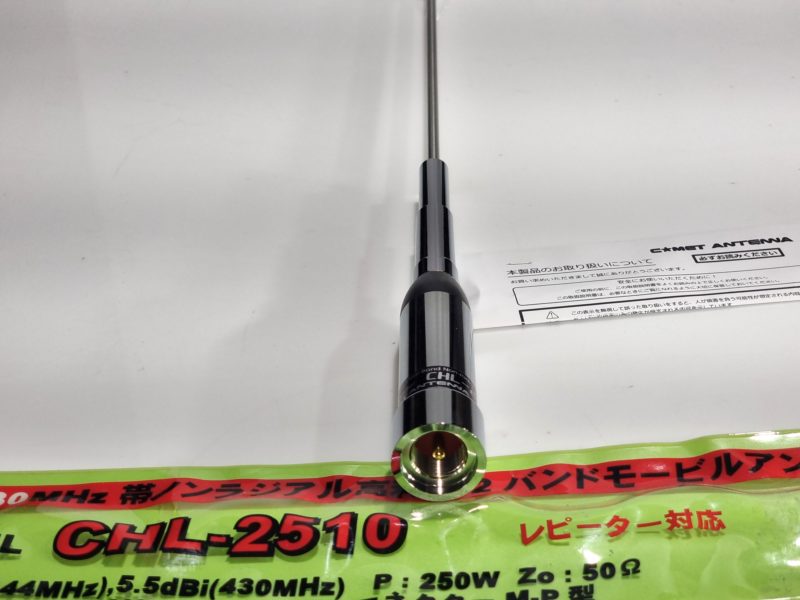

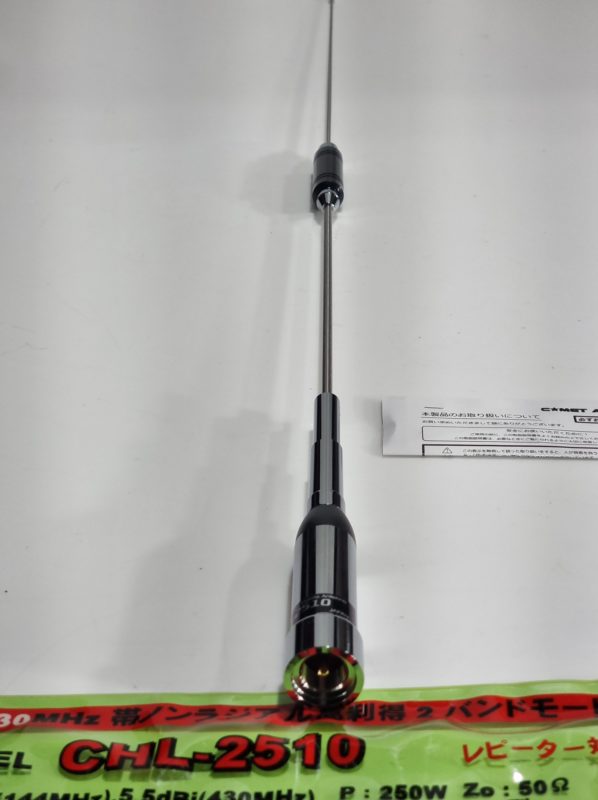

Comet CHL-2510 2/70cm Mobile Antenna



CHL-2510: The Comet CHL-2510 is for its length of only around 100cm a very good 2m/70cm dual band mobile antenna with articulated joint and stainless steel radiator. Highly resilient up to 250 watts transmission power!
In addition to the two amateur radio bands 2m and 70cm, the antenna has additional reception areas.
100 – 170 MHz – With some limitations – 50-200 MHz / 350 – 470 MHz – (typical 300 – 500 MHz)
This makes the Comet CHL-2510 antenna interesting not only for scanner users, but also for use with the ICOM IC-706MK2, IC-7000 or FT-857D if only the 6m band is needed in the RX.

RX and TX frequency ranges: 144 / 430 MHz – 2m / 70cm amateur radio bands / additional RX frequency ranges: 100 – 170 MHz and 350 – 470 MHz
Gain: 2m 3.0dBi / 70cm 5.5dBi
Max. transmit power: 250 watts!
Impedance: 50 Ohms
Lambda: 1/2 on 2m and 2x 5/8 on 70cm tape
Radiator length: 100cm
Weight: 430g
Radiator connection: PL
Typically achievable SWR: <1.5:1
Material: Included high quality stainless steel
Special features: joint, stainless steel, high resilience, excellent workmanship
