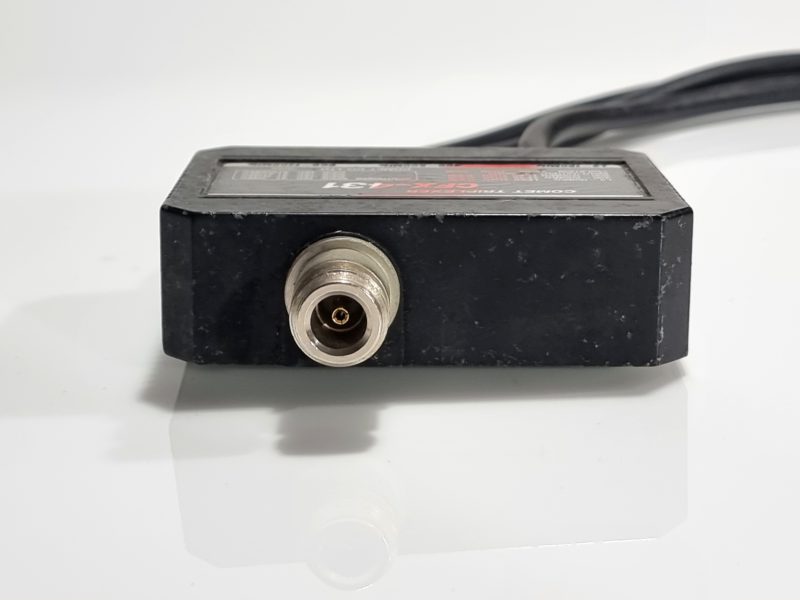

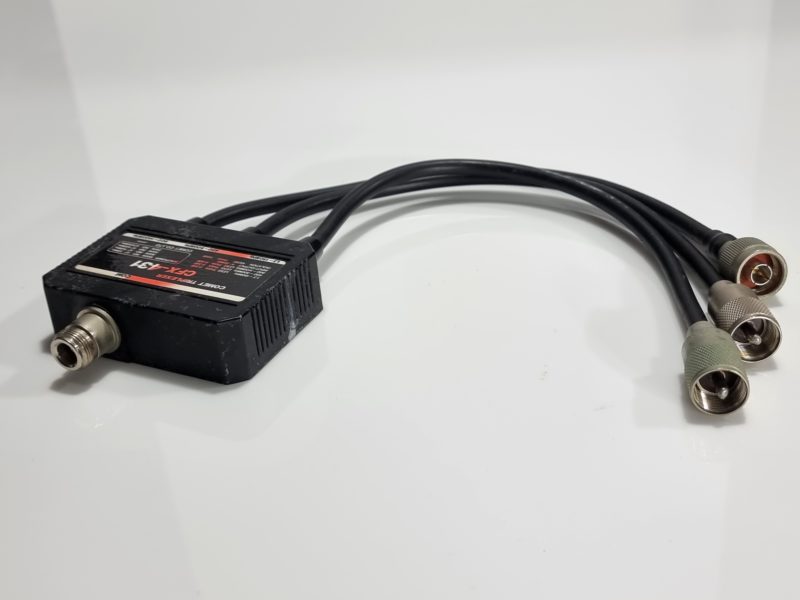

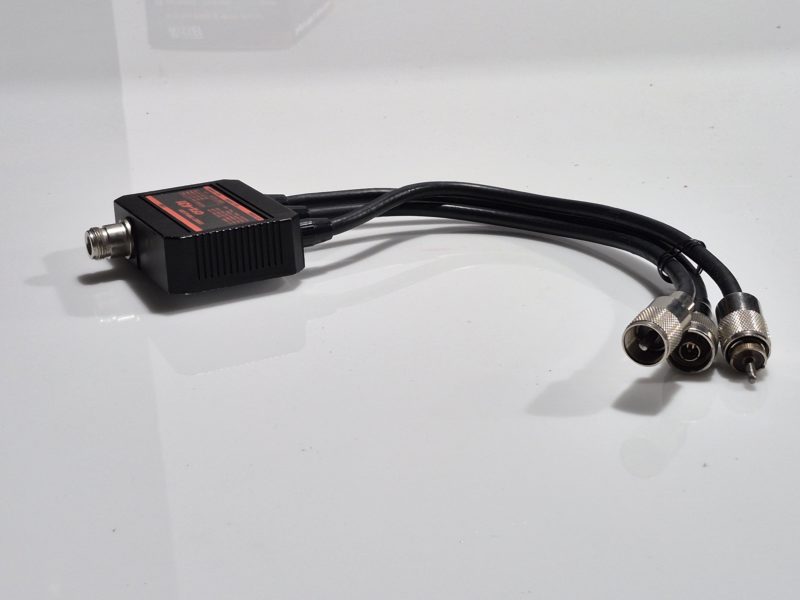

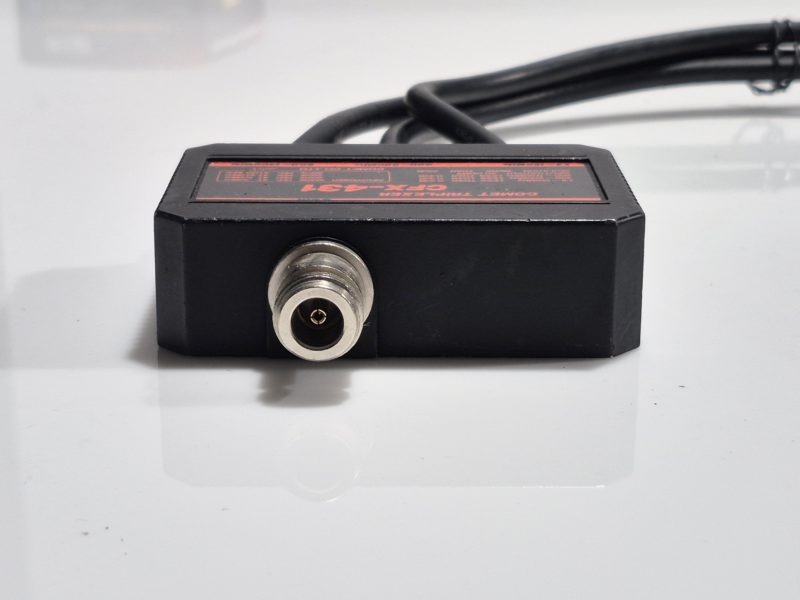

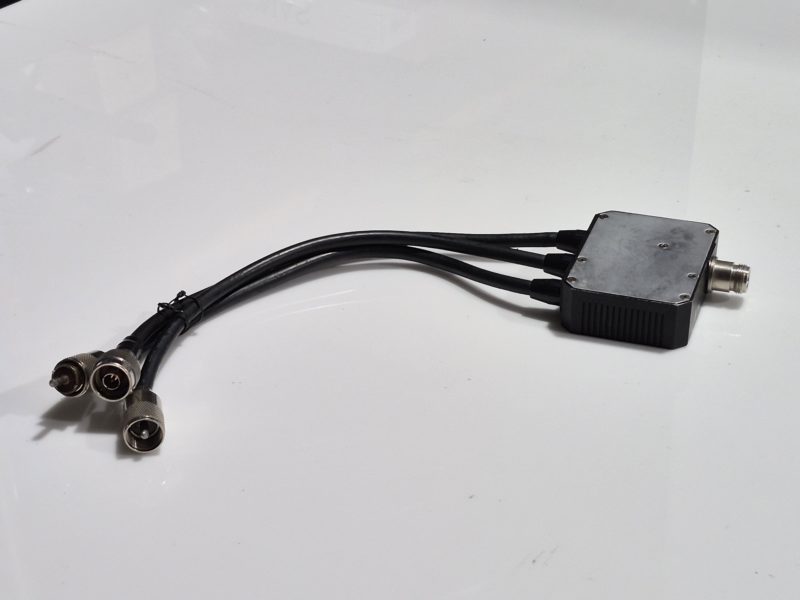

Comet CFX-431B Antenna Triplexer

$89.00

Description

CFX-431B: Comet calls these triplexers, but they are also referred to as combiners or splitters.
They are basically band-pass filters, simultaneously passing RF in both directions through the common connector while the band-pass filters provide a high degree of isolation between ports.
Features:
TX and RX from three radios at the same time into a single triband antenna
Combine a triband radio with separate outputs into a single triband antenna
Allow a single coax run into three antennas at the top of the tower, and three radios at the bottom, by using a triplexer at both ends of the coax run, avoiding cost and weight

Specifications:
Isolation: 50 dB
Frequency: 1.3-150 MHz / Insertion Loss: 0.25 dB / Power: 1000W PEP
Frequency: 350-500 MHz / Insertion Loss: 0.25 dB / Power: 500W PEP
Frequency: 840-1400 MHz / Insertion Loss: 0.3 dB / Power: 200W PEP
Connectors: N-Female (Common) / PL-259 (Low-Pass) / PL-259 (Mid-Pass) / N-Male (High Pass)
