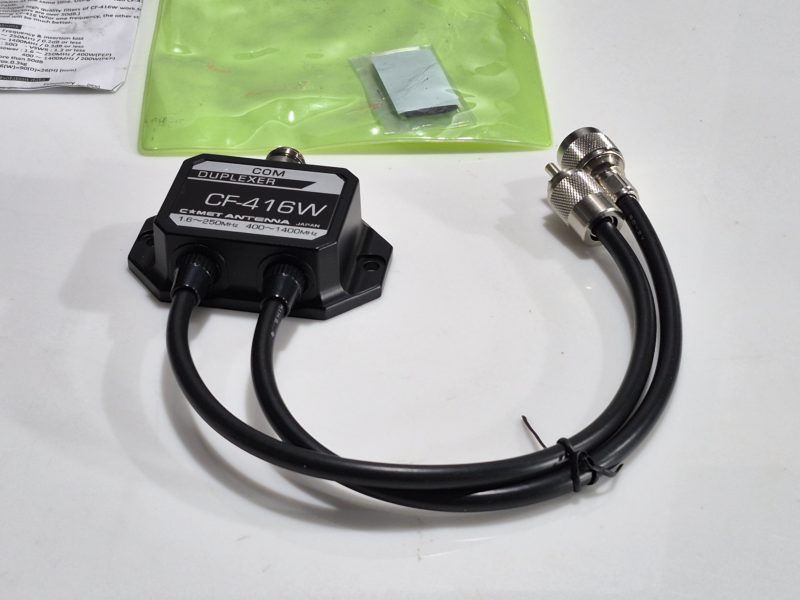

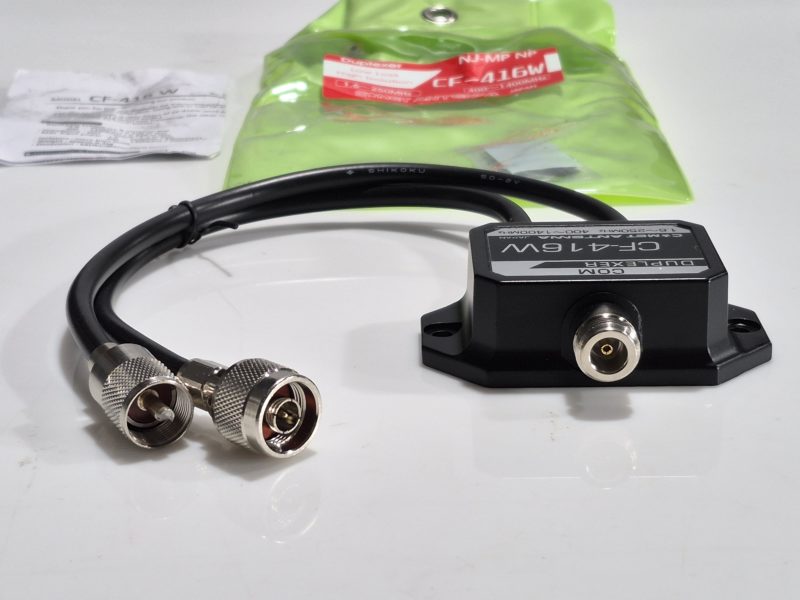

Comet CF-416W Antenna Duplexer



CF-416W: If you are in need of splitting off your HF, VHF, or UHF signals, then Comet Duplexers are what you are looking for.
Sometimes referred to as combiners or splitters, these duplexers are basically band-pass filters, simultaneously passing RF in both directions through the common connector,
while the band-pass filters provide a high degree of isolation between ports.

Low Pass Frequency Coverage: 1.6-250MHz
High Pass Frequency Coverage: 400-1400MHz
Low Pass Loss: 0.2dB
High Pass Loss: 0.3dB
Low Pass PEP: 400 Watts
High Pass PEP: 200 Watts
Isolation: 30dB
Mix Connector: Type N, Female
Low Pass Port Connector Type: UHF Male, PL-259
High Pass Port Connector Type: Type N, Male
