NOTE: STORED ITEM BRAND NEW IN THE BOX NEVER USED

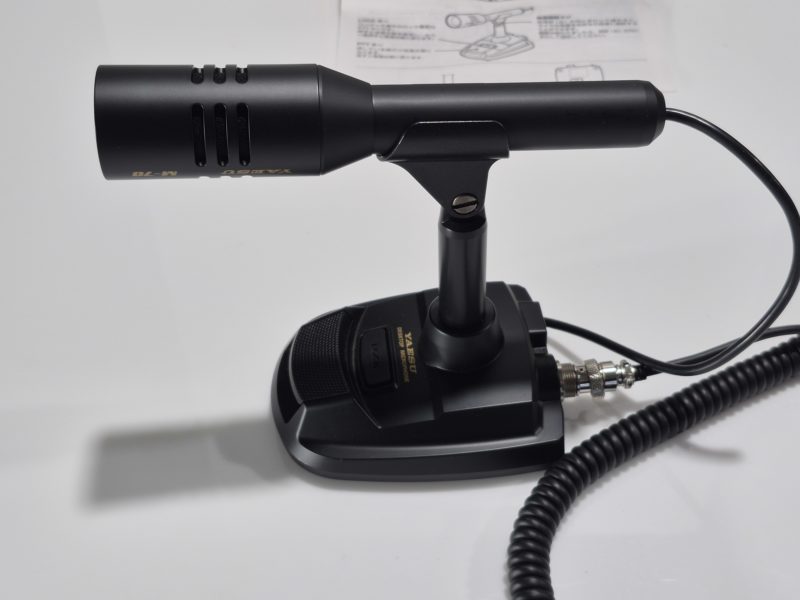

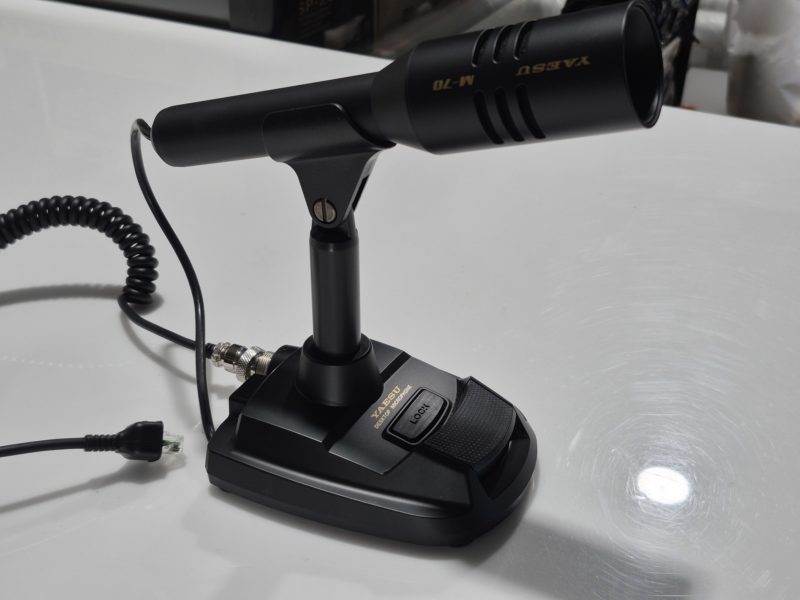

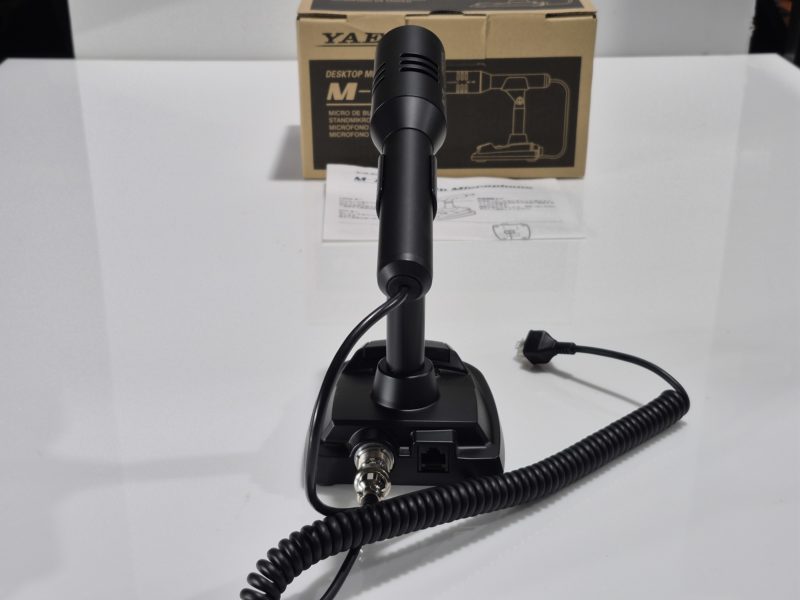

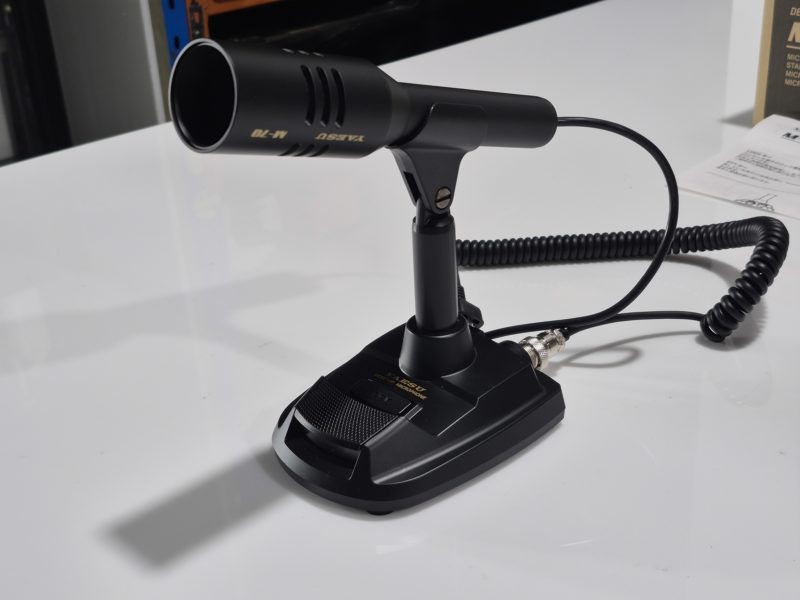

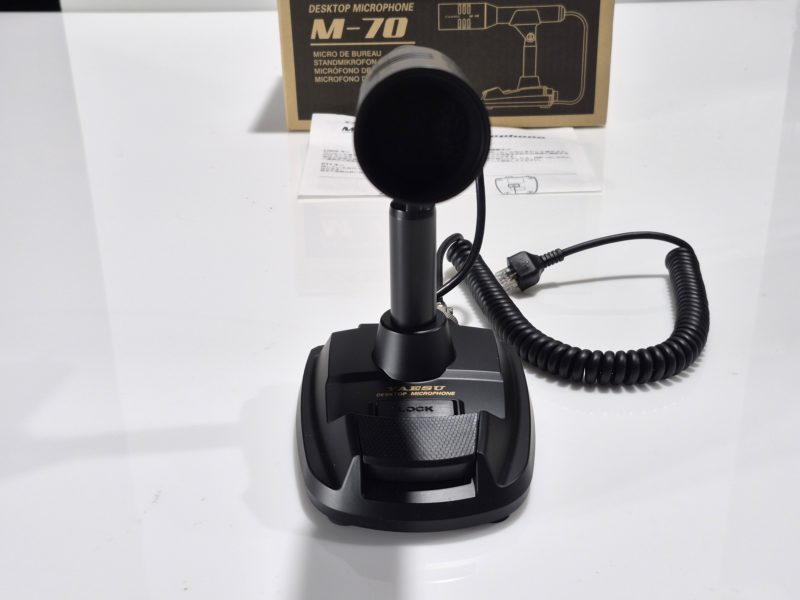

M-70D: The Yaesu M-70D is an entry-level, high-clarity desktop microphone designed for modern Yaesu HF transceivers. It incorporates technology from the flagship M-1 model, featuring a built-in low-cut filter, an isolation transformer, and a smooth, non-contact push-to-talk (PTT) mechanism.
Features:
Using condenser microphones, specially tuned frequency response, can generate clear audio required for radio communication
Unidirectional large-diameter microphone element, which can suppress the coverage of environmental sound, and has an excellent frontal sound pickup effect
Shielded microphone head adopting metal vapor deposition electroplating process
Isolation transformer integrated in the circuit board to improve audio quality
Built-in low-cut filter creates clear audio characteristics by shaping low-frequency response
Stable large base bracket, adjustable up and down front and rear angles
Adopt the long-stroke non-contact PTT key used by the advanced reference microphone M-1, with non-slip honeycomb surface treatment
One-touch PTT lock button, convenient for long-term calls
Compatible with Yaesu shortwave radio stations with 8-pin round and 8-pin crystal head microphone plugs
Specifications:
Microphone type: Electret condenser microphone
Working voltage: DC5.0V±10%
Working current: 15mA typical
Frequency response: 30~17000Hz
Sensitivity: -60dB (1kHz 0dB=1V/1Pa)
Microphone Impedance: 600Ω
Dimensions: 106 x 170 x 126.5mm/4.2 x 6.7 x 5″
Weight: 450g / 1LB
Compatible Models:
FTDX10
FTDX101
FTDX9000
FTDX5000
FTDX3000D
FTDX1200
FT-1000MP
FT-2000D
FT-817ND
FT-818ND
FT-847/857
FT-450D
FT-891
FT-897D
FT-900
FT-920
FT-991A
FT-950
