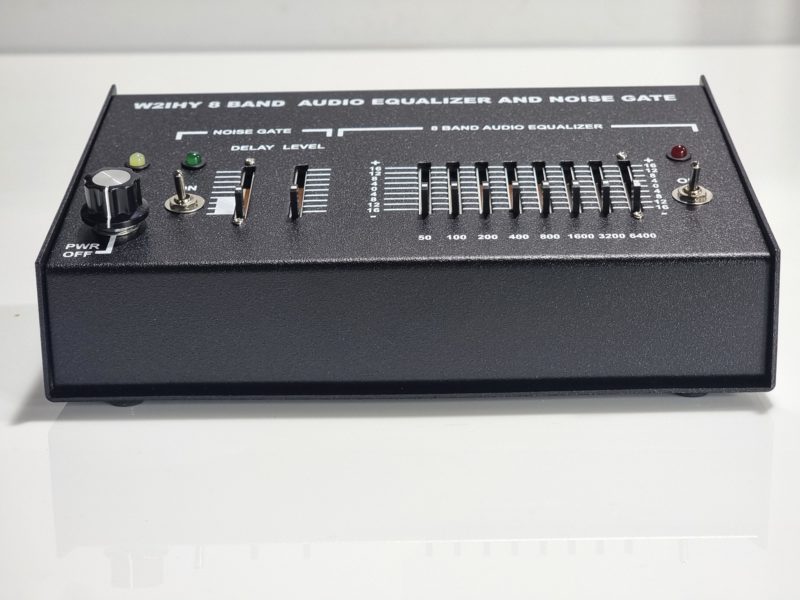

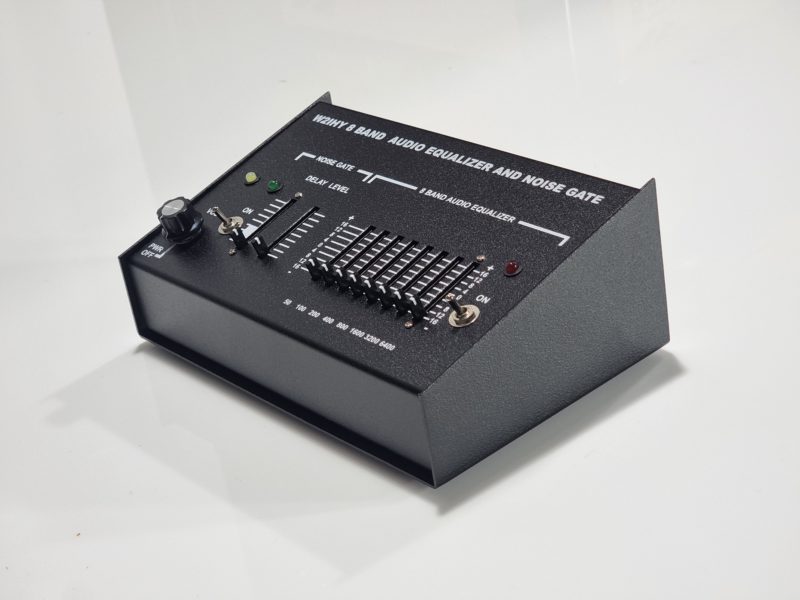

W2IHY Technologies 8-Band Audio Equalizer



8-EQ: Finally, professional audio processing technology is applied to the unique requirements of amateur radio operators! The W2IHY 8-Band Audio Equalizer and Noise Gate is an easy to use, sophisticated unit loaded with high performance features. This thoughtfully designed, quality constructed station accessory performs three important functions, all in one good looking, low- profile package: The Audio Equalizer gives you sophisticated control of the tonal qualities of your microphone and, thus, of your transmit audio quality. The range of equalization possibilities is virtually unlimited, letting you custom-tailor your audio just the way you want.

The Noise Gate is the long-needed solution for noisy operating environments. Background noises that used to make copy difficult or unpleasant on the other end of the QSO are eliminated or greatly reduced. The Universal Microphone and Radio matching capabilities are terrific. Match practically any microphone of any impedance to practically any radio’s microphone input. Adjust the wide-range input level for optimum drive to the built-in microphone amplifier. Adjust the output to give your radio the ideal signal level for best performance of microphone gain, alc, compression and smooth VOX operation. A comprehensive selection of microphone jacks means plug and play for most microphones. Instant microphone compatibility with Yaesu, Kenwood and Icom microphones via a 3-position switch.

Features / Specifications:
Black finish with white lettering.
Attractive in any shack
LED indicator and on/off switch
8-Band audio equalizer for transmitter microphones (50, 100, 200, 400, 800, 1600, 2400, 3200 Hz)
Extremely effective noise gate eliminates background noise
Selectable microphone input impedance 200 Ohm, 600 Ohm, HI-Z
Microphone input gain (wide-range input level control adjusts internal microphone amplifier gain)
Dual selectable microphone inputs allows connection to two different radios of your choice
PTT input (RCA jack) adds push to talk control for non-PTT microphones
Built in headphone monitor (produces ample high-quality audio for making equalization and noise gate adjustments)
Designed specifically for amateur radio use adjacent to transmitters and linear amplifiers

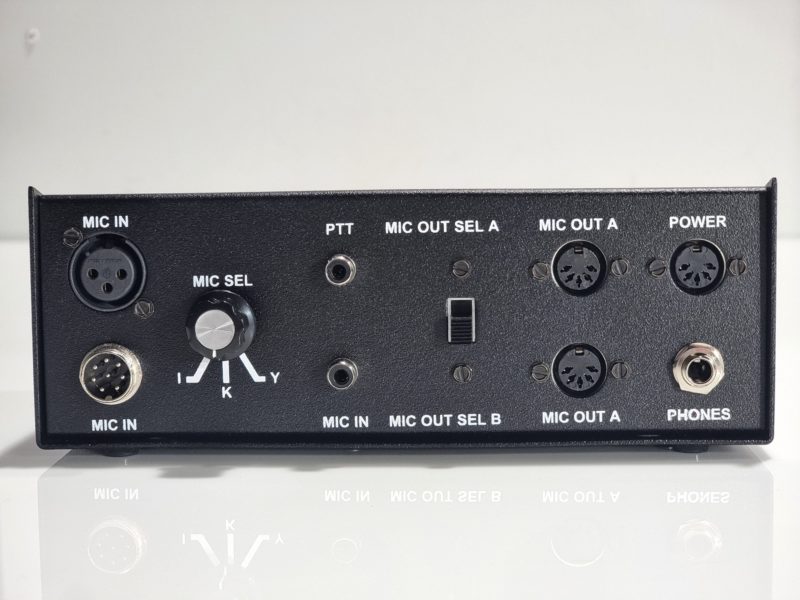

Microphone input: 8-pin, XLR female, RCA phono
Supply: 7-14V (100ma) wall transformer provided
Size: 76 mm x 203 mm x 195 mm (height x width x deep)

W2IHY Technologies: Specializes in affordable audio technology for amateur radio applications.
