NOTE: NEW SHIPMENT JUST LANDED

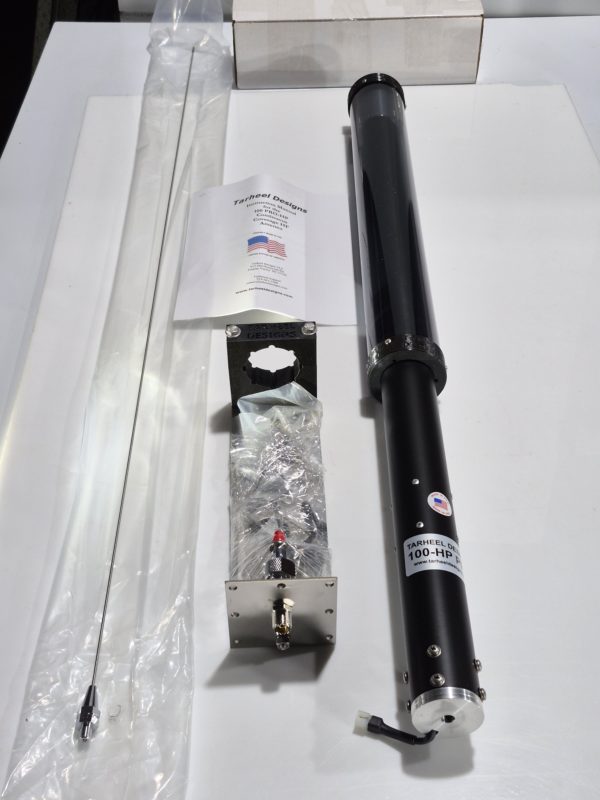

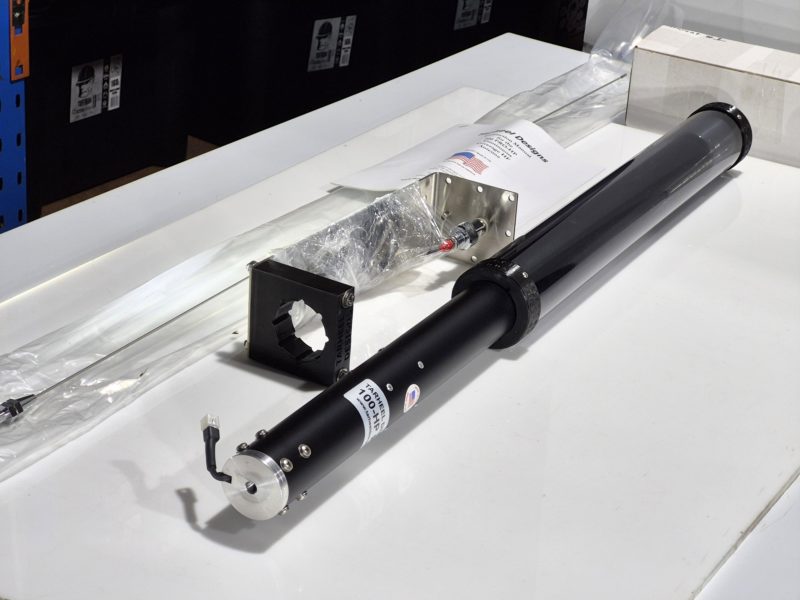

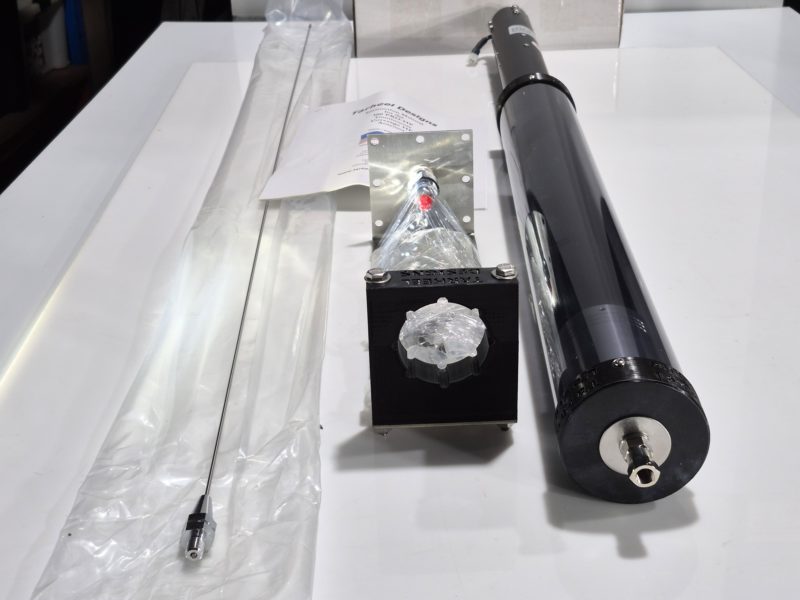

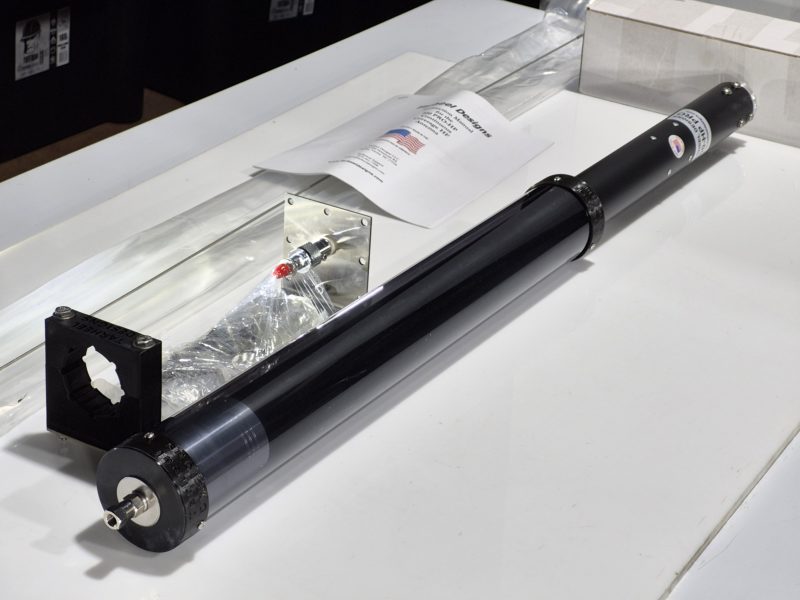

100-HP Pro: When properly installed on your vehicle the Model 100A-HP will provide continuous coverage from 3.2 to 29 MHz with the supplied 6′ whip.
The Model 100-HP Pro like all the Tarheel Antennas is without a doubt the best built, the best looking, best performing, highest power rating motorized antenna for it’s size and design on the market.
All of our antennas come with the sensors already pre-installed so if you decide to add one of the auto controllers (SDC-100 Simple Controller, SDC-102 Programmable Controller, Turbo Tuner) now or later everything is ready.
What makes our antennas stand above the rest is all of our CNC machined components are either aircraft aluminum or stainless steel and blueprinted, meaning you can take 100 antennas apart and mix up the parts then reassemble them and they all work the same. Our coil form is approximately 2″ in diameter and made of fiberglass. The other antenna builders know fiberglass is better but they choose not to use it because of the expense and difficulty in machining. We use 14 gauge wire for high power capability wound at eight turns an inch for maximum efficiency. The decoupler we use is CNC machined for tight tolerances with custom finger stock designed to contact 3 turns of coil all the time with over 25 lbs. of combined contact pressure. With this design you can run up to 1.5 Kw P.E.P trouble free. It’s so superior to anything else on the market.
The Pittman 12 volt commercial grade gear motor is very durable and very quiet while receive tuning.
Our weather shield is made of LexanTM. This is the same stuff used on racecar windshields and even used to make bulletproof windows.
Specifications:
Lower mast length: 3 ft.
Frequency coverage with 6ft. whip: 3.2 to 29 MHz
Power rating: 1.5 Kw P.E.P.
Typical SWR: 1.5 to 1 or less
Total height with 6ft whip at 29 MHz: 9’4″
Total height with 6ft whip at 3.2 MHz: 11’4″
Weight: 8 lbs.

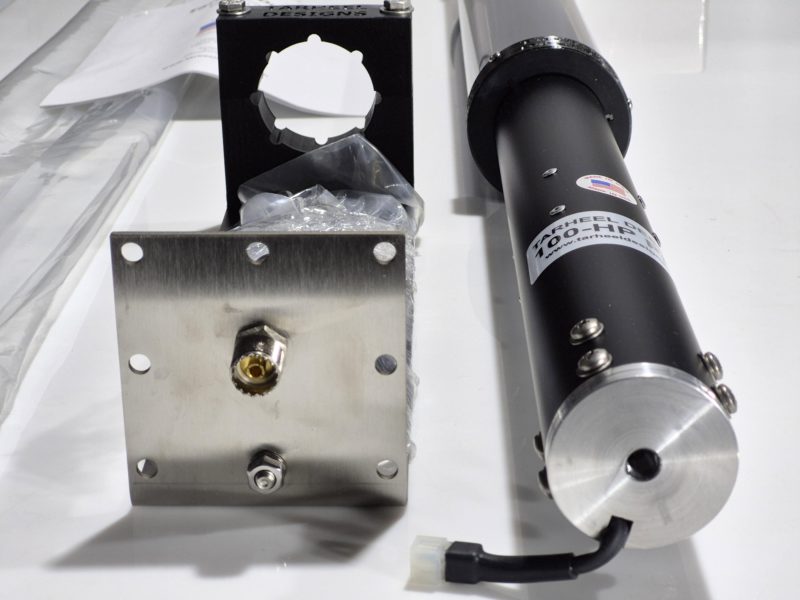

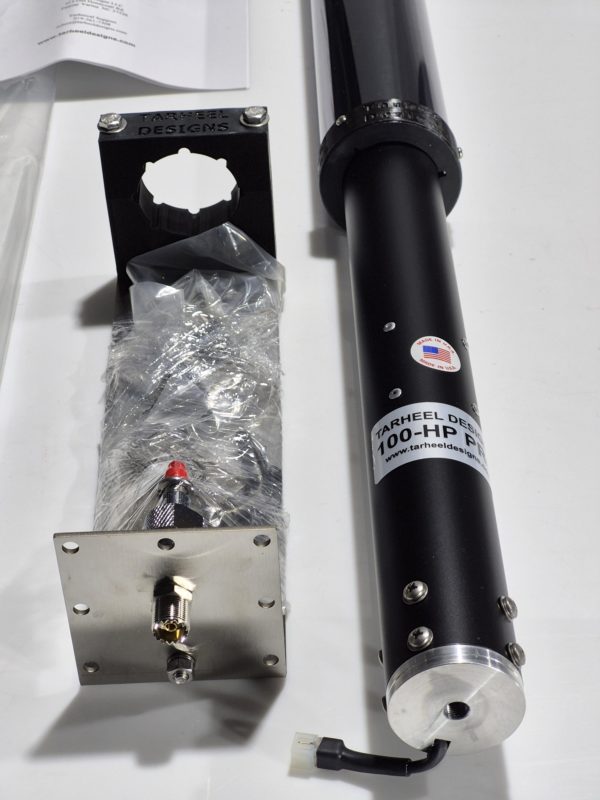

MT 1: The MT 1 Mount is made for the models 100, 200, 300 and 400 antenna. It’s made of 304 stainless steel so it’s corrosion resistant and very strong. It comes already assembled with the coax stud. Even the supplied U bolts and nuts are stainless steel. This bracket will bracket up to a 1″ industry standard pipe.
