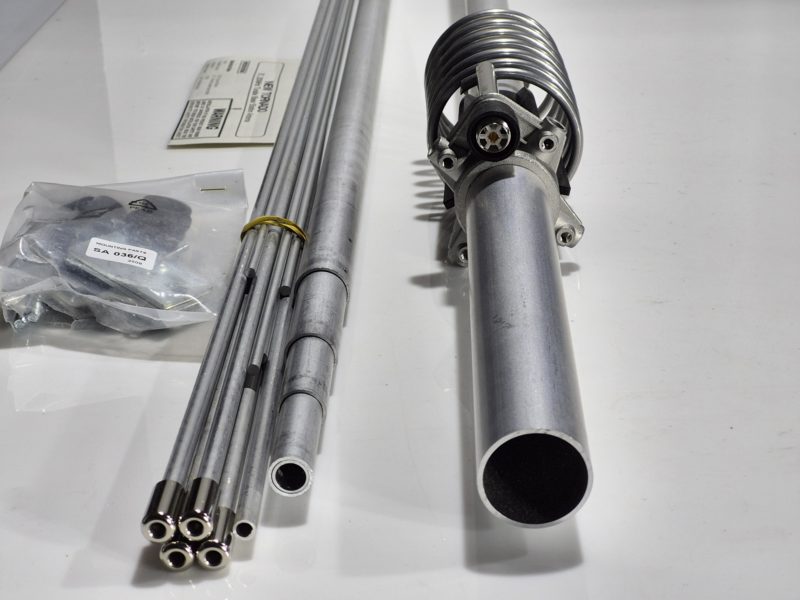

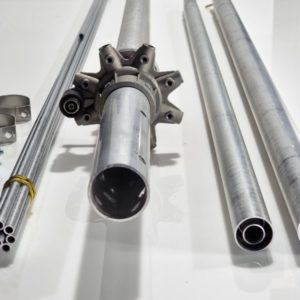

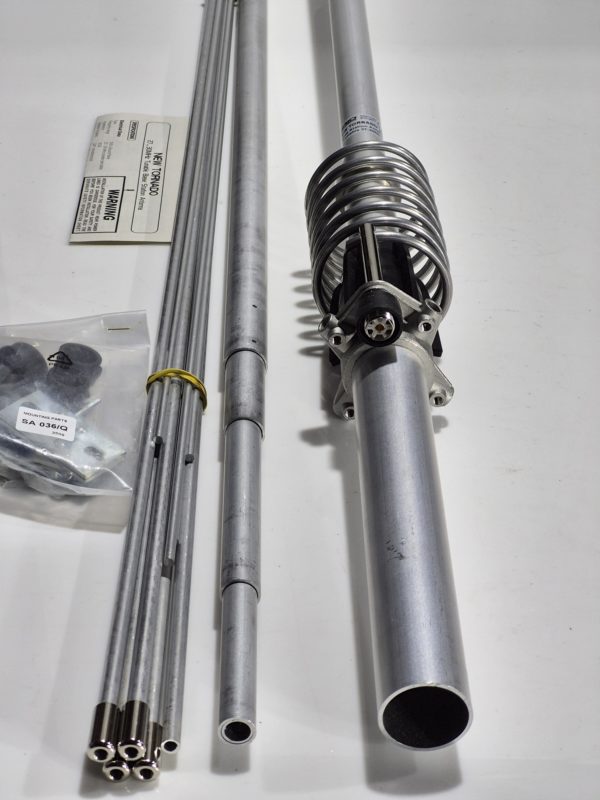

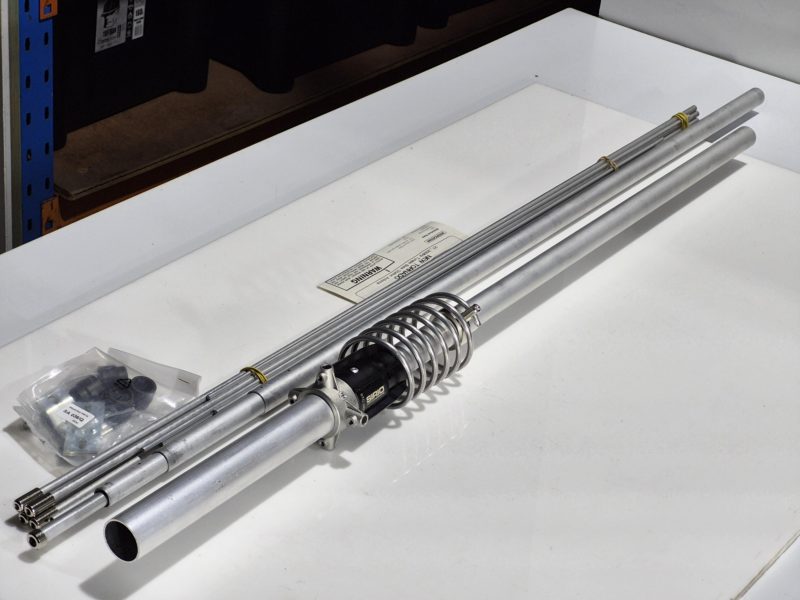

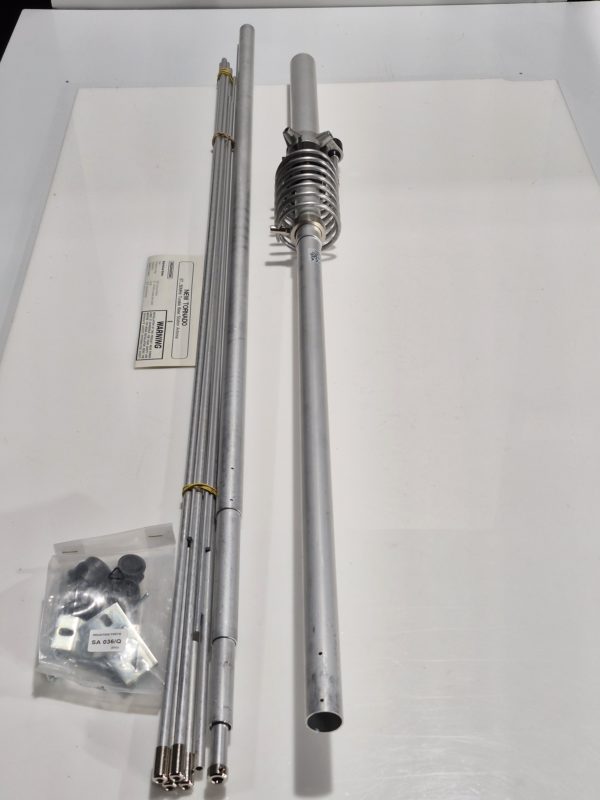

Sirio Tornado 2024 5/8 Wave Base Vertical Antenna

$320.00

Category:

Description

NOTE: SOLD OUT ON BACK ORDER

2100501.00: Even iconic products such as the Sirio New Tornado, on the market for over 30 years, are always the subject of study and analysis for continuous improvement to make them increasingly responsive to the requests of our customers. This analysis led us to redesign the plastic antenna insulators which represent the ‘heart’ of the product. They have been completely redesigned to make them more robust thanks to the creation of 5 new reinforcing fins and a new sealing system. The plastic material used for molding is a black polycarbonate, a versatile and robust material that guarantees electrical and mechanical performances over time, also thanks to the new pre-molding thermal conditioning. These modifications will guarantee maximum durability of the product over time. New Tornado 2024 with its useful bandwidth of 26.4-30 Mhz, is ideal for either CB or Amateur operation and will give great performance. Its quality build will also ensure years of use. The Tornado has been one of our best selling CB / Amateur base station antennas, and we can highly recommend it.

Features:
Sirio Tornado 2024 base antenna
Polarization: Linear vertical
Factory tuned at mid-band
Tunable by whip length adjusting
Low radiation angle for excellent DX
High power handling capability
Whip equipped with waterproof jointing sleeve
Made of aluminium alloy 6063 T-832
New improved ground plane

Specifications:
Frequency range: Adjustable from 26.4 to 30 MHz
Real gain: 1.2 dBd, 3.35 dBi
Bandwidth @ SWR ≤ 2: ≥ 1300KHz
Maximum power: 1000 Watts (CW) continuous, 3000 Watts (CW) peak
Type: 5/8 λ ground plane
Materials: Aluminium, Steel, Nylon
Height (approx.): 7230 mm (23.75 Ft. )
Weight (approx.): 2900 gr ( 6.5 lbs. )
Support diameter: Ø 35-42 mm.
Wind surface: 0.16 m²
Radial Length (approx.): 2000 mm ( 6.5 Ft. )
Wind load / resistance: 187 N at 150 Km/h / 130 Km/h
Mounting mast: Ø 35-42 mm ( 1″ to 1.25″ )
Connector: UHF-female (PL259)
Feed system: Transformer / base
Polarization: Linear vertical
