Sirio SG-AC/U Mobile Antenna Mounting Assembly

$79.00

Description

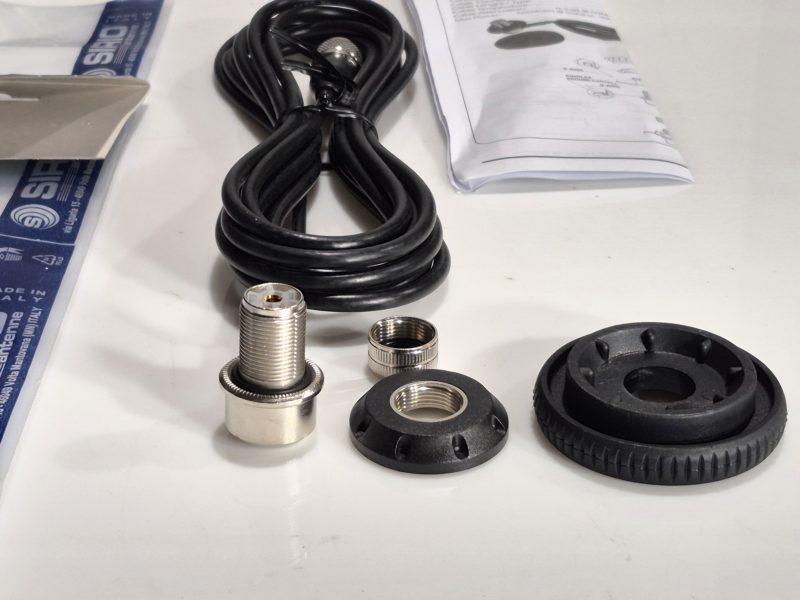

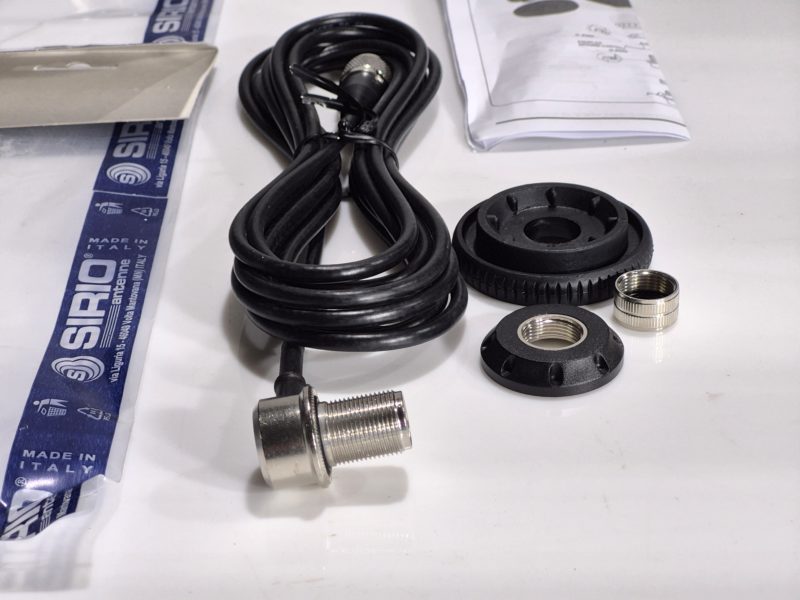

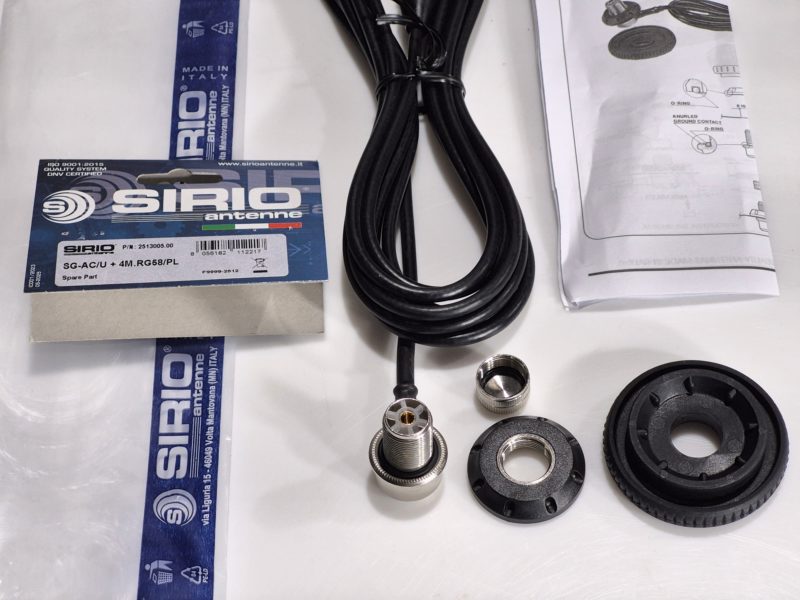

SG-AC/U: Sirio mobile body mount with a SO-239 angular stud. It has 4m length of RG-58 coaxial cable and is terminated with a PL-259 connector. Ideal for amateur radio antennas.

Specifications:
Frequency range: DC to 500 MHz
Power Max: 500 W @ 50 MHz
Cable length / type: 4 m (13.12 ft) / RG-58
Antenna connector: UHF Female, Gold plated centre pin PTFE
Overall size: Ø 38 mm (1.5 in)
Mounting hole: Ø 16 mm ( 5/8 in)
Materials: Nickel plated brass, Gold plated brass, PTFE
Impedance: 50 Ohms
