Description

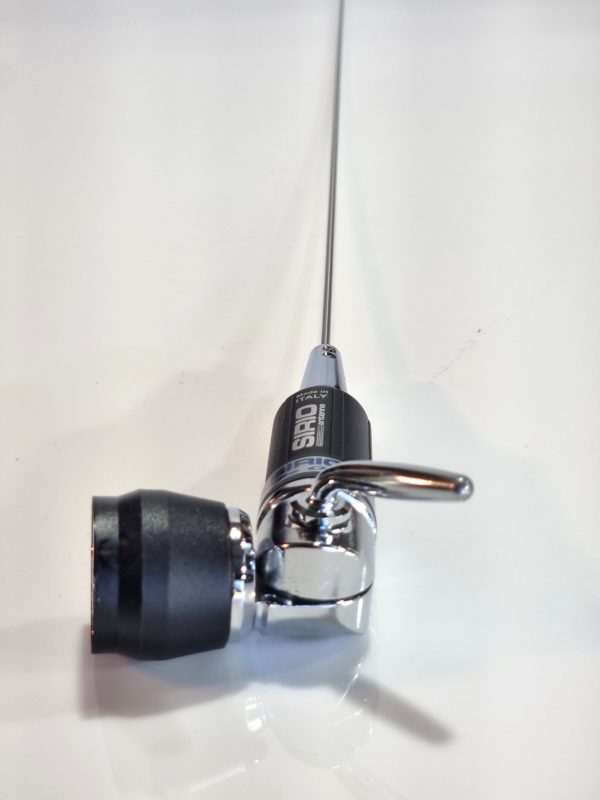

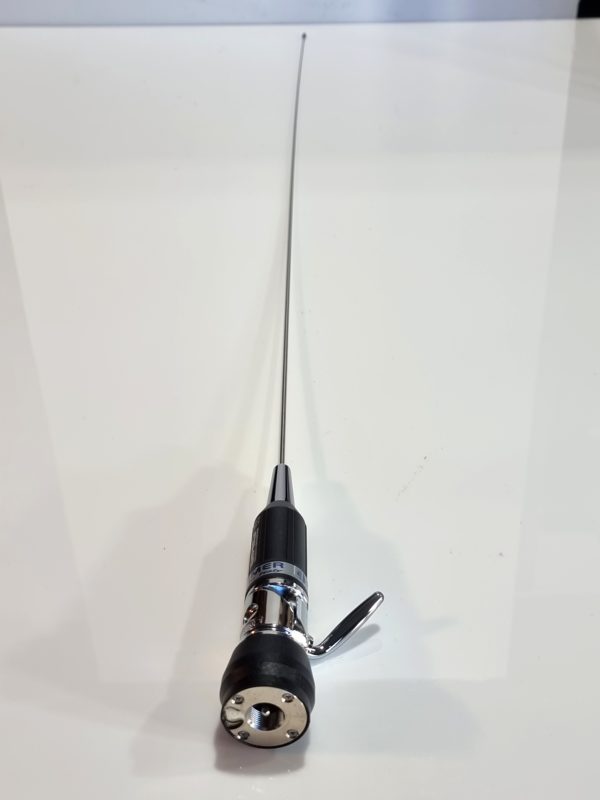

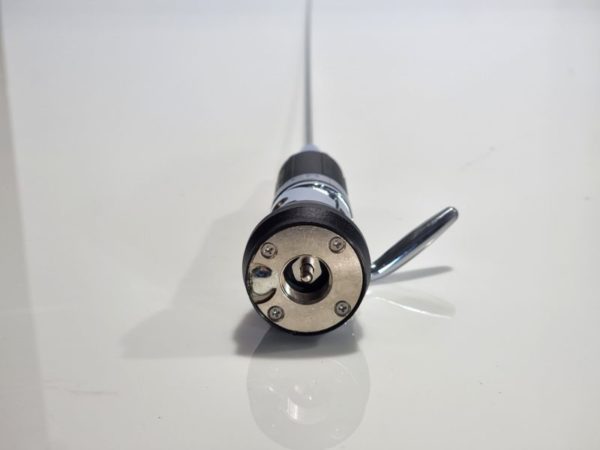

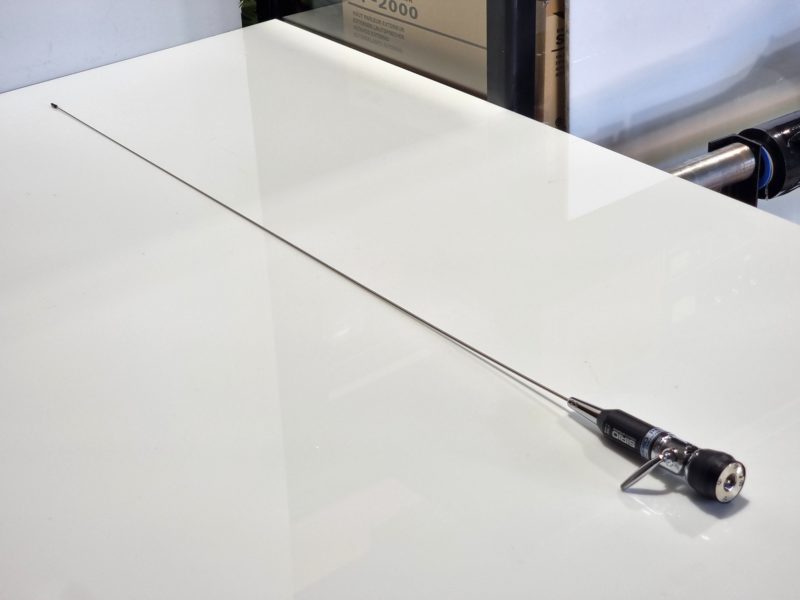

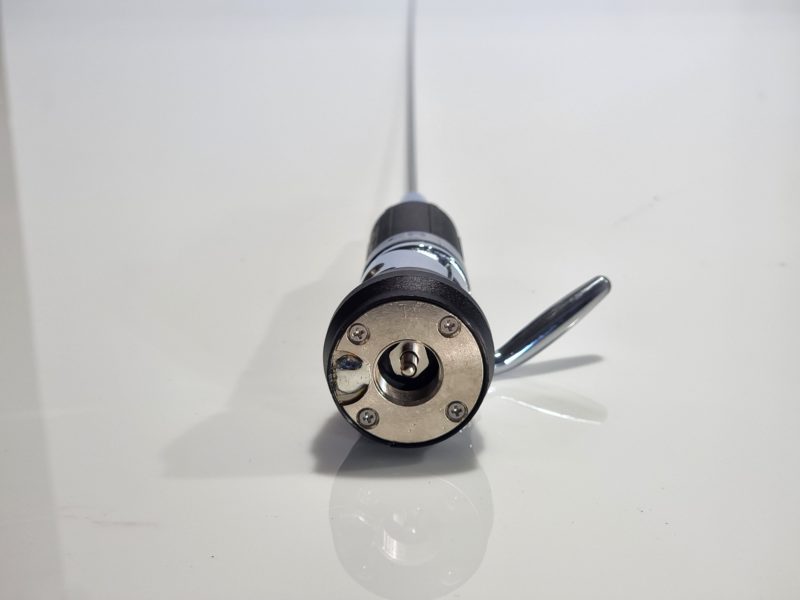

Performer P-600 PL: New high performance mobile antenna that is tunable from 27MHz to 28.5MHz, in a rugged design. This version is hole mount. The whip is stainless steel 17/7PH mounted on a base load coil that can be inclined to 90 degree or completely detachable for car-wash or anti theft measures. CB Sirio Performer P-600 antenna is compatible with any PL magnetic base. Antenna length is another very important factor that can influence the communication distance in traffic. Thus, the longer the antenna, the greater the communication distance / range. This antenna is a SO-239 fitting not a 3/8 thread.
Specifications:
Frequency range: 27 to 28.5 MHz
Type: Base loaded
Polarization: vertical linear
Bandwidth @ SWR ≤ 2: ≥ 680 KHz (60 channels)
TOS at res. : ≤ 1.2
Max power: 200 watts (Continuous use) / 1000 watts (Intermittent use).
Radiation (H-plane): 360° Omnidirectional
Protection from static discharges DC-Ground
Height (approx.): 1250 mm / 2.76ft
Weight (approx.): 600 gr
Impedance: 50 Ohms
Connector: UHF-male (PL-259)
90° inclination and adjustable whip, detachable for car-wash
Materials: Brass, Copper, Nylon, Stainless steel
