Description

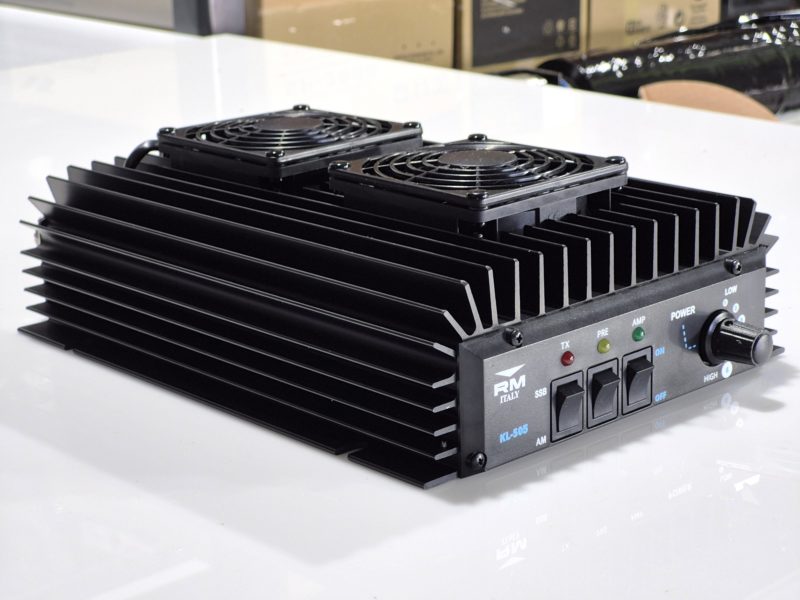

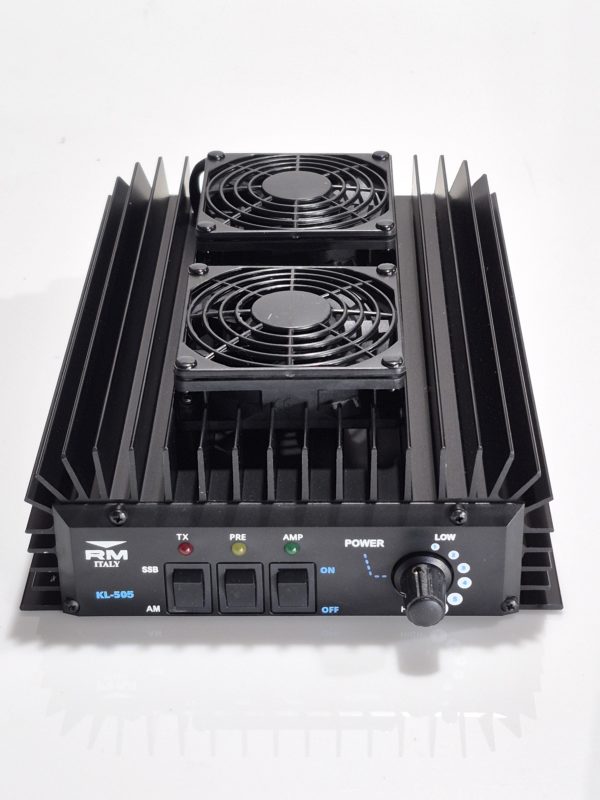

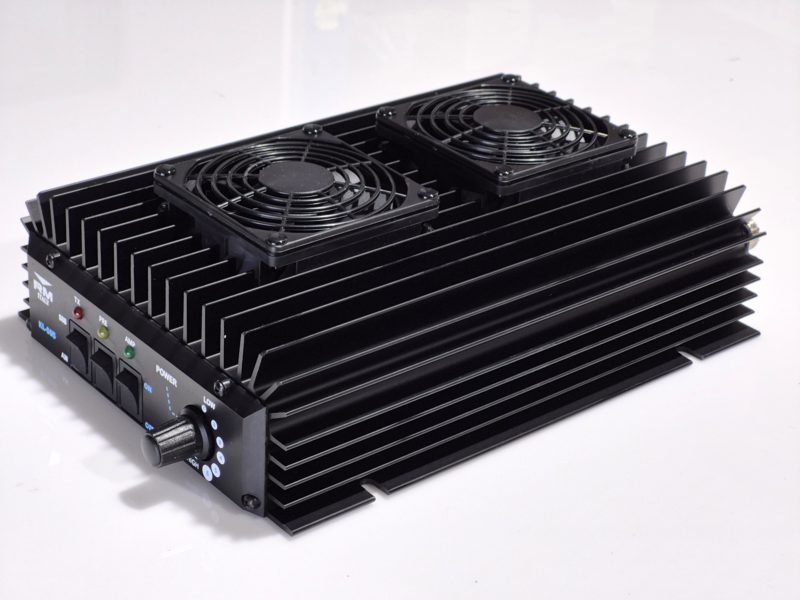

KL-505V: A quality proven high performance linear amplifier. Has 2-Fans for cooling high long operating temperature, with variable output power and switchable pre-amplifier (not variable). The output can be adjusted in 6 stages, from approximately 50W minimum to 300W maximum (AM/FM).
Specifications:
Operating Frequency: 3.5-30MHz.
Modes: AM-FM-SSB-CW.
Input RF power: 2 – 20W Max SSB/CW.
Output RF power: 60 – 300W Max SSB/CW.

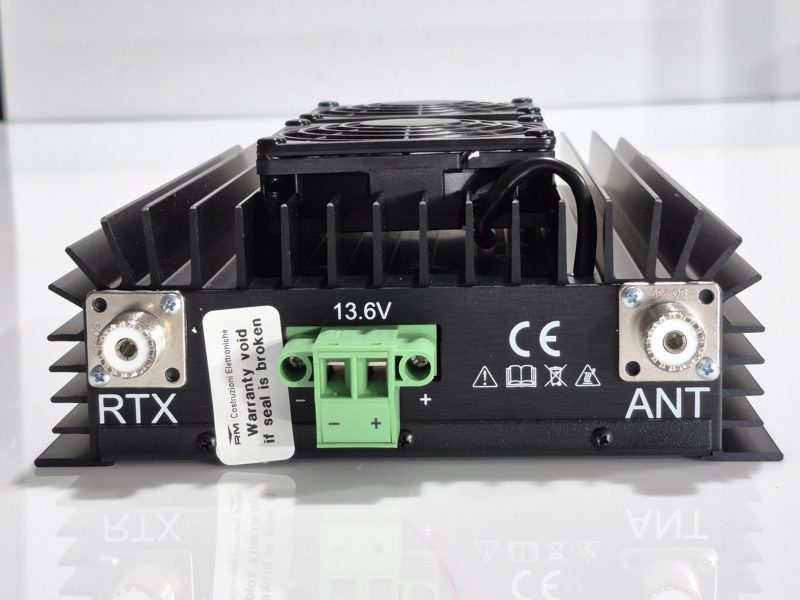

Power supply: 13.8Vdc /- 1 V 45A
Antenna Pre-amplifier: 26dB.
Transistors: 4 X RM SD 1446.

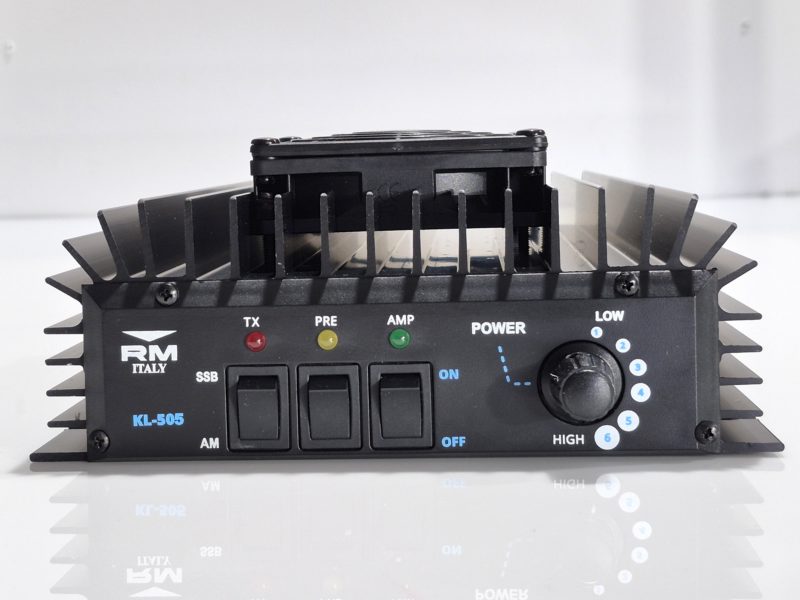

Power abbreviation – 6 levels of output power on the switch
Size: 190 x 270 x 65 mm
