Description

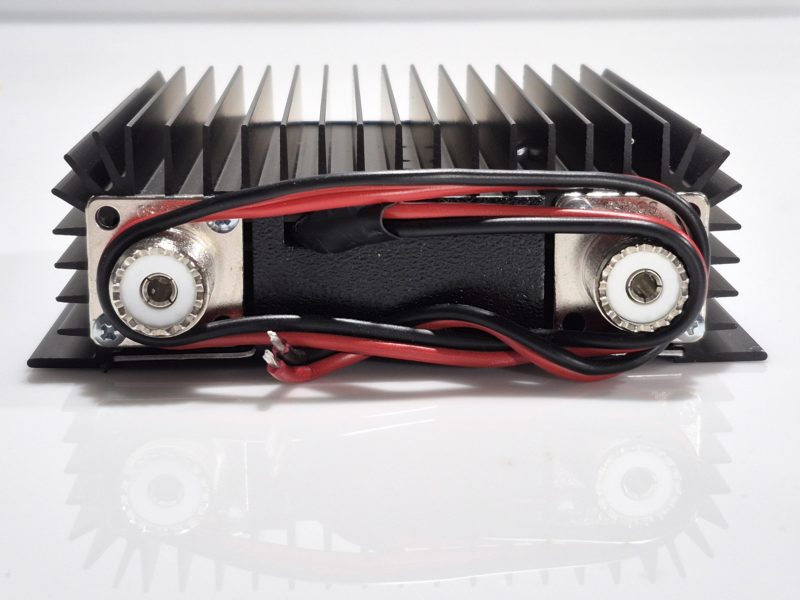

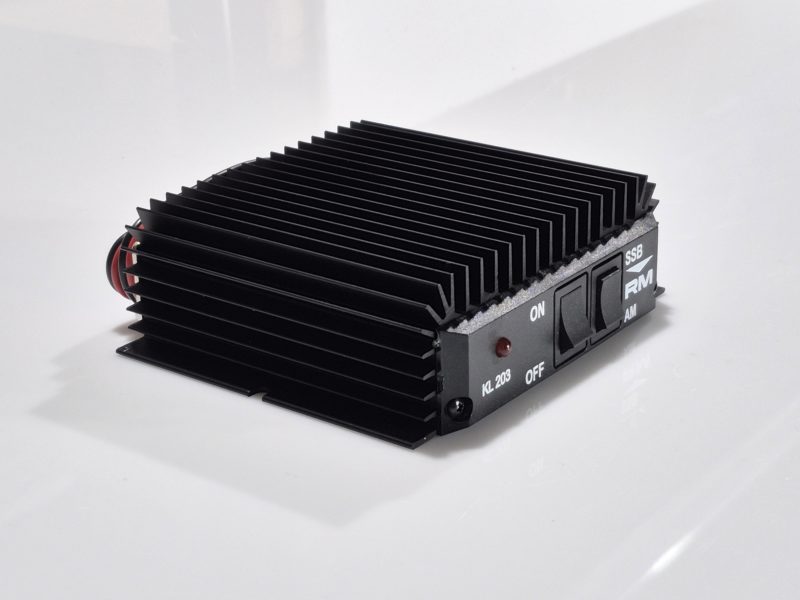

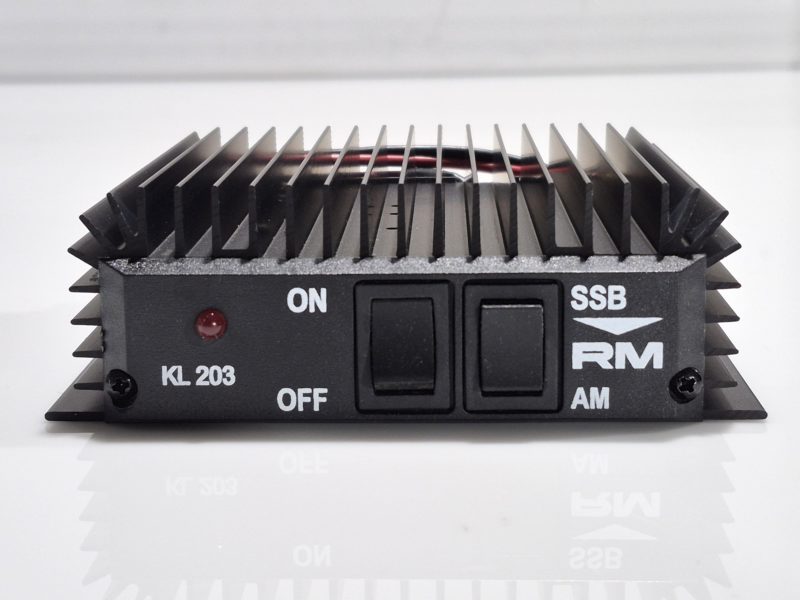

KL-203: Compact mobile amplifier, no pre-amp. RM KL203 linear amplifier is a high power all mode burner with automatic TX/RX switching and ON/OFF switch, incorporates AM/FM/CW or SSB mode switch.
This model also includes reverse polarity protection.
Specifications:
Frequency: 18-30MHz
Supply: 12-14 Vcc
Input energy/power: 10 A
Input power: 0,5-10 W
Input power: SSB 1-20 W
Output power: 100 W Max
Output power: SSB 200 W pep Max
Mode AM-FM-SSB-CW
Fuse: 12 A
Output power level: 1
Size: 109 x 125 x 35mm
Weight: 325 gr.
