Description

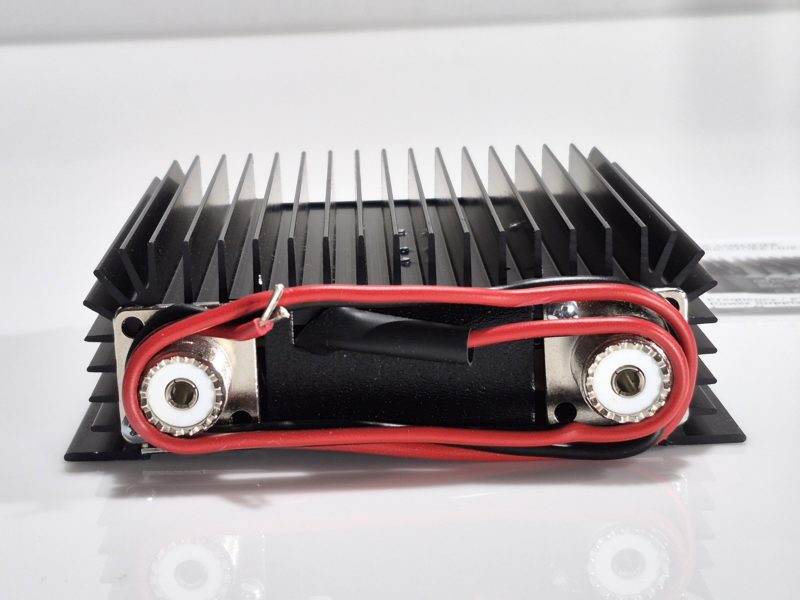

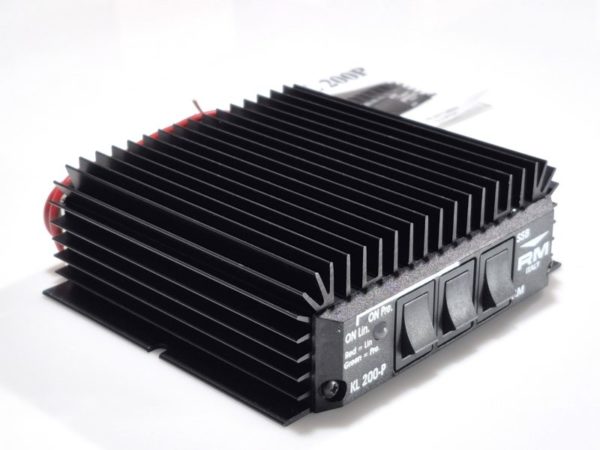

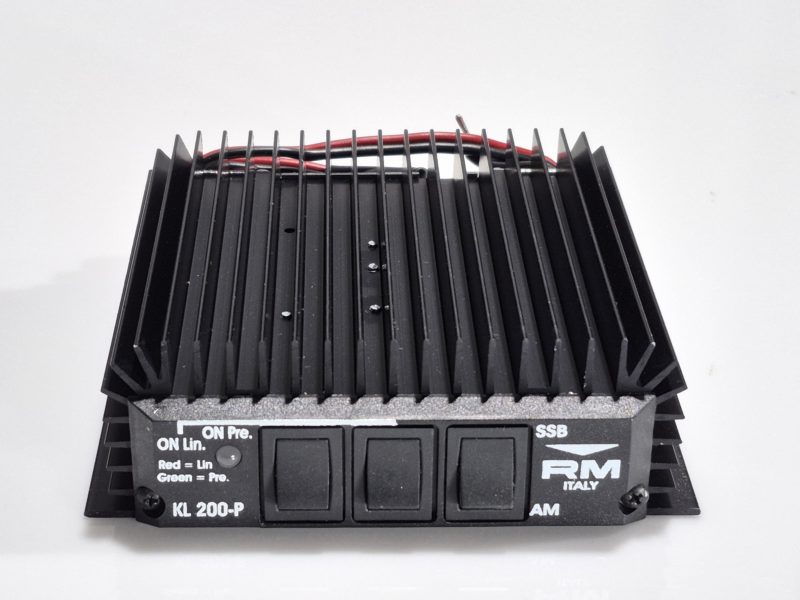

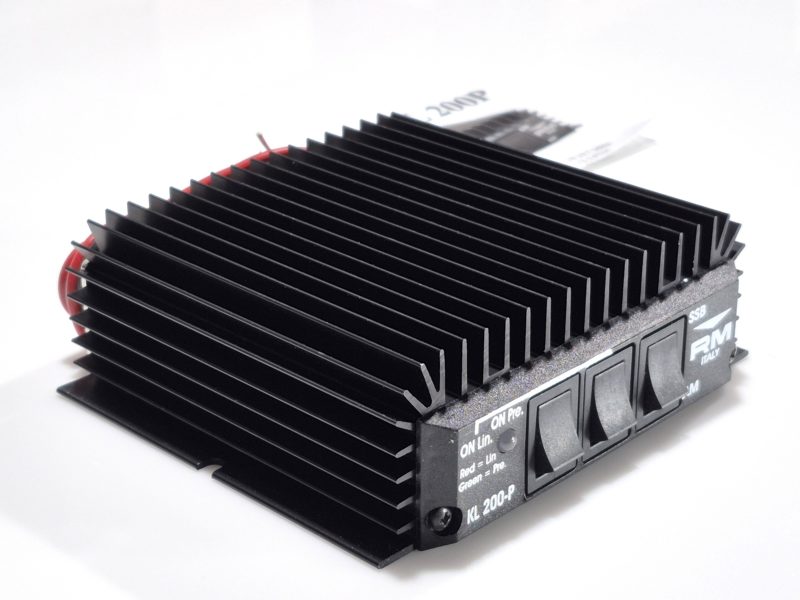

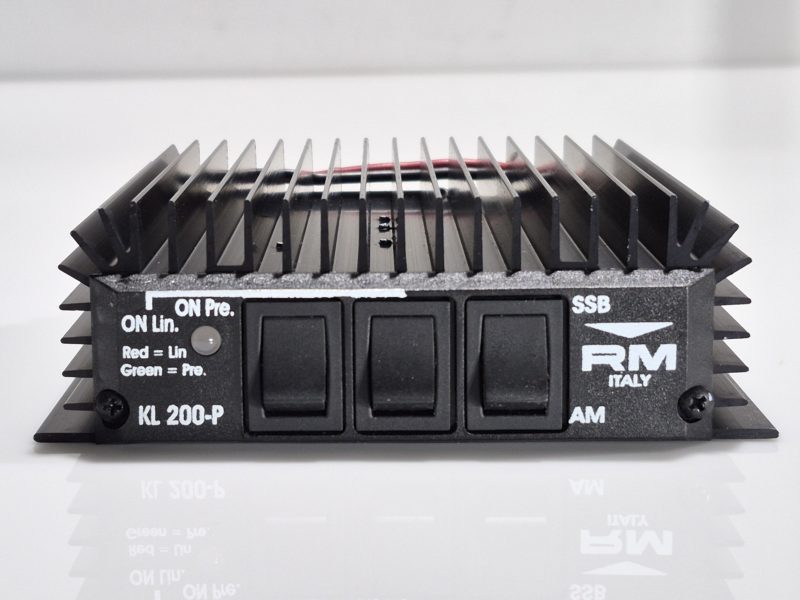

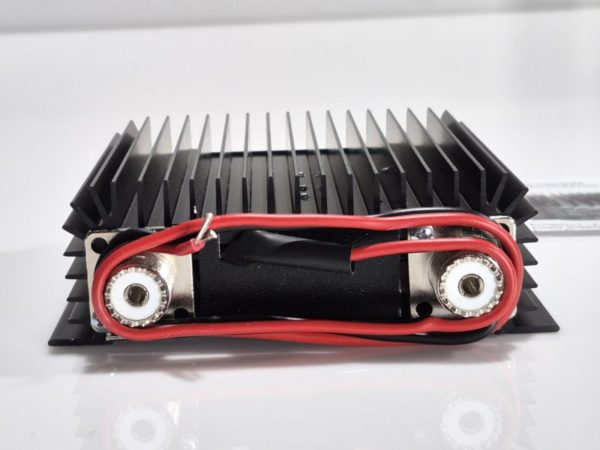

KL-200P: The KL 200 P is a 12V linear amplifier for use in the frequency range 25 – 29.7 MHz, with a drive power of 1 to 5W in AM mode, and 2.0 – 10W in SSB mode. KL 200 P also features a 25dB preamplifier with electronic switching, which can be activated via a switch on the front.
Specifications:
Frequency: 25-30MHz
Power Supply: 12-14VDC
Input energy/power: 8-11 Amp
Input power: 1-5 W
Input power SSB: 2-10 W
Output power: 100 W Max AM/FM
Output power: 200 W Max SSB/CW
Mode – AM-FM-SSB-CW
26dB preamp reception
Fuse – 12 A
Output power level – 1
Size – 120 x 125 x 40 mm
Electronic switch
Inversion polarity protection
