Description

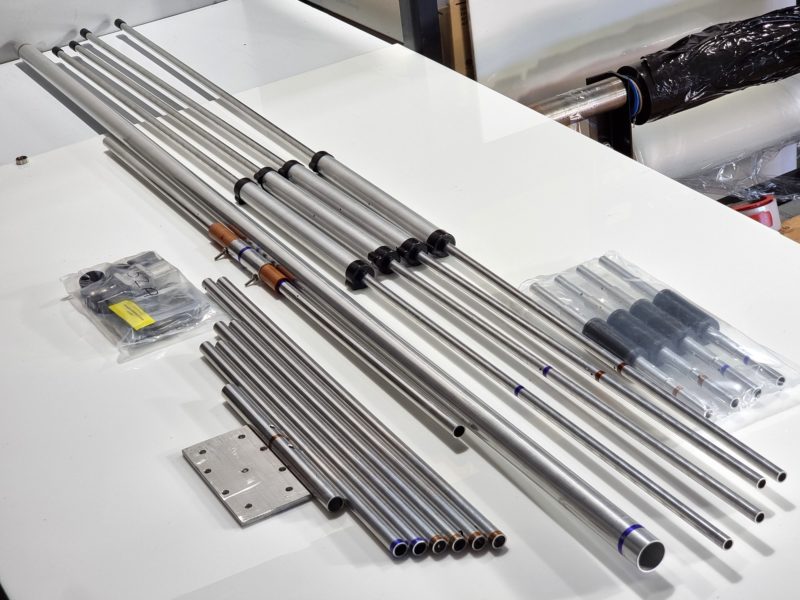

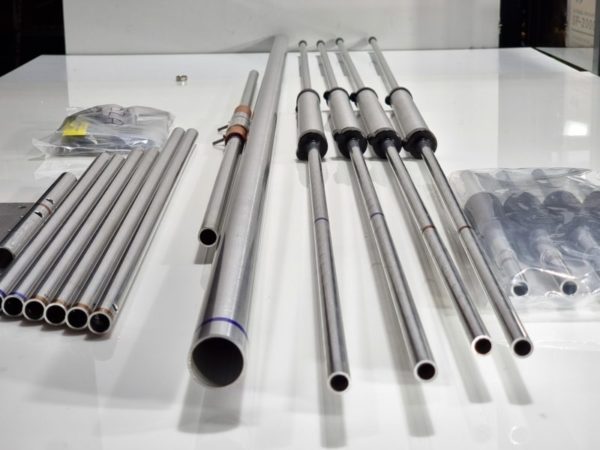

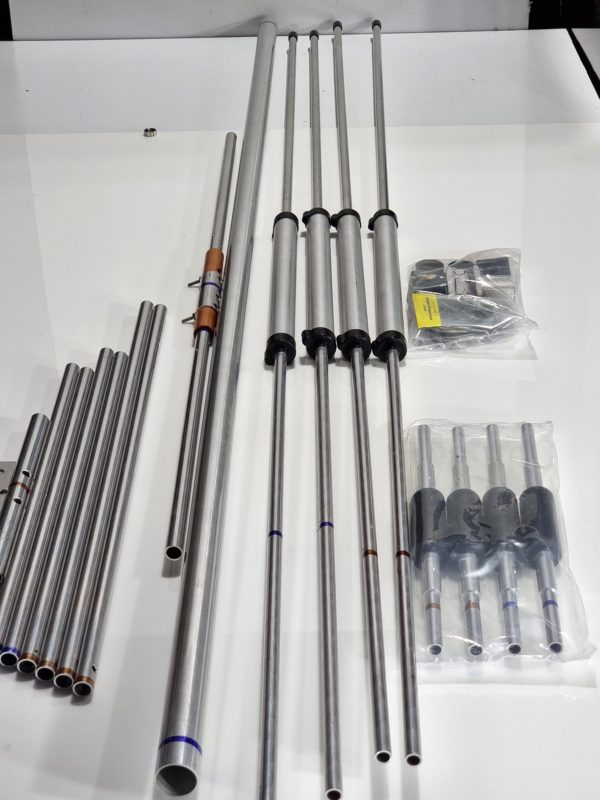

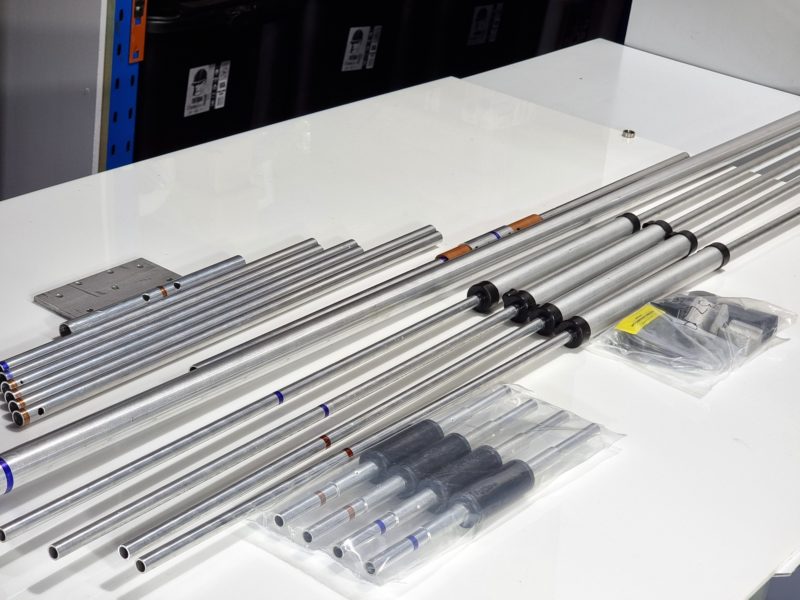

MINI-32-A: The MINI antennas offer an ultra light weight design, a small foot print, with good all-around performance, & Mosley ruggedness. Our hardware is made of the best grade of stainless steel and our tubing is aircraft grade drawn aluminum. Despite the smaller size of the antennas these can compete with bigger versions! As with all Mosley antennas, pieces are all pre-drilled and color coded, which makes assembly quick and easy.
The Mosley Mini is the answer to the antenna space problem while giving you great performance and durability!
Specifications:
Frequency: 28, 21, 14MHz
Forward Gain, dBd / 10 meters, 2 – element; 5.1
Forward Gain, dBd / 15 meters, 2 – element; 4.5
Forward Gain, dBd / 20 meters, 2 – element; 3.3
Front to Back Ratio, dB 10 meters; 17 (avg)
Front-to-Back Ratio, dB 15 meters; 17 (avg)
Front-to-Back Ratio, dB 20 meters; 17 (avg)
Power Rating, watts CW: 500
Power Rating, watts SSB; 1000
Power Rating, watts AM/FM; 250
Power Rating, watts RTTY/AMTOR; 250
VSWR at frequency; 1.0/1 to 2.0/1
Boom Length: 6 ft / 1.83 m
Maximum Element Length; 19.6875 ft / 6 m
Turning Radius, ft.; 10.29 ft / 3.14 m
Mast Size, in. hardware equipped; 1.5 in / 3.81 cm
Maximum Element Length, ft.: 19.6875 ft / 6 m
Assembled weight, lbs.: 9.5 lbs / 4.31 kg
Wind Surface Area, sq. ft.: 2.5 sq ft / 0.232 sq m
Wind Load, EIA 80 MPH; 38 lbs / 17.24 kg
Recommended Coax: RG-8 / RG-213
Hand-crafted under rigid engineering standards, Mosley antennas are constructed of highly durable drawn, aluminum tubing to withstand wind loads of (EIA Standard) (80) miles per hour; and then some!
