Description
NOTE: SOLD OUT ON BACK ORDER

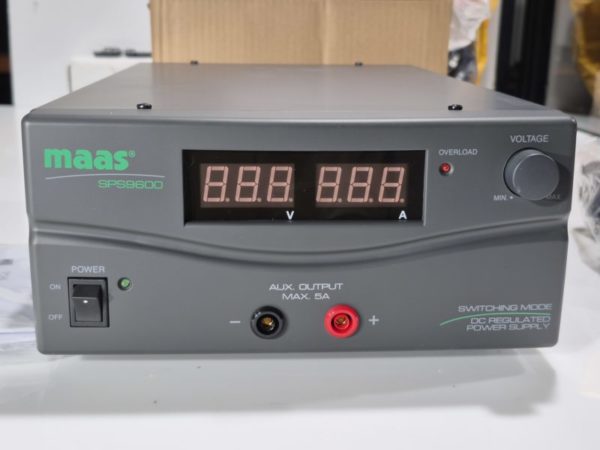

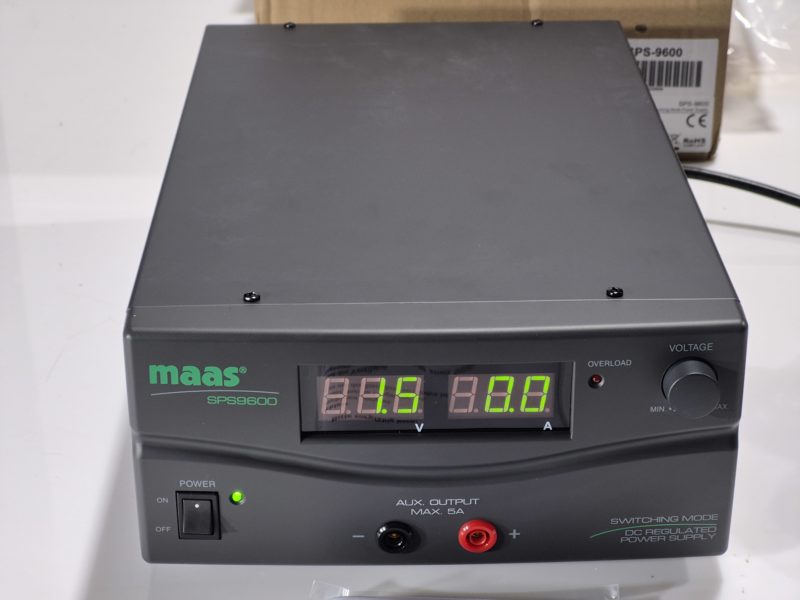

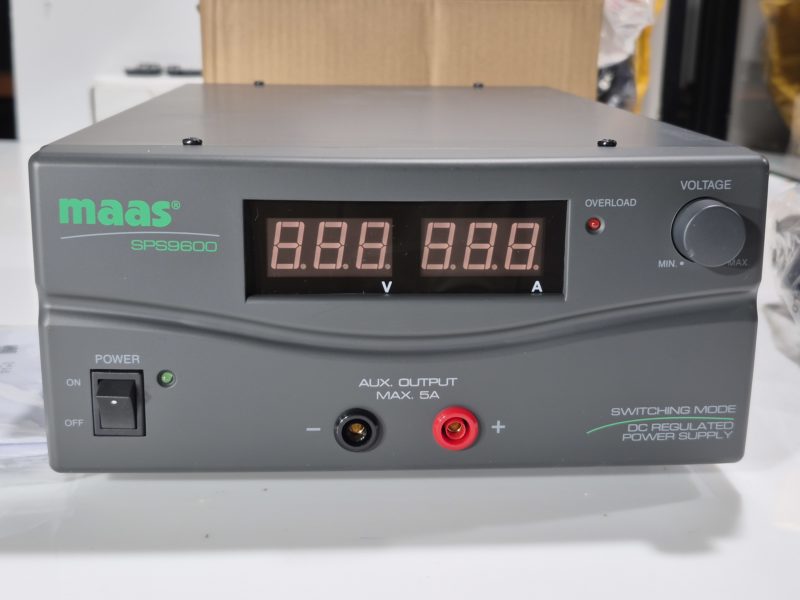

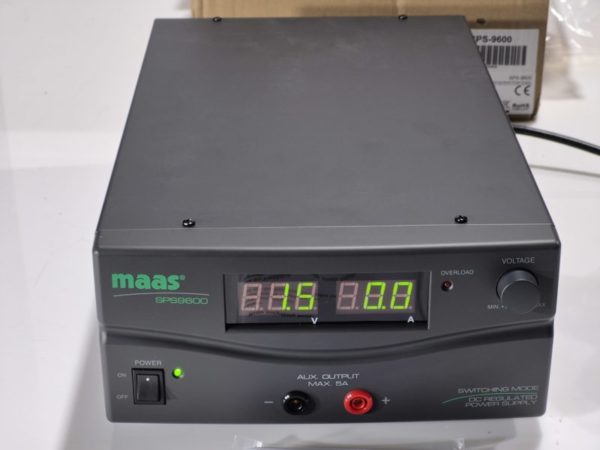

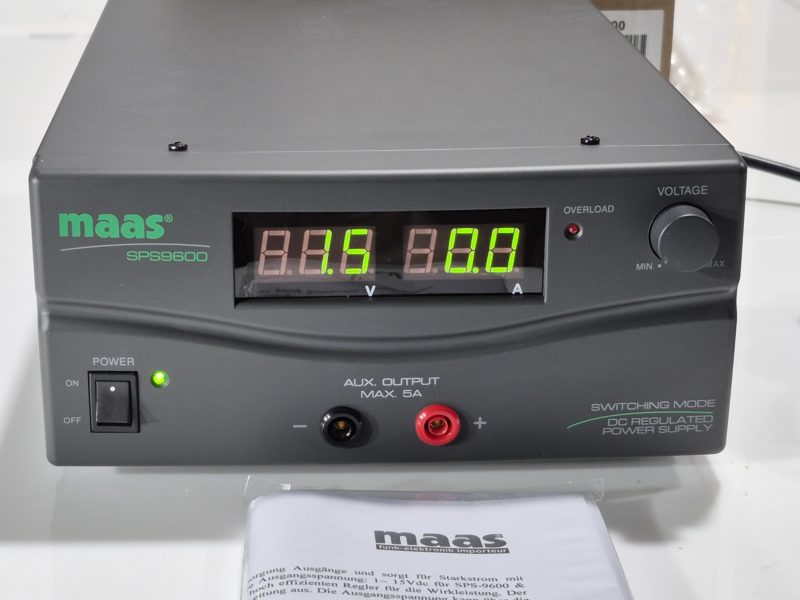

SPS-9600: This high current switching mode DC regulated output power supply is designed with a high efficient active power factor correction. The constant current limiting protection allows the output current to remain stable but the output voltage decreases to a level that permits safe operation of the power supply. The remote sensing terminals are used to compensate for output line losses so that a precise regulation can be achieved for critical voltage application away from the power supply. The output voltage level and ON-OFF can be externally controlled via the remote terminal. It is ideal for applications that need good quality high DC current network with precise point of voltage regulation. SPS-9600 / SPS-9602 has a small footprint for its 900W continuous maximum power. It is suitable for a wide range of applications such as street blaster super high power car audio demonstration console, radio equipment and etc.
Features:
Total max. continuous output current 60-Amp

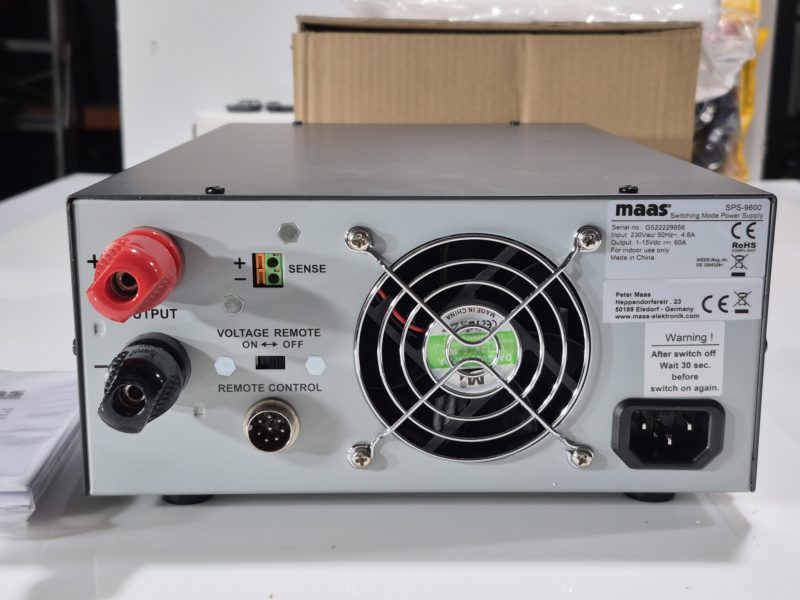

Main Output / Remote Sensing / Remote Control / terminals at the back
Front terminals 5-Amp limiting.
Precise Load Point Voltage
Remote Sensing for remote point of regulation.
Analogue Remote control terminals for output voltage adjustment and *on/off*
Floating Ground Design
Overload / Over-temperature / Short Circuit Protections
Constant Current mode with LED indicator prevents overloading
Variable speed thermally controlled fan
High RFI stability
Active power factor correction ( P.F. > 0.97 )
Overload protection with constant current
Low ripple & noise.
Specifications:
Type: Switching Mode
Input Voltage: 200 – 240VAC 50Hz~ (or on request)
Rated output power: 900W
Number of output: 1
Output Voltage range: 1-15VDC
Output Current range: 60A
Voltage load regulation: 0.1% 5mV
Voltage line regulation: 0.05% 3mV
Output ripple and noise: ?40mVp-p
Voltage meter digit and accuracy: 3 Digit LED Display ±(1% 1 count)
Current meter digit and accuracy: 3 Digit LED Display ±(1% 1 count)
Extra output voltage: N/A
Auto-range (con): No
Constant current mode: Yes
Remote programing: No
Connection type: N/A
Preset program: No
Internal program: No
Commend set: N/A
Optimal efficiency: 85.7%
Cooling method: Thermostatic Control Fan
Protections: Overload (constant current limiting), Over Temperature, Short Circuit, OVP Protection
Floating ground: Yes
Approvals: CE EMC: EN 55022 LVD: EN 60950
Dimensions (W x H x D): 220 x 110 x 360mm
Weight: 5.5kg.
