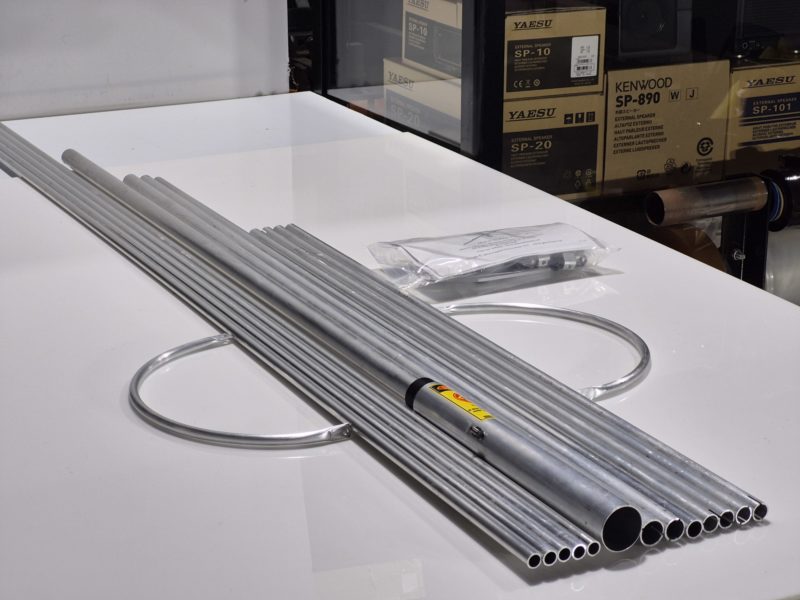

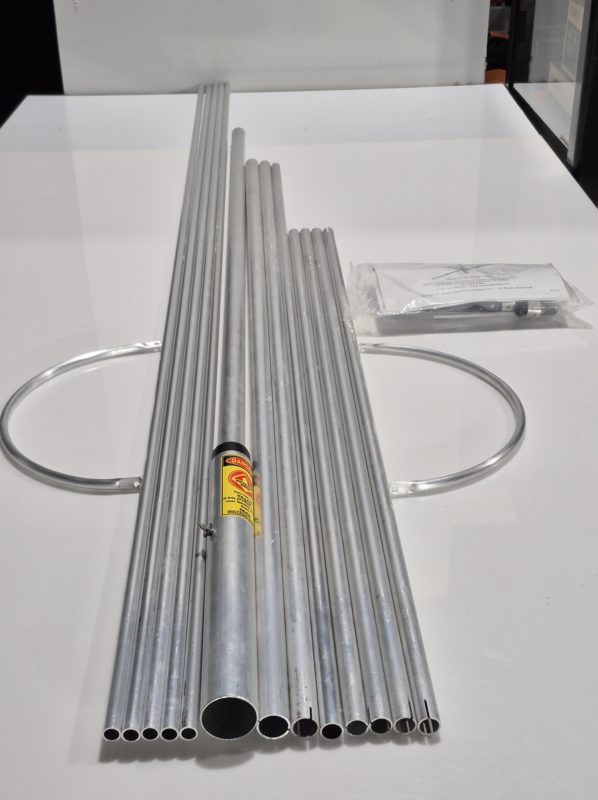

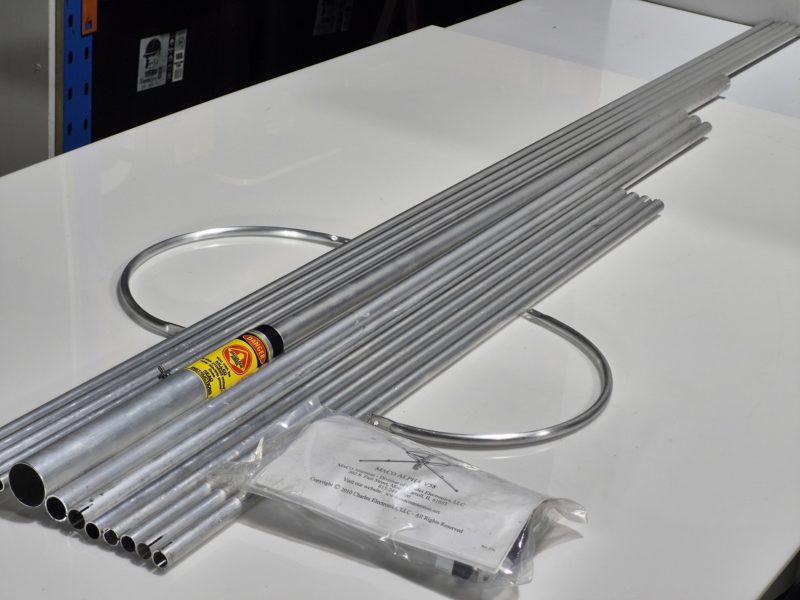

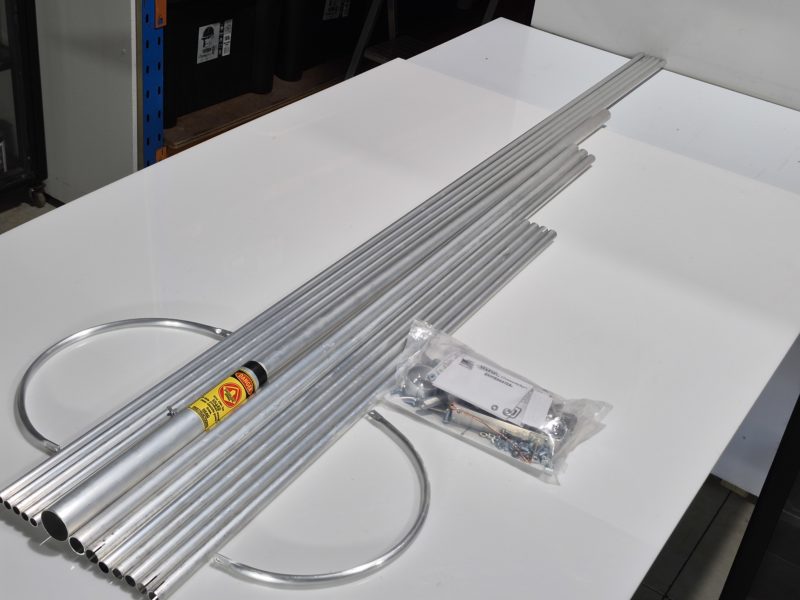

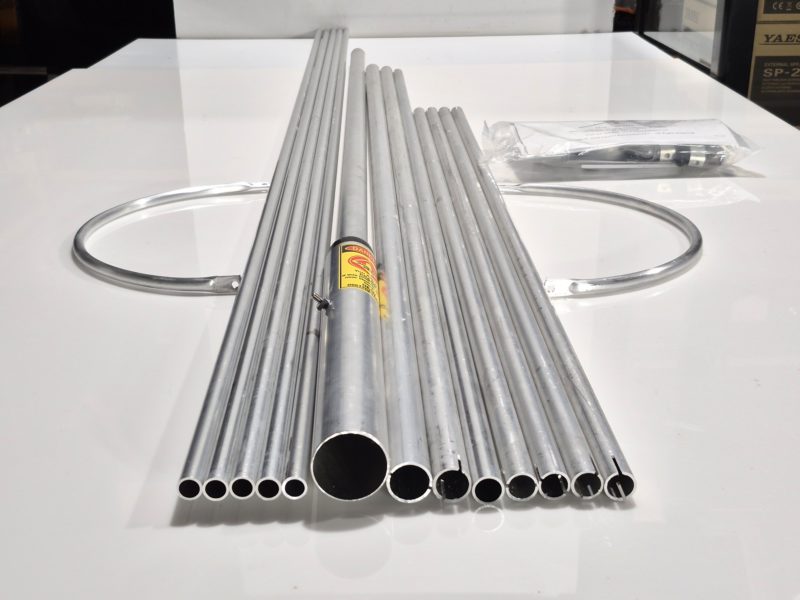

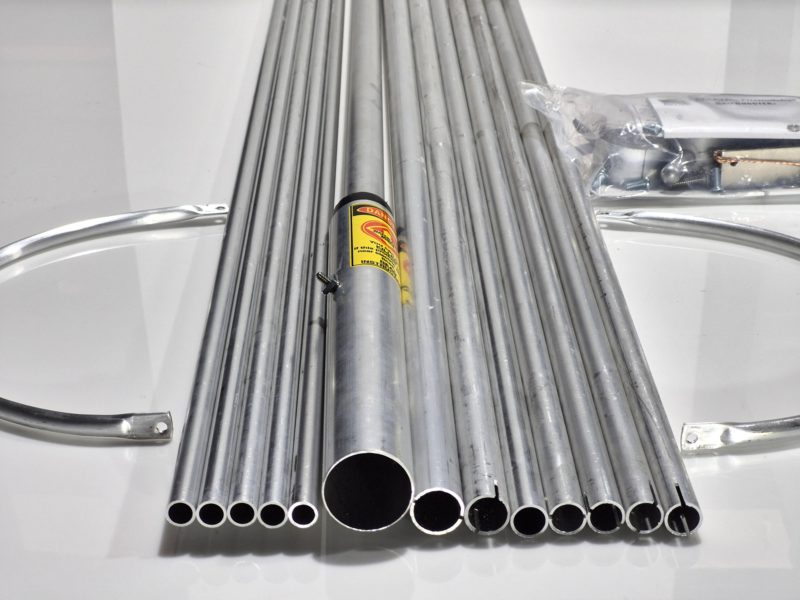

V58A: The MaCo V58A is a high-performance 5/8 wave vertical antenna designed for 26–33 MHz operation. Engineered for CB and 10-meter amateur use, it features an integrated ground plane system for enhanced signal stability and range. With a power handling capacity of up to 1200 watts, this antenna delivers strong transmission and reception. Constructed from heavy-duty materials, it ensures long term durability in all weather conditions. Easy to install and tune, the V58A is ideal for base station setups seeking reliable, long-distance excellent DX performance.
Features:
Why Choose the Alpha V 5/8
Greater range and clarity than shorter verticals
Seamless Aircraft grade aluminum
Includes a Ground radiator
Rugged build for long‑term outdoor use
Easy to assemble and tune
Specifications
Frequency Range: 26 – 33 MHz (field tunable)
Wavelength: 5/8 wave
Power Handling: 1200 Watts
Gain: 5 dB
VSWR: 1.5:1 or less (adjustable)Antenna Height: 20 – 21 feet
Wind Survival: 90 mph / 2.56 sq ft wind load.
Height: 16-1/2′ to 20′ (609cm)
Weight: 11 lbs. (4.98kg)
Mast Compatibility: Bottom section accepts \(1 \frac{1}{4}\) inch masts
