Description
NOTE: SOLD OUT ON BACK ORDER

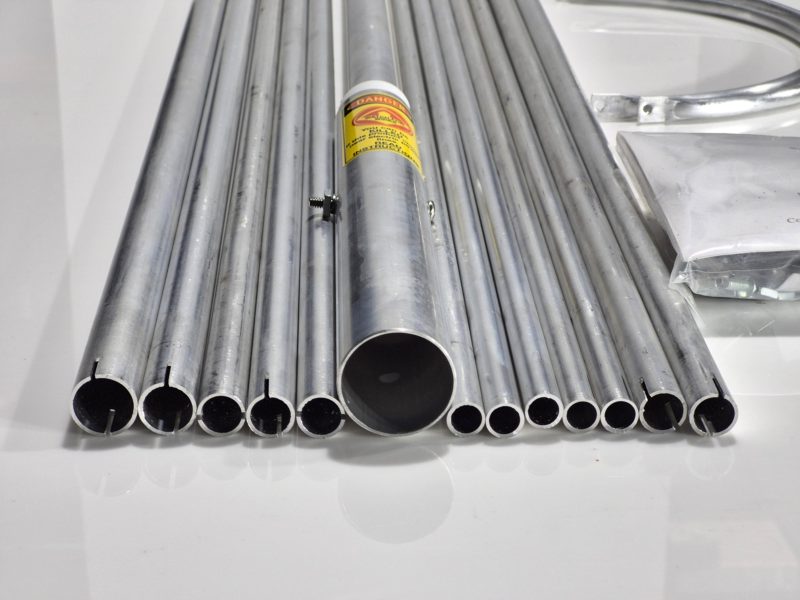

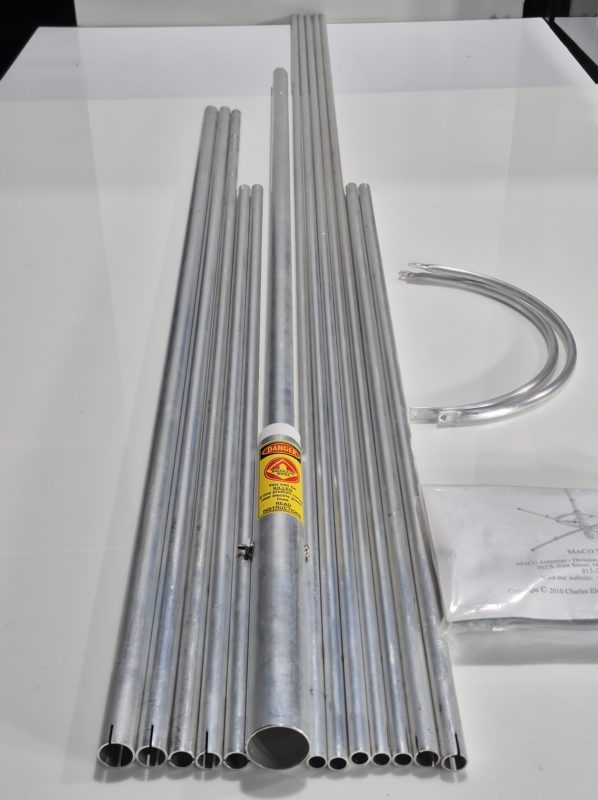

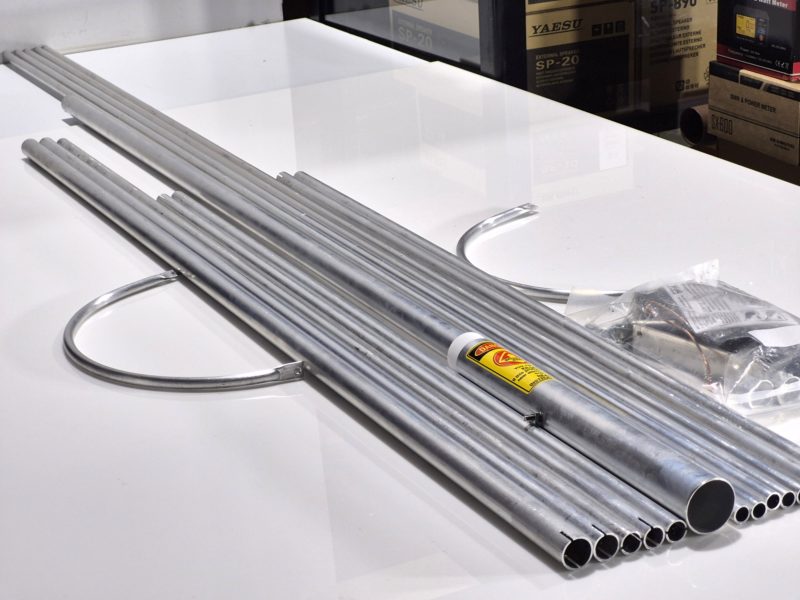

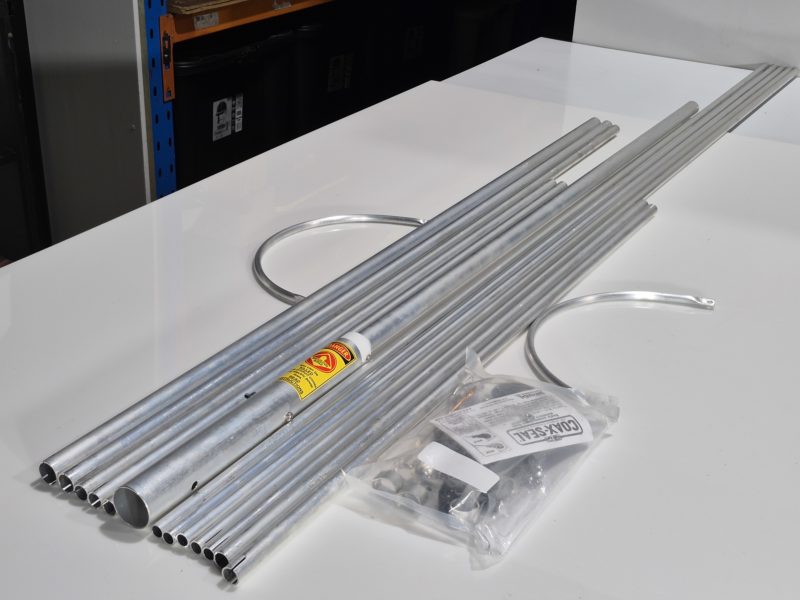

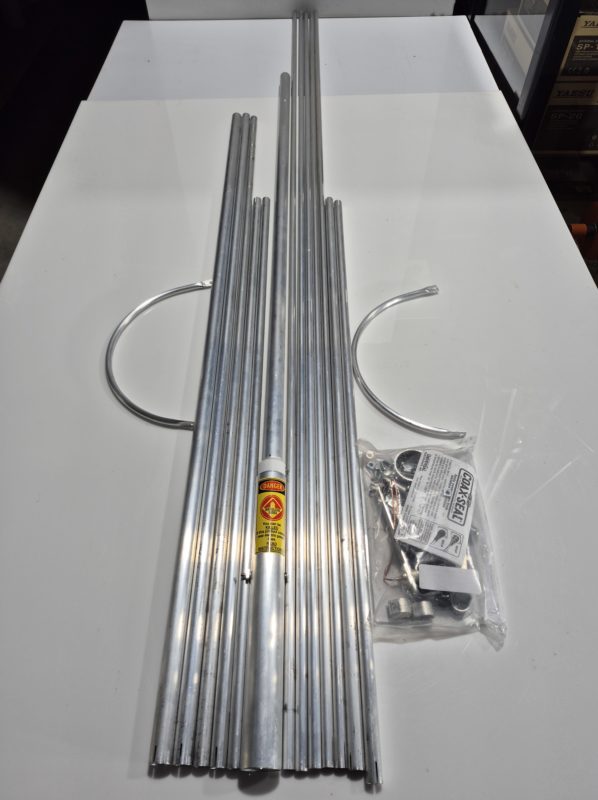

V5000A: The Maco V5000A is a heavy-duty 5/8 wave vertical antenna designed for 26–33 MHz operation. Engineered for high performance and durability, it features a built-in ground plane system and handles up to 5000 watts of power, making it ideal for CB and 10-meter amateur radio use. Constructed from high quality aluminum, it offers excellent signal strength, range, and weather resistance. Perfect for base station installations requiring maximum power and reliability. If you are looking for a powerful and durable CB base antenna with high power capacity, the MACO V5000A is the perfect choice!
Features / Specifications:
Powerful 5/8 wave CB base antenna for superior performance
Frequency range 26-33 MHz, easy to tune in 1 to 9 positions
Maximum power of 5000 watts – ideal for powerful amplifiers
Includes 4.88 meter (16 ft) diameter radial set for improved stability and signal transfer
Rugged 20ft (6m) tall design for extended reach
Frequency Range: 26–33 MHz
Power Handling: 5,000 watts
Gain: 5dB
Height: 20 feet total (609cm)
Weight: 15 lbs. (6.80kg)
Ground Plane: Includes a removable 16-foot diameter radial kit (4 radials)Wind Load: 2.56 sq ft (handles wind speeds up to 90 mph)
