Description

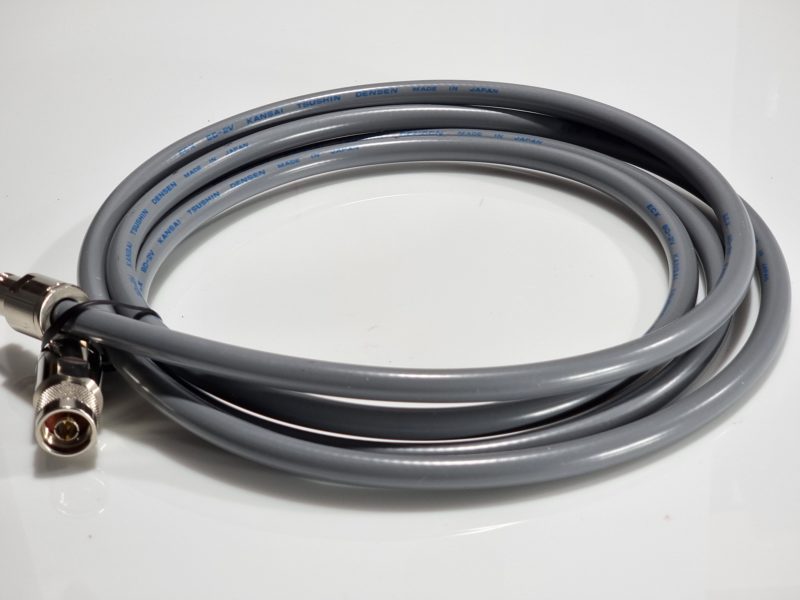

8D-2V: This highly flexible polyethylene insulated coaxial cable is widely used in Japan for connecting high frequency devices, internal wiring, power supply lines, etc. Its characteristic impedance is 50 Ω, making it suitable for wireless and communication-related applications.
Approximate cable length: 3m

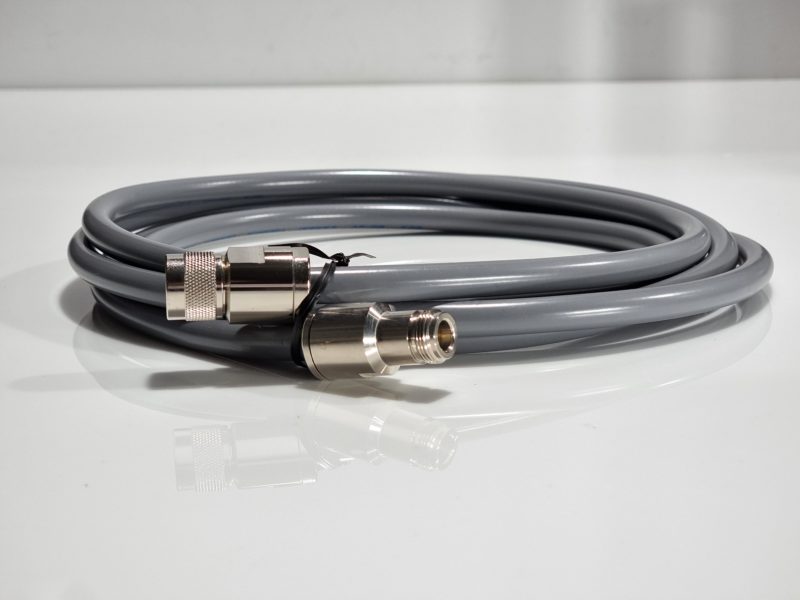

Fitted with N-Male / N-Female connectors
Features:
Made in Japan: Kansai Communication Wire
General type, full-featured type
High shielding and low loss. Characteristic impedance is constant in the high frequency range.
Suitable for use in amateur radio using low frequency bands such as HF.
Since the conductor resistance is small and power loss is minimal, it is suitable for long cable lengths.
Multi-core (twisted) coaxial cables that allow for flexible wiring are also available
Lightweight, flexible and easy to process.
Highly shielded, low loss type
Transmission of audio signals
Wireless transmission and reception, signal circuits, connections between devices and inside devices, etc.
Applications:
HF amateur radio
Transmission of audio signals
Radio transmission and reception
Connection between devices
Connection when the cable length is long
Specifications:
Internal Conductor: Material soft copper wire
Number of wires / Outer diameter: 0.04 inch (1 / 2.3 mm)
Insulator: Material Polyethylene
Outer Diameter: 0.3 inches (7.8 mm)
External Conductor: Material soft copper wire
Outer Diameter: 0.3 inches (8.7 mm)
Sheath: Material de-leaded vinyl chloride
Standard Color: Gray
Outer Diameter: 0.4 inches (11.1 mm)
Conductor Resistance: 4.23 ([20°C]Ω/km (below)
Withstanding Voltage: 1000 (AC.V/1 minute)
Capacitance: 100 (nF/km (approx.)
Insulation Resistance: 1000 (MΩ-km (above)
Characteristic Impedance: 50±2(Ω)
Standard attenuation rate (dB/km): 400MHz: 121 / 900MHz: 195
Approximate mass: 181kg/km
Both ends processed: Raw
Wavelength shortening rate: Approximately 67%
