Description

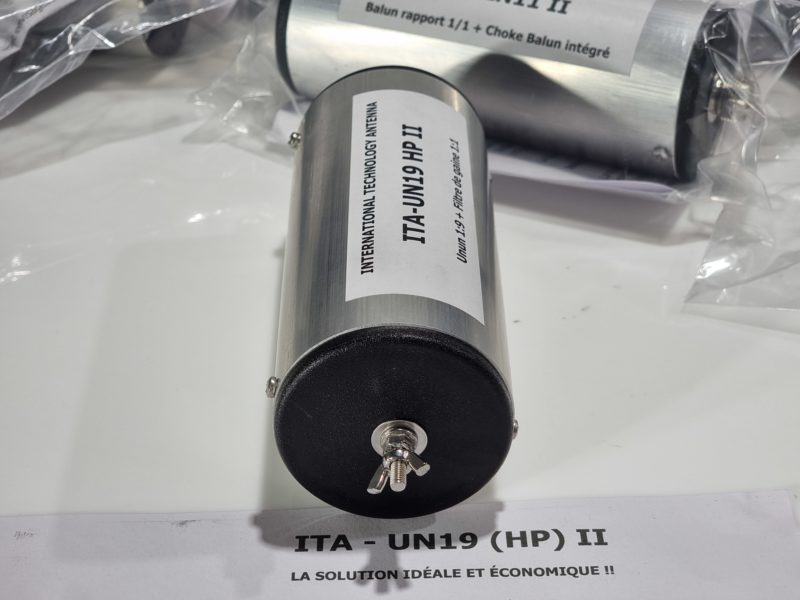

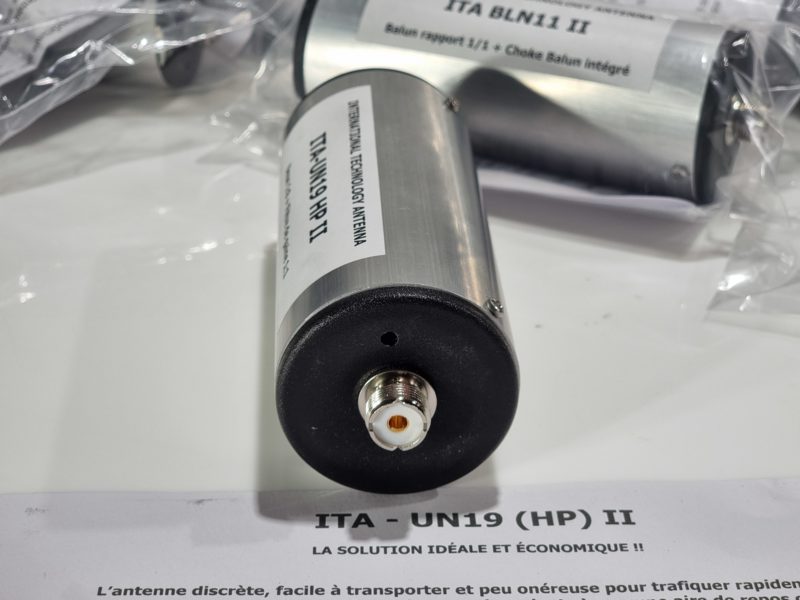

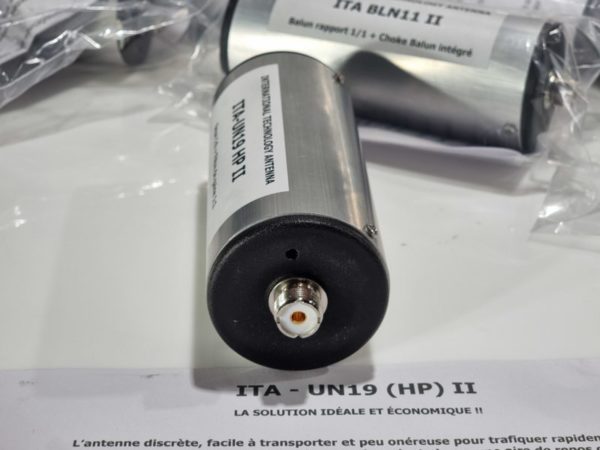

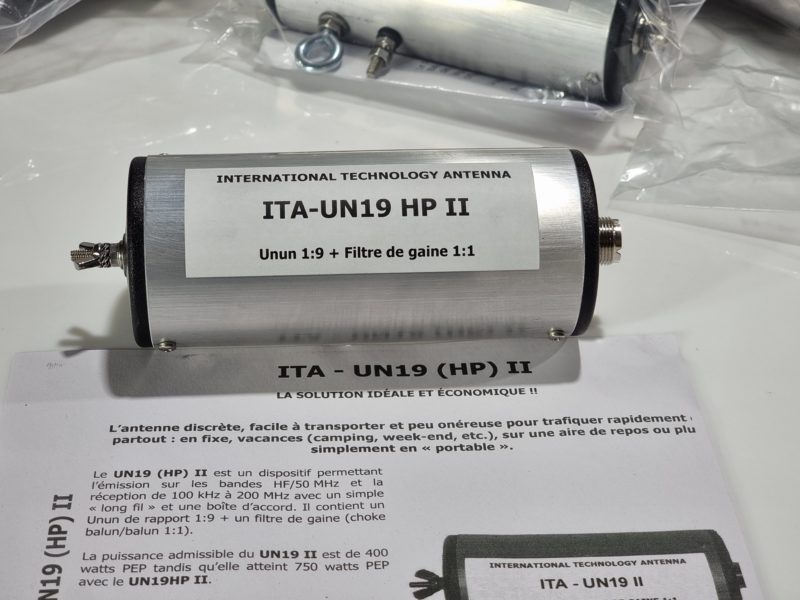

UN19 HP-II: Impedance transformer (1:9 ratio) to transform a long wire into a multiband antenna. Use with automatic or manual coupler recommended. It is the ideal solution to transmit during the week-end or the holidays. High Power version (750 W PEP) + Choke balun.
Specifications:
1:9 UNUN: (50 Ω:450 Ω) High Power + Choke balun
Frequency Bands: HF- 50 MHz
Power handling: Max. power 750 W PEP
Impedance: 50 Ohms
Connector: SO-239 (PL)
Diameter: 60 mm
Weight: 395 g
