Description

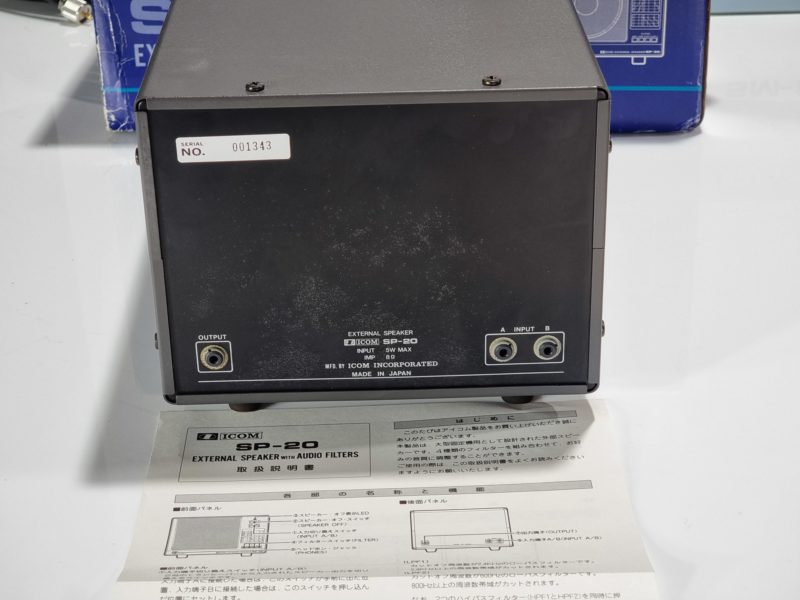

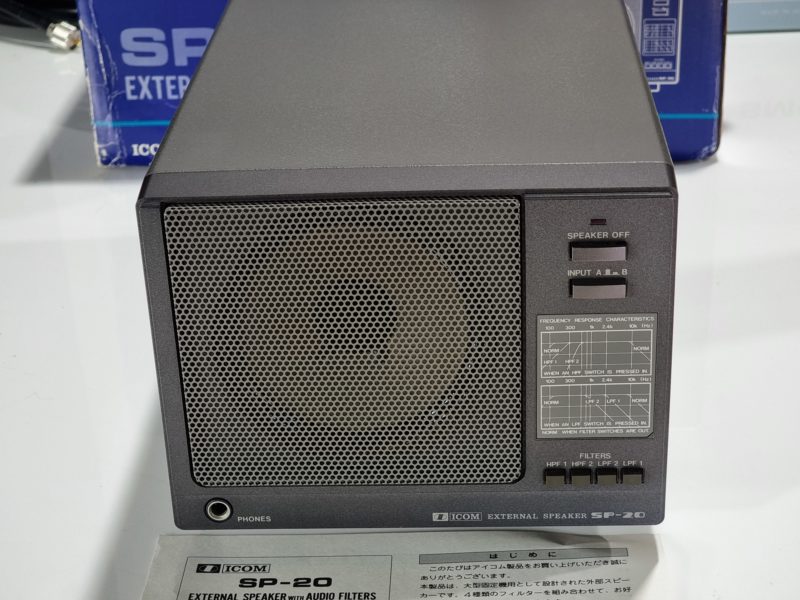

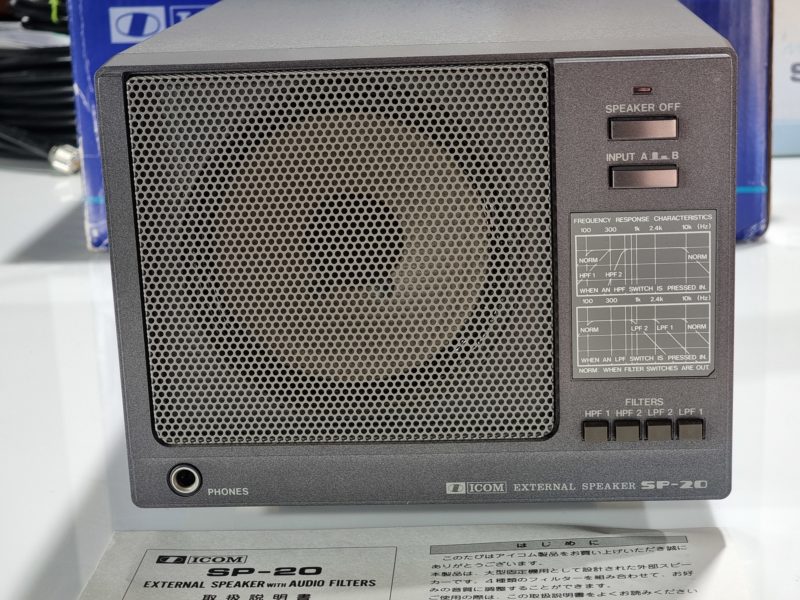

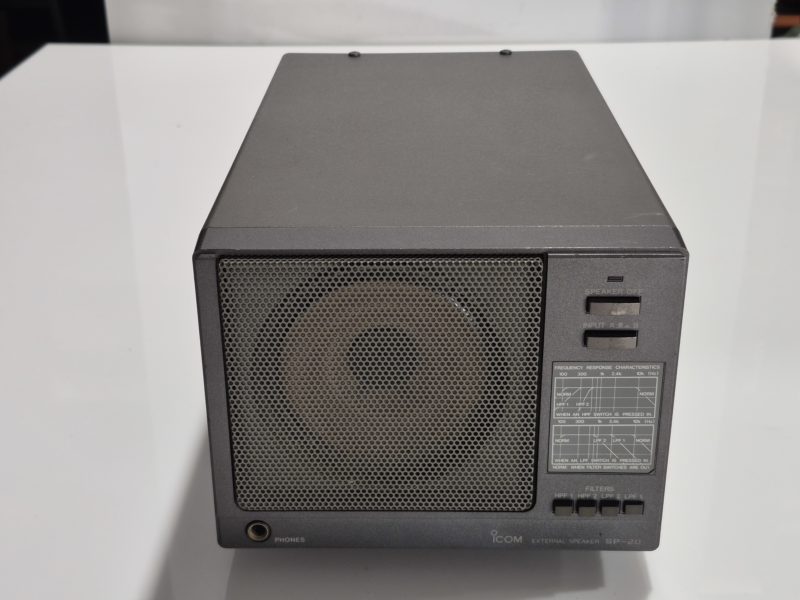

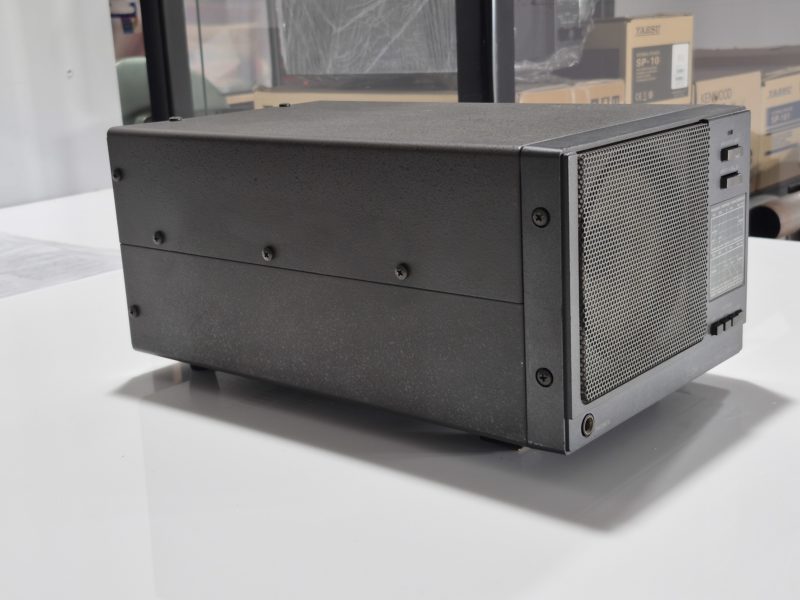

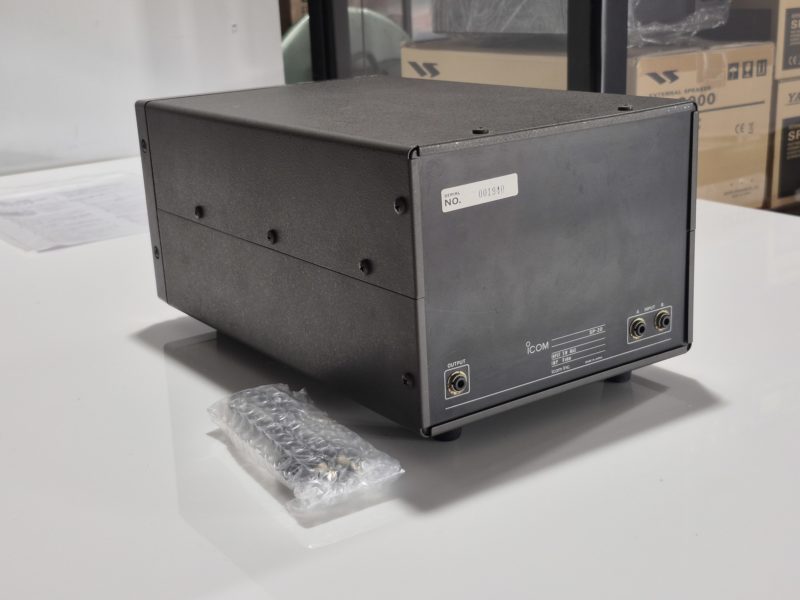

SP-20: The SP-20 speaker is designed for use with a wide variety of communication equipment. The SP-20 is equipped with four separate audio network filters for maximum control of the audio characteristics of received signals. The SP-20 rear panel features two audio input jacks (3.5 mm mini jack). Input A or B may be selected from a switch on the front of the speaker. There is also a Speaker On/Off switch and a 1/4 inch headphone jack on the front panel. Includes two 3.5 mm mono mini to 3.5 mm mono mini audio cables
Specifications:
Type: External speaker with filter
Max input power: 5 W
Impedance: 8 Ohm
Frequency response: 100-9000 Hz
Filter cut-off: HPF1: 300 Hz @ -3 dB point
HPF2: 600 Hz @ -3 dB point
LPF1: 2.4 KHz @ -3 dB point
LPF2: 800 Hz @ -3 dB point
Filter response: -6 dB/octave
Dimensions (W*H*D): 200 x 150 x 344 mm (7.88 x 5.88 x 13.38″)
Weight: 3 Kg (6.6 lb)
For use with: Icom IC-R75, IC-78, IC-718, IC-746, IC-756, IC-910, IC-7200, IC-7400, IC-7600, IC-7700, IC-7800, IC-R9500 radios
