Description

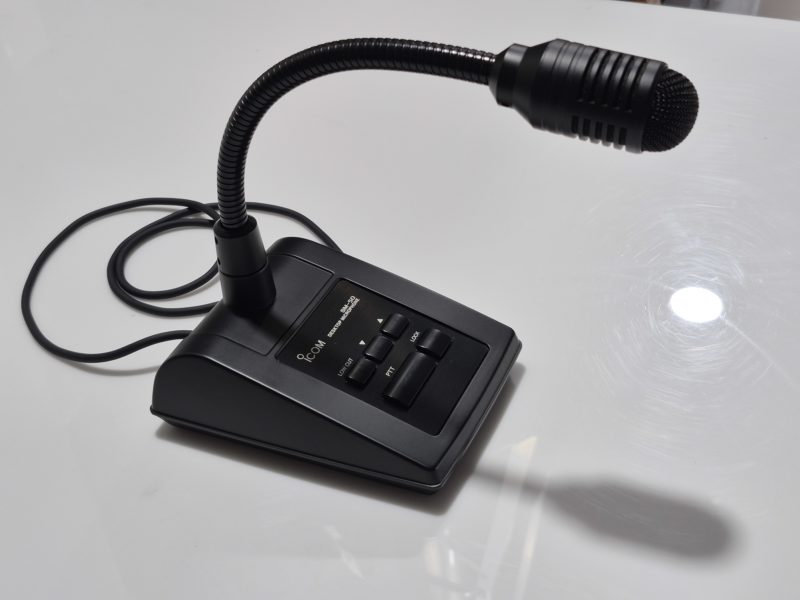

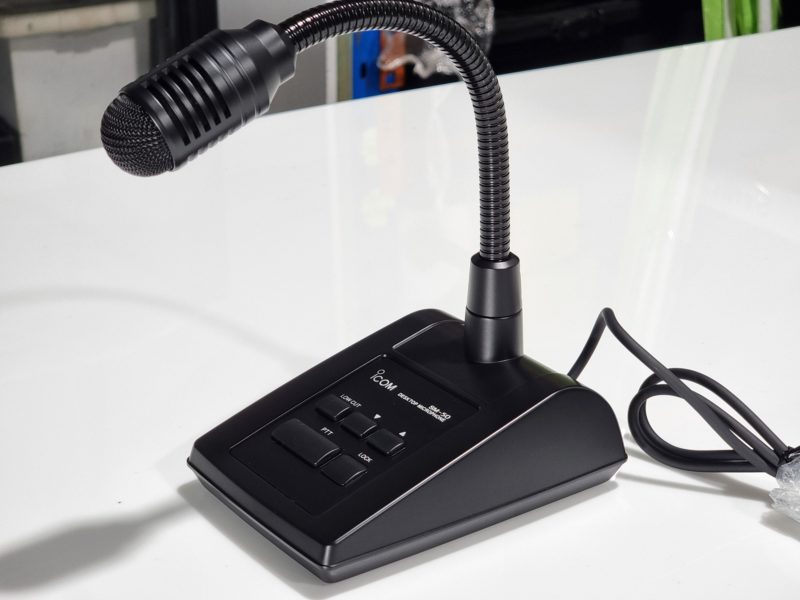

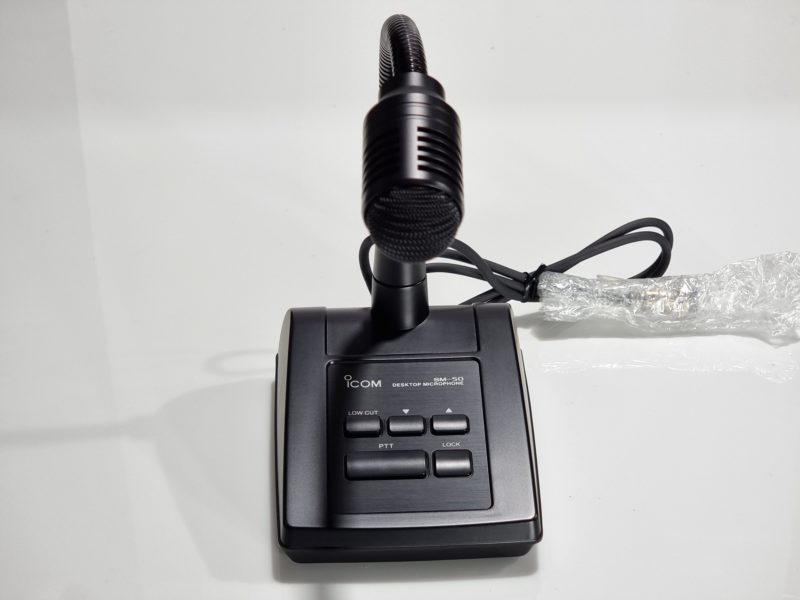

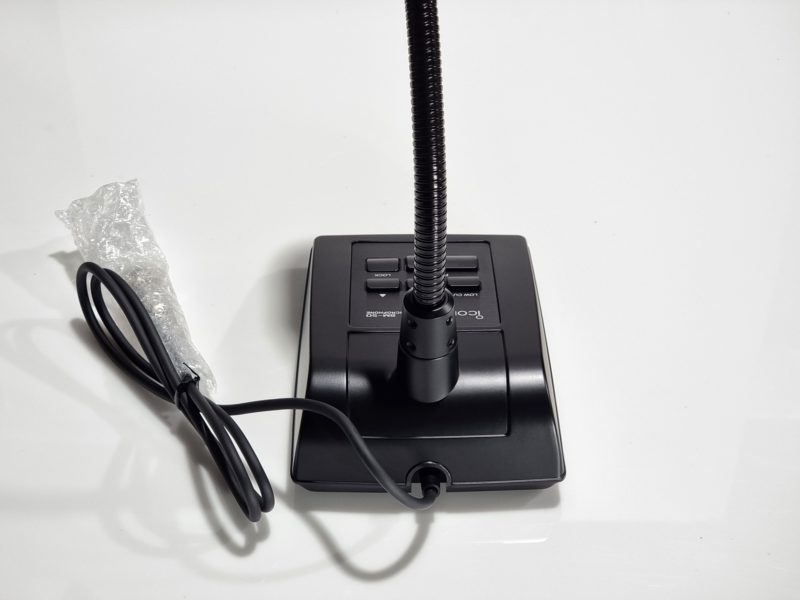

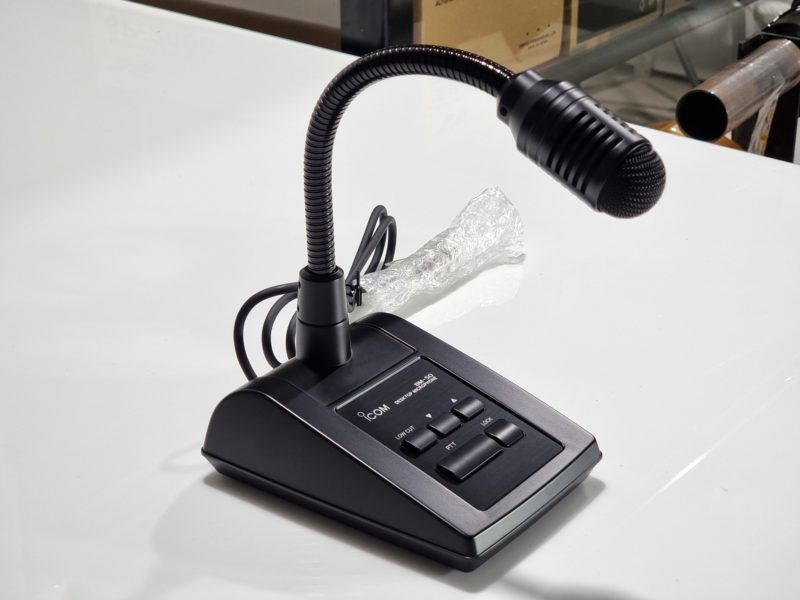

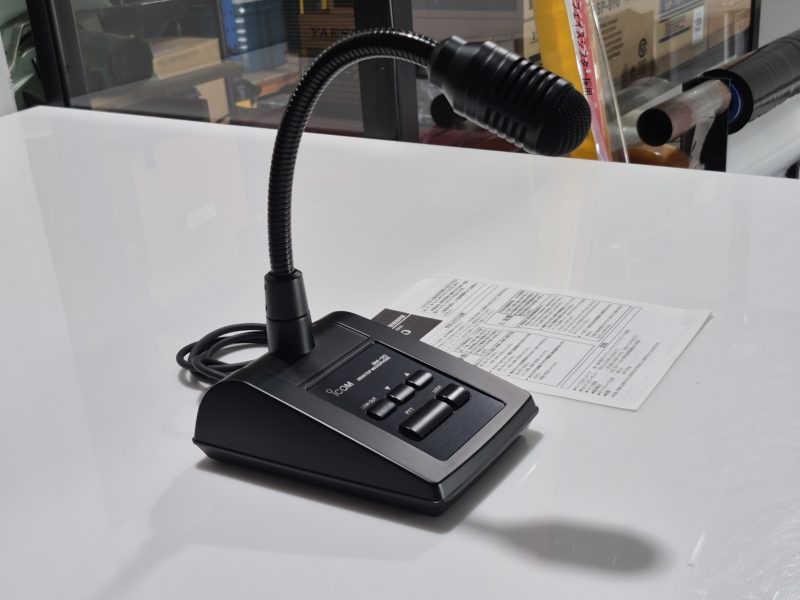

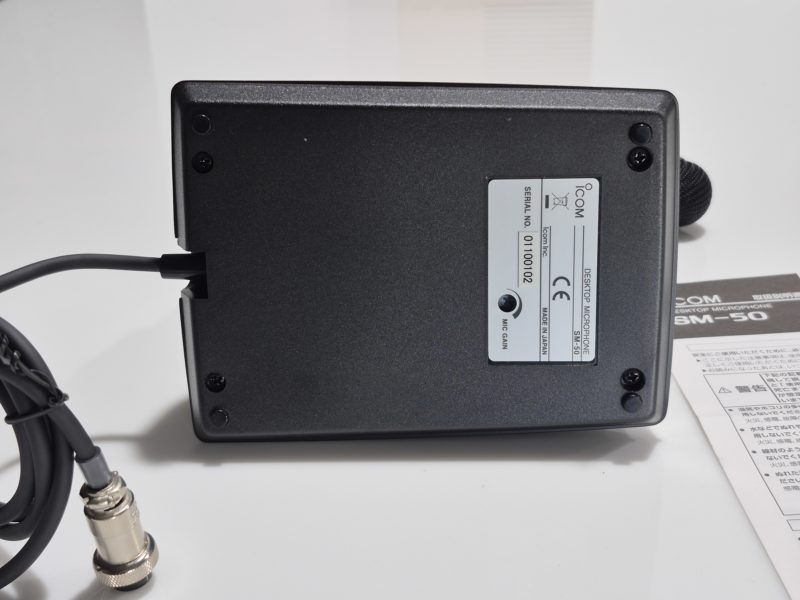

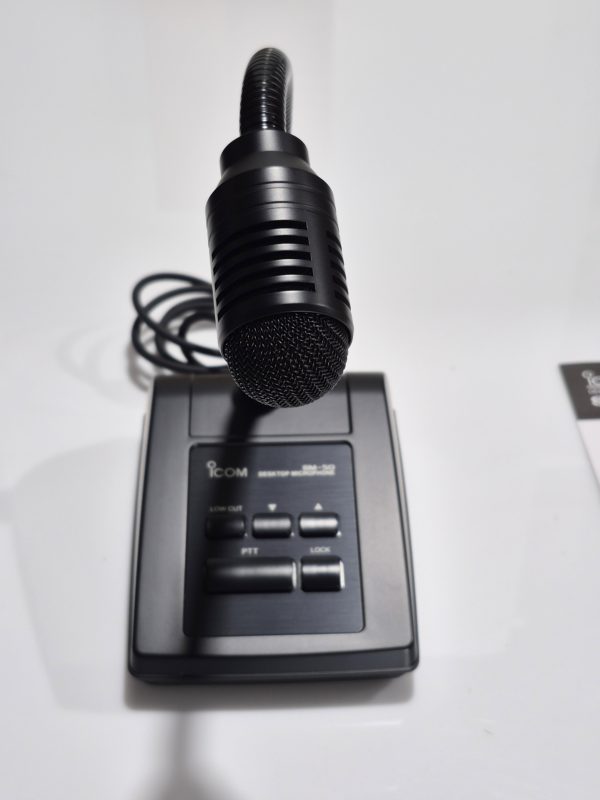

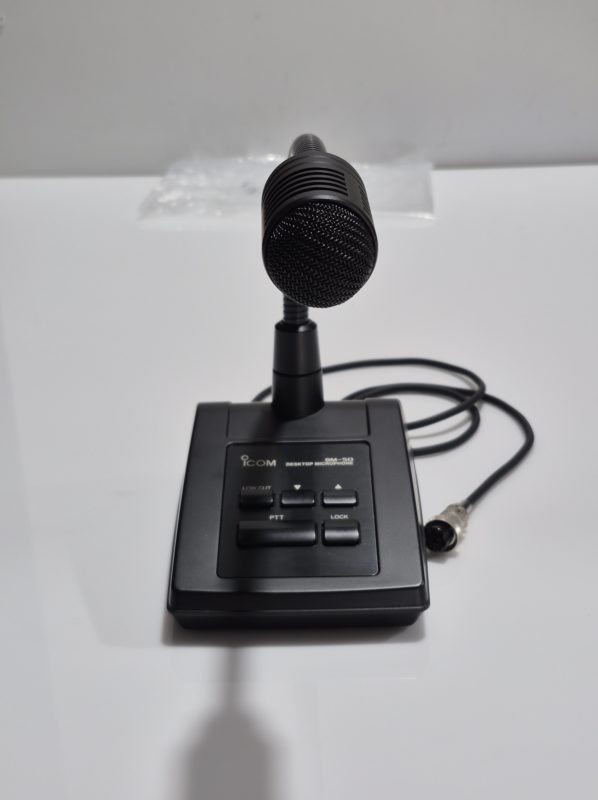

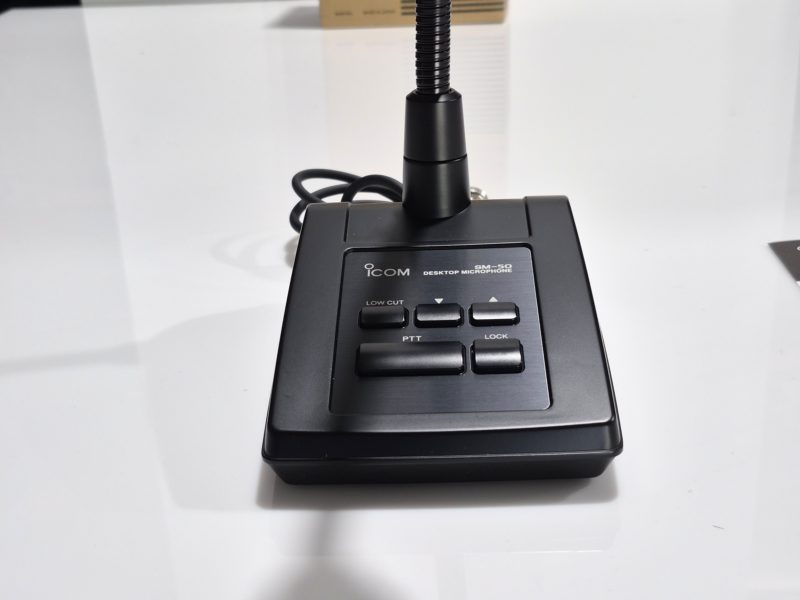

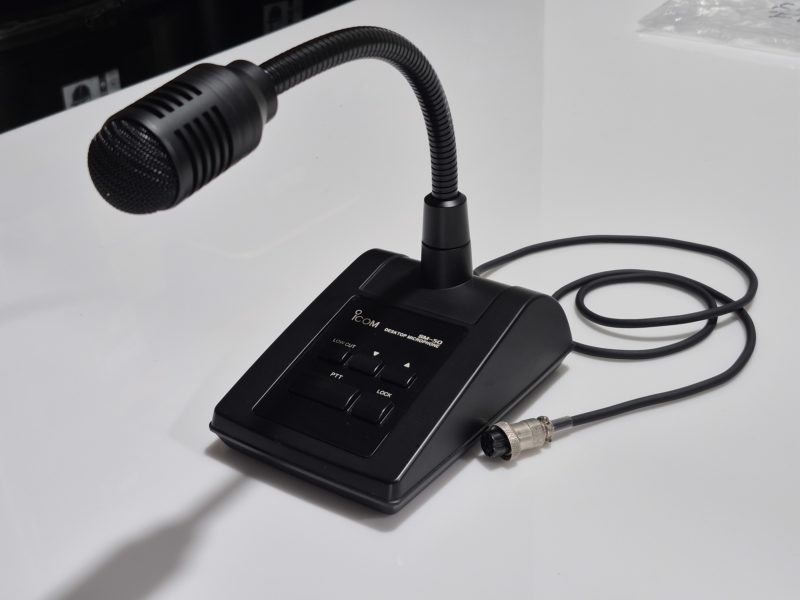

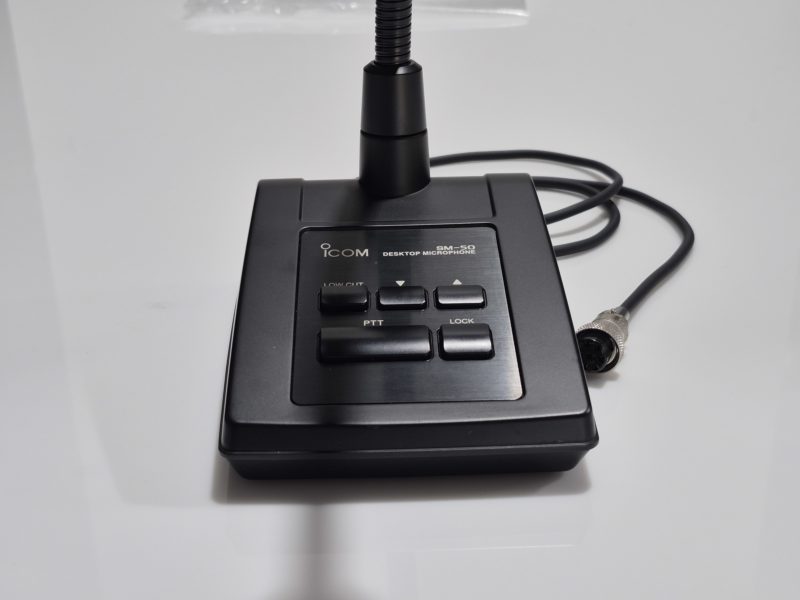

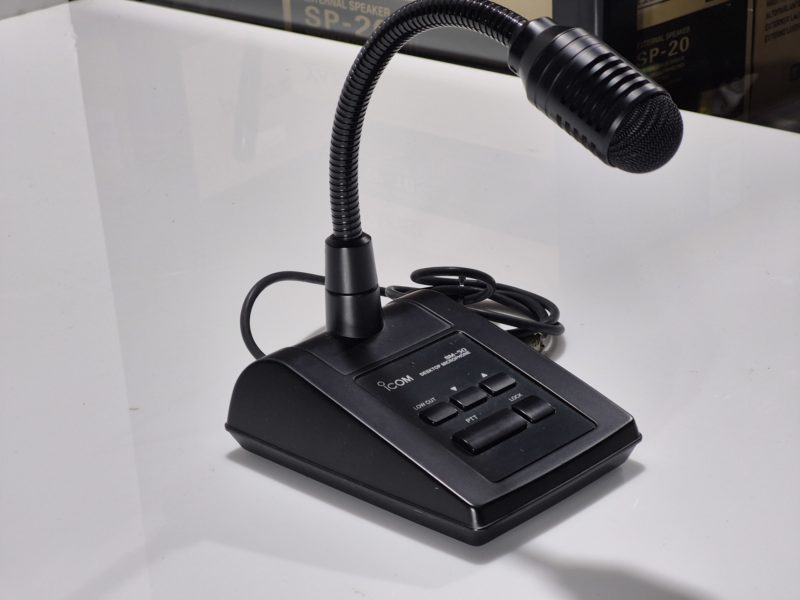

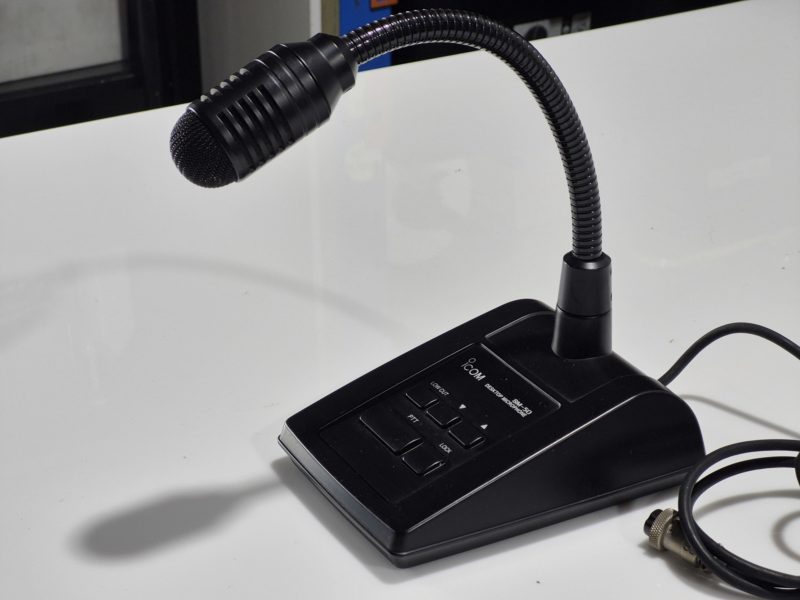

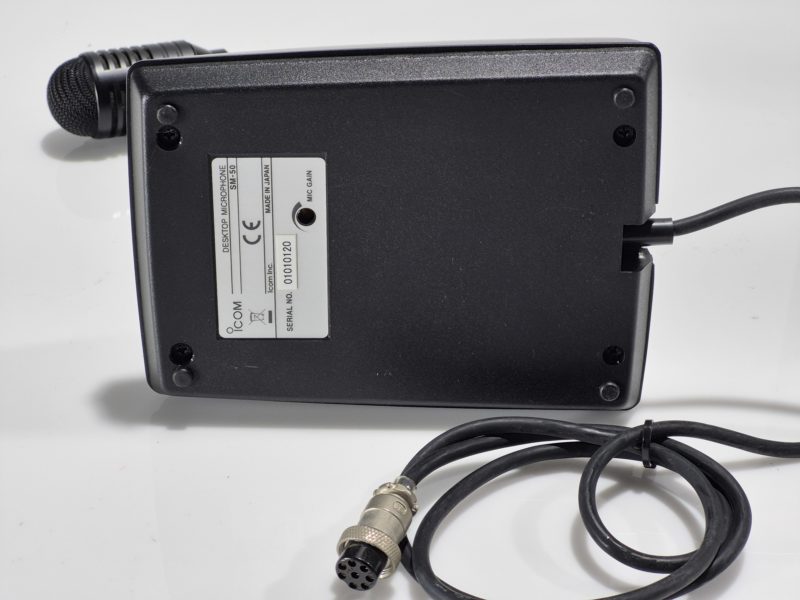

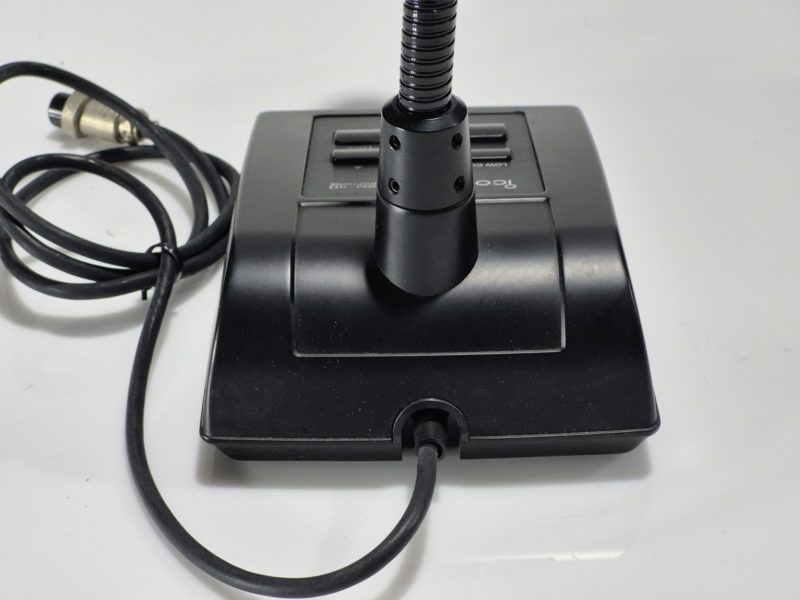

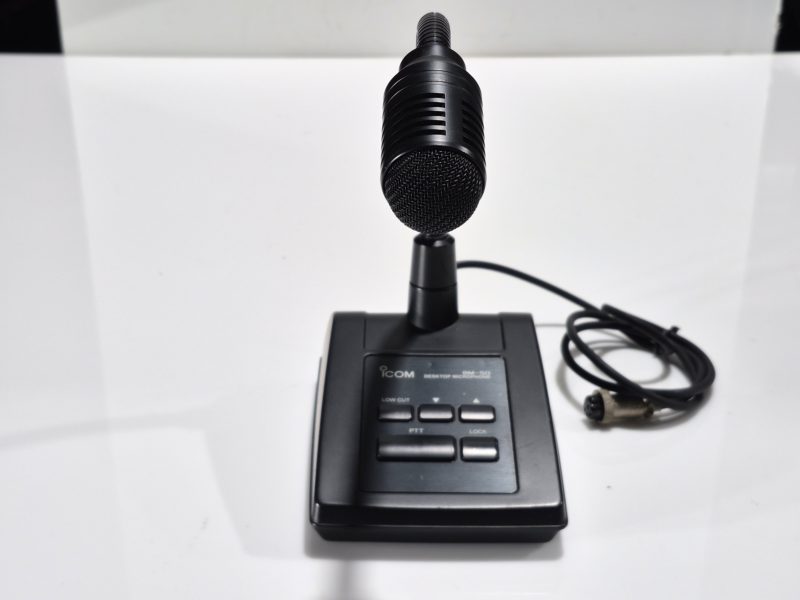

SM-50: Icom SM-50 Deluxe desk microphone, features low cut button, up/down, PTT and lock bar. The microphone is superbly finished in a very smart satin black, and has the 8 pin standard mic plug fitted. This new high performance electret base microphone from Icom is the first mic to be designed exclusively for the new breed of full DSP HF radio. Requires optional modular to 8 pin converter lead (OPC-589) to use on 7000/7100 etc.
Specifications:
Microphone Element: Dynamic
Sensitivity: -30 dB ± 4dB (1 kHz, 0 dB = 1 V/1 Pa)
Impedance: 55 Ohms ± 30% (at 1 kHz)
Power requirement: 5-10 VDC (supplied from radio)
Cable length: 39 inches (1m)
With: UP/DOWN switches
Weight: 26 oz. (730g).
Use with: IC-7000, IC-703, IC-706MKIIG, IC-718, IC-7400, IC-756PROIII, IC-7600, IC-7700, IC-7800
Use with: IC-706, 703, 7000 WITH OPC-589 Adapter
