Description

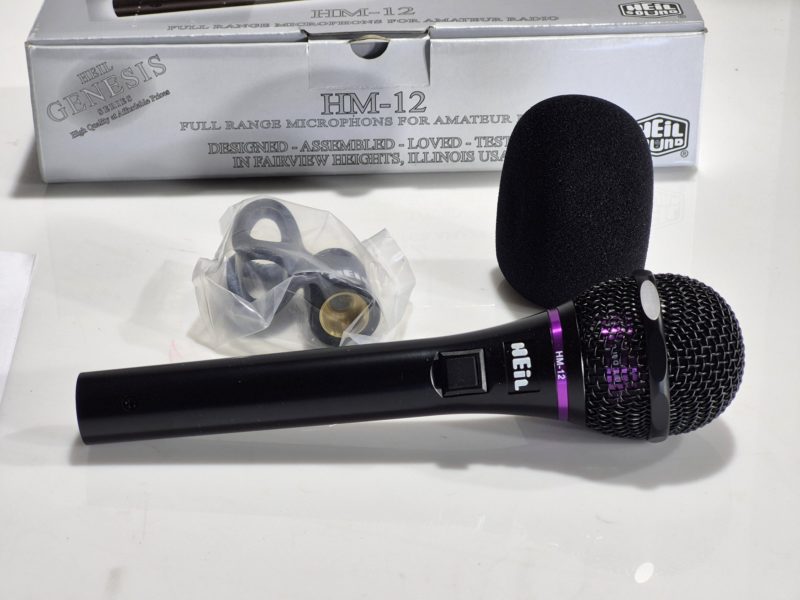

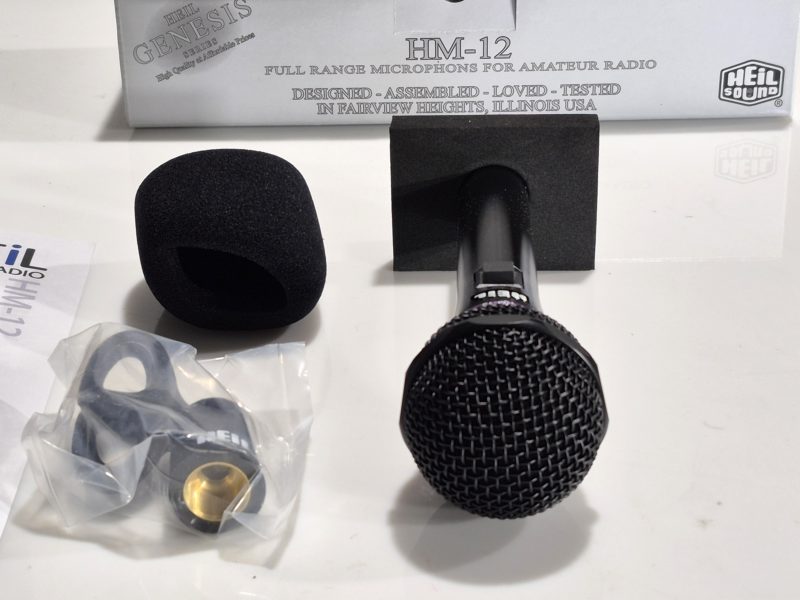

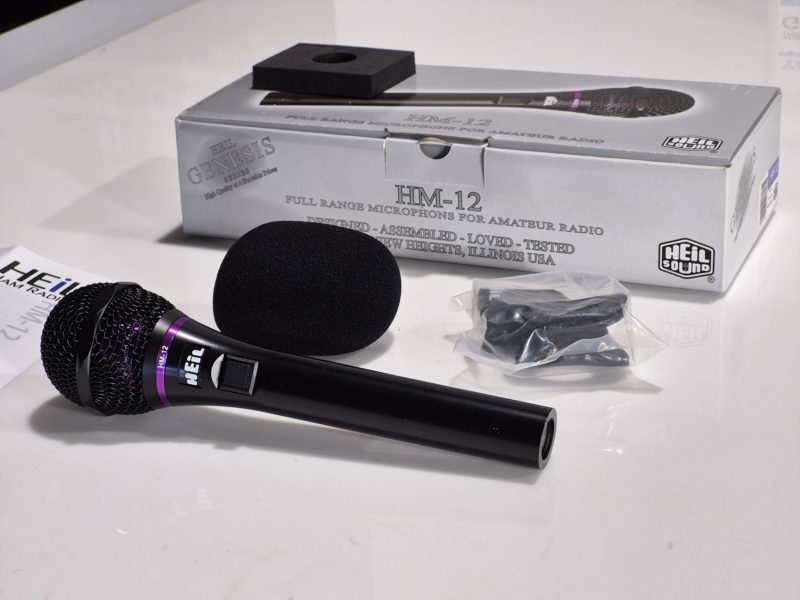

HM-12: Single element microphone, a product from the new Genesis Series, is designed to work with nearly every amateur transceiver low impedance mic input.
The traditional Heil 4 dB peak centered at 2 kHz gives the new HM-12 excellent voice articulation balanced with clean, clear low-end response for producing high quality AM, FM or SSB signals.
The ‘soft touch’ PTT switch is wired to pins 3 and 4 for transmitter control with the microphone signal fed to pins 1 and 2 of the 4 pin XLR. The HM -12 uses the HEIL CC-1 Connecting Cables.
Microphone element type: Dynamic.

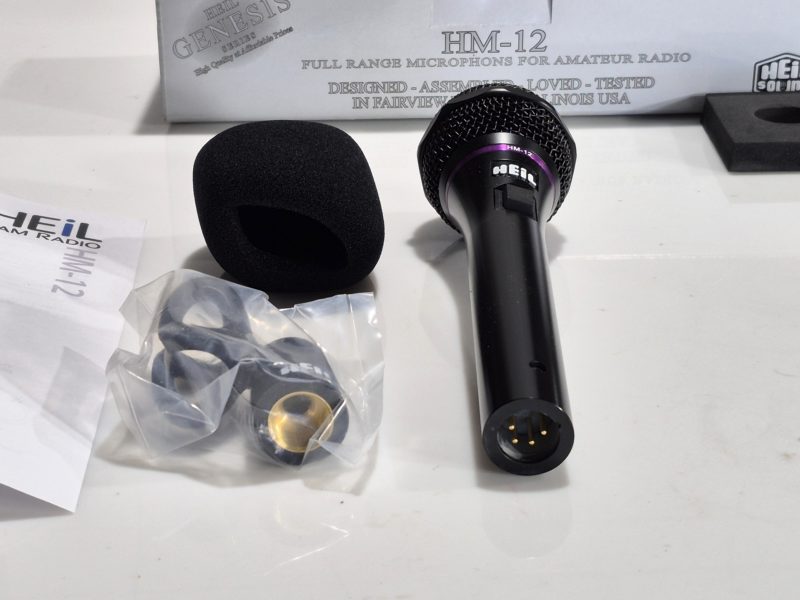

Microphone connector type: 4-pin XLR.
The Heil HM–12 exhibits a very natural audio response from 80Hz – 14 kHz.
