Description

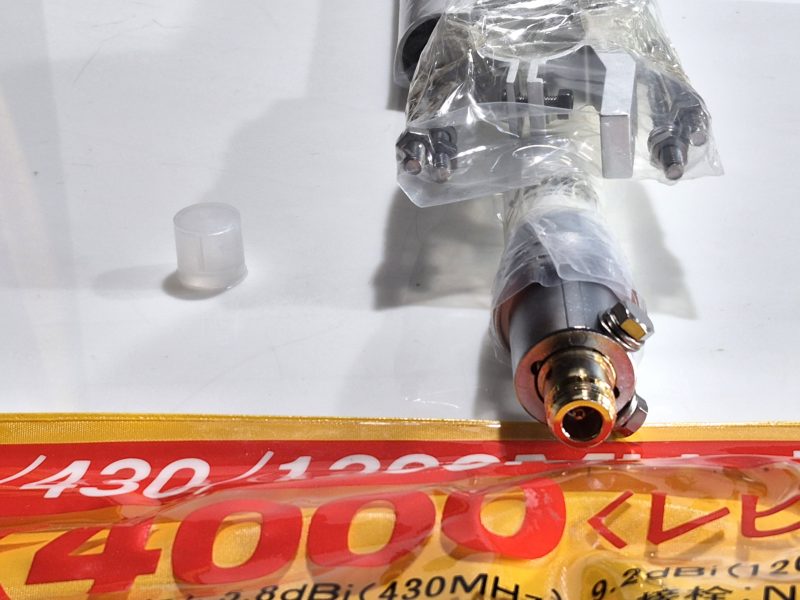

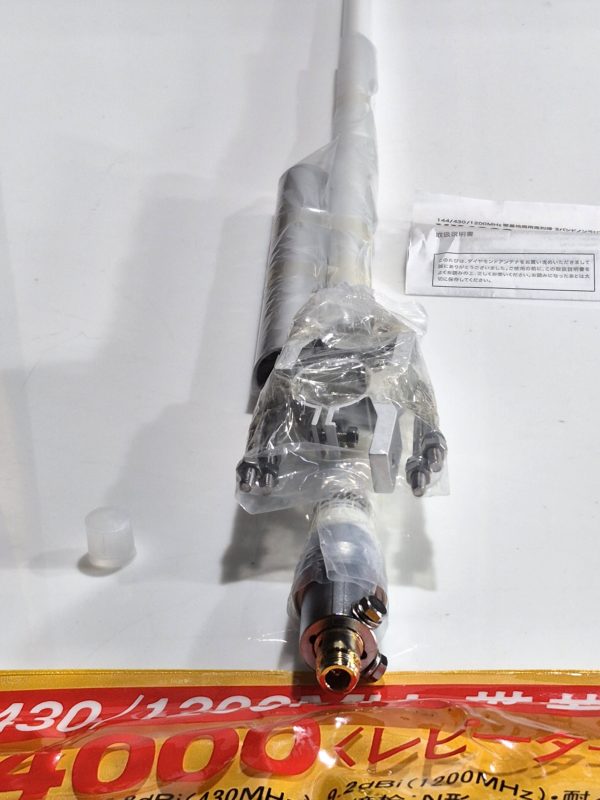

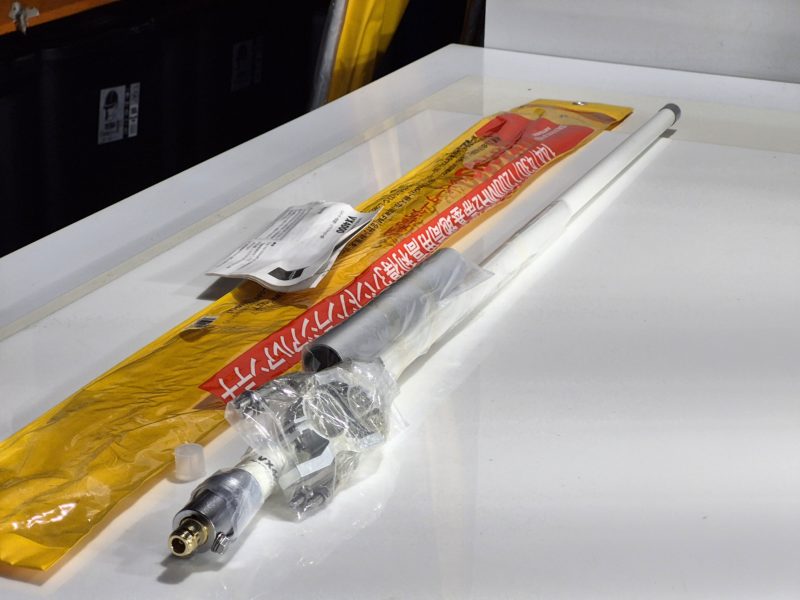

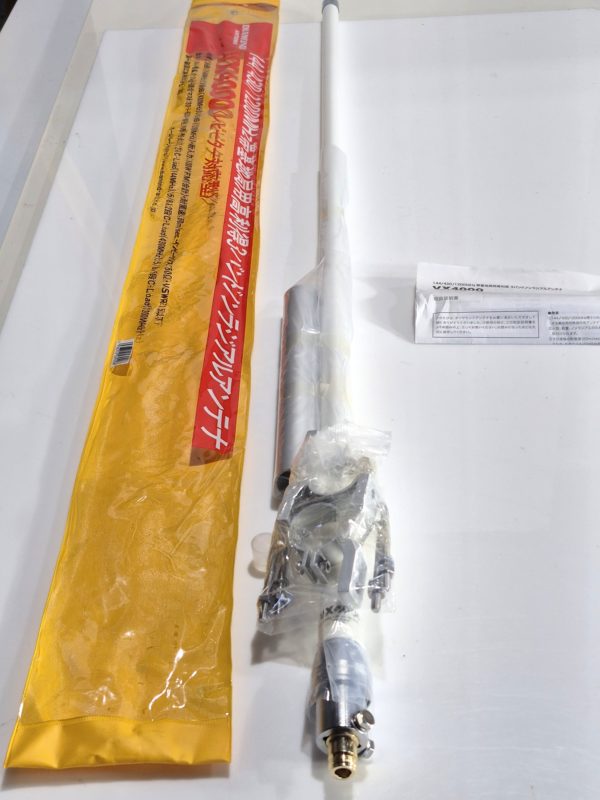

VX-4000N: The Diamond VX-4000N is a solid ground plane antenna without radials for 2m / 70cm / 23cm. The antenna is made of fiberglass, the base is made of anodized cast aluminum. The antenna is mounted using the supplied standpipe, which like the clamps is made of aluminum. Stainless steel screws and brackets are also included.
Specifications:
Frequency: 144/430/1200MHz (2m/70cm/23cm)
Gain:2.6dBi(144MHz),5.8dBi(430MHz),9.2dBi(1200MHz)
Max. power rating: 100W FM(Total)
Impedance:50 Ohms
VSWR: Less than 1.5:1
Rated wind velocity: 60m/sec.
Mast diameter accepted: 30mm to 62mm
Connector: N socket
Type:1/2wave C-Load radialless (144MHz),2×5/8 wave C-Load radialless (430MHz),5×5/8wave C-Load radialless (1200MHz),FRP outer shell
Length:1.3m
Weight:0.7kg
