Description

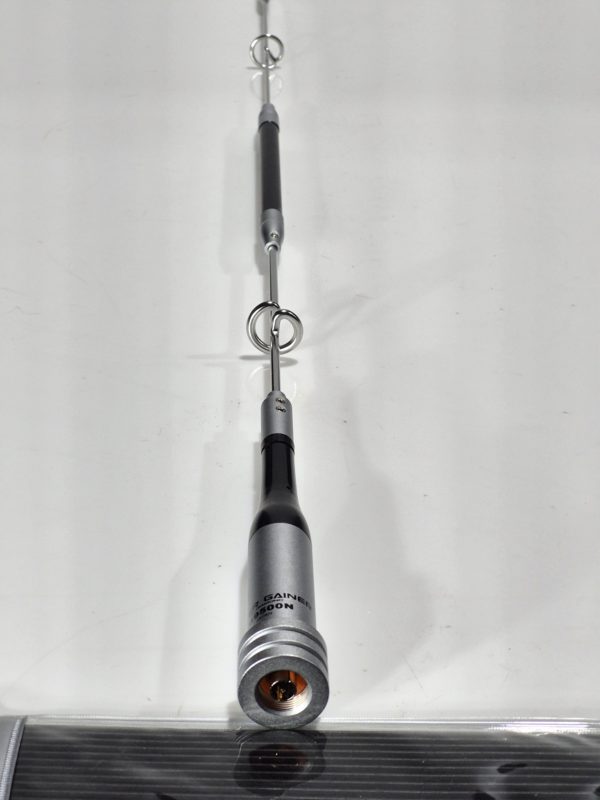

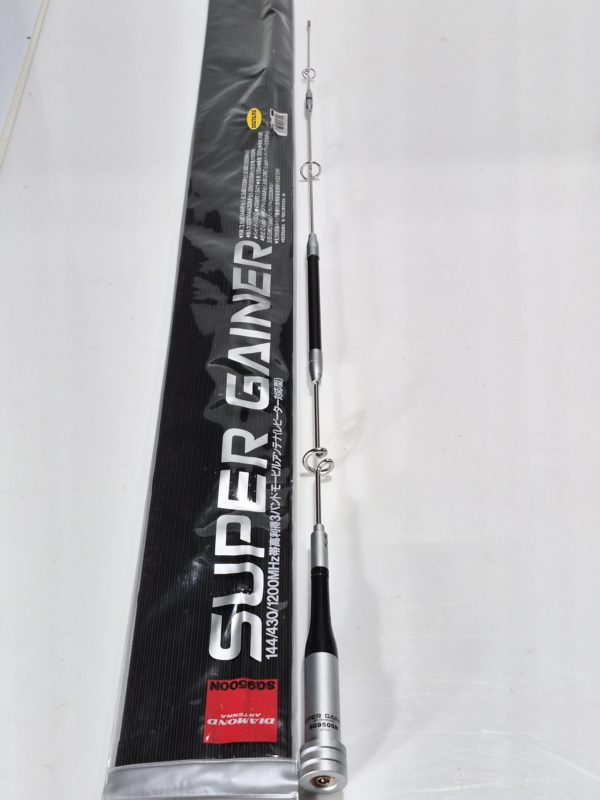

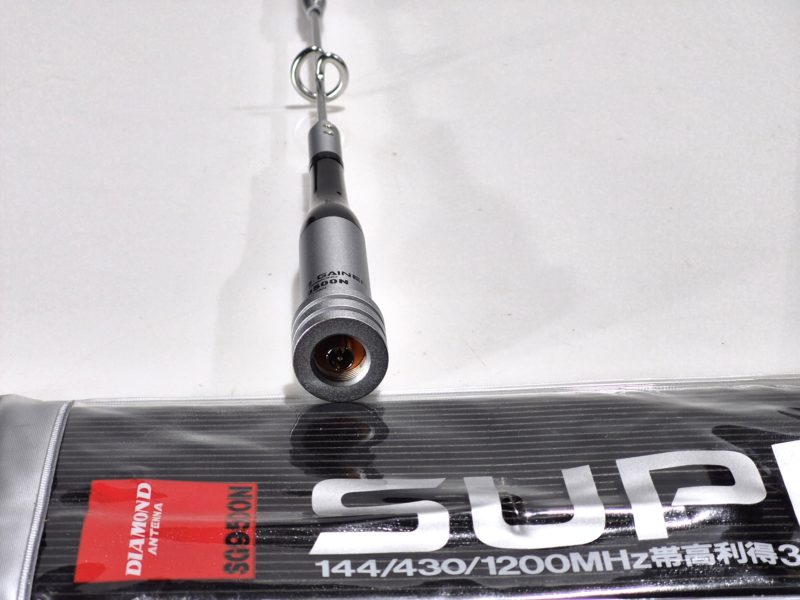

SG-9500N With an impressive frequency range spanning from 144 MHz to 430 MHz to an astounding 1200 MHz, this compact powerhouse ensures that no signal goes unnoticed. Crafted with precision and engineered for excellence, the Diamond SG-9500N stands tall at 1 meter in length – packing maximum power within its sleek design. Capable of handling up to a remarkable 100 Watts, it effortlessly amplifies your signals while maintaining utmost clarity and fidelity.
Specifications:
Gain: 3.15dB (144MHz), 6.3dB (430MHz), 9.7dB (1200MHz)
Max.power rating: 100W FM(144/430MHz), 50W FM(1200MHz), 100W(Total)
Impedance: 50 Ohms
VSWR: Less than 1.5:1
Connector: NP (SG9500N).
Length: 1.00m
