Description

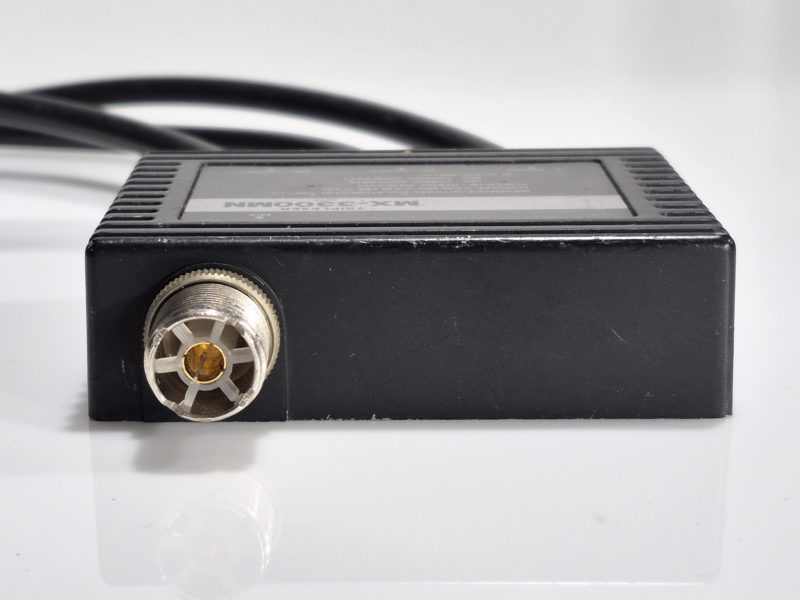

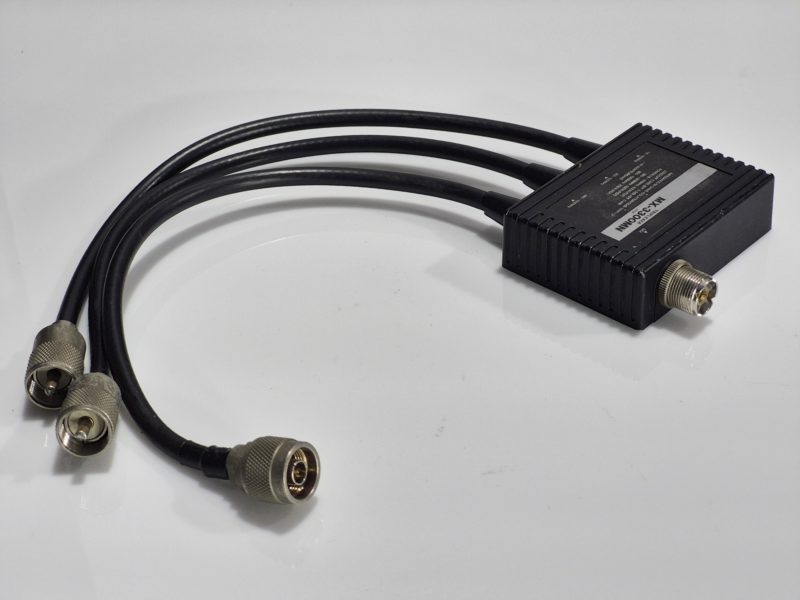

MX-3000MN: Diamond antenna triplexers are used to split or combine HF, VHF, and UHF signals.
These triplexers may be used for combining three transceivers or transceiver connectors with different band ranges onto one coax feed line.
Specifications:
Triplexer: 144 / 430 / 1200 MHz
Frequency Range: 1.6-160 MHz, 350-500 MHz, 850-1300 MHz
Power:
1.6 – 160 MHz: Max 800 Watt PEP
350 – 500 MHz: Max 500 Watt PEP
850 – 1300 MHz: Max 200 Watt PEP
Input: 1.6 – 160 MHz: Cable with UHF-Male (PL-259)
Input: 350 – 500 MHz: Cable with UHF-Male (PL-259)
Input: 850 – 1300 MHz: Cable with N-Male
Mix: UHF-Female (SO-239)
Isolation: > 55 dB
Impedance: 50 Ohm
